ABL800 FLEX Operator's Manual 2. What Is what
Screen elements
Ready screen
Operation and management of the ABL800 FLEX analyzers is performed via a
touch screen. Almost all commands to the analyzer come from the touch of a
button or area on the screen.
The touch screen is divided into three sections:
Top section
Center section
Bottom section

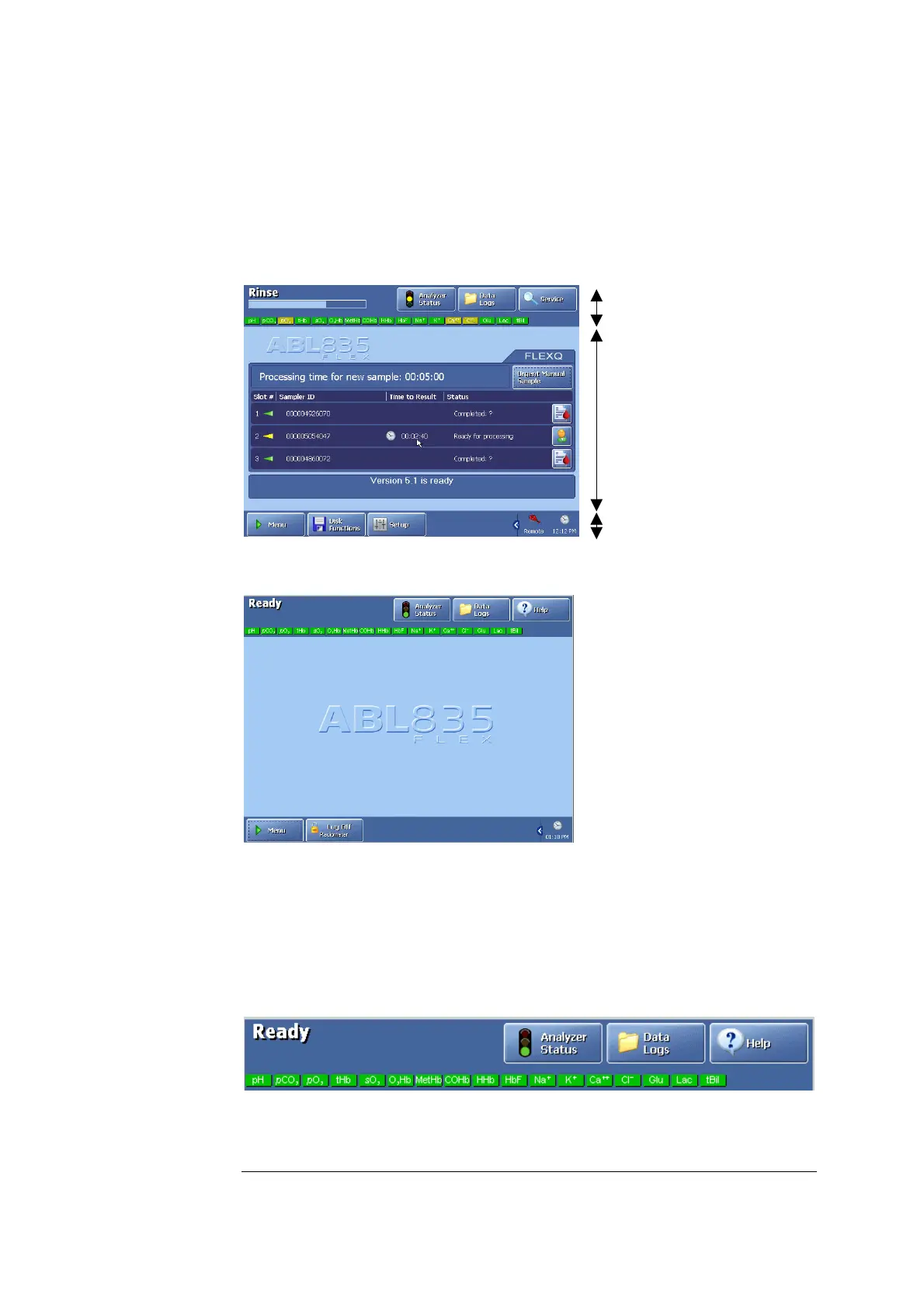

For the analyzers without the FLEXQ module, the Ready screen looks as follows:
The Ready screen appears automatically if the touch screen remains idle for more
than 3 minutes. The screen intensity reduces by 50 % when the analyzer is not
used.
The status bar varies slightly, according to which screen you are in and the status
of the analyzer.
Top section
Example:
The status describes the current task of the analyzer (e.g. calibration, measurement,
etc.) or its status (e.g. ready for use, on hold, etc.).
