1. Getting Started

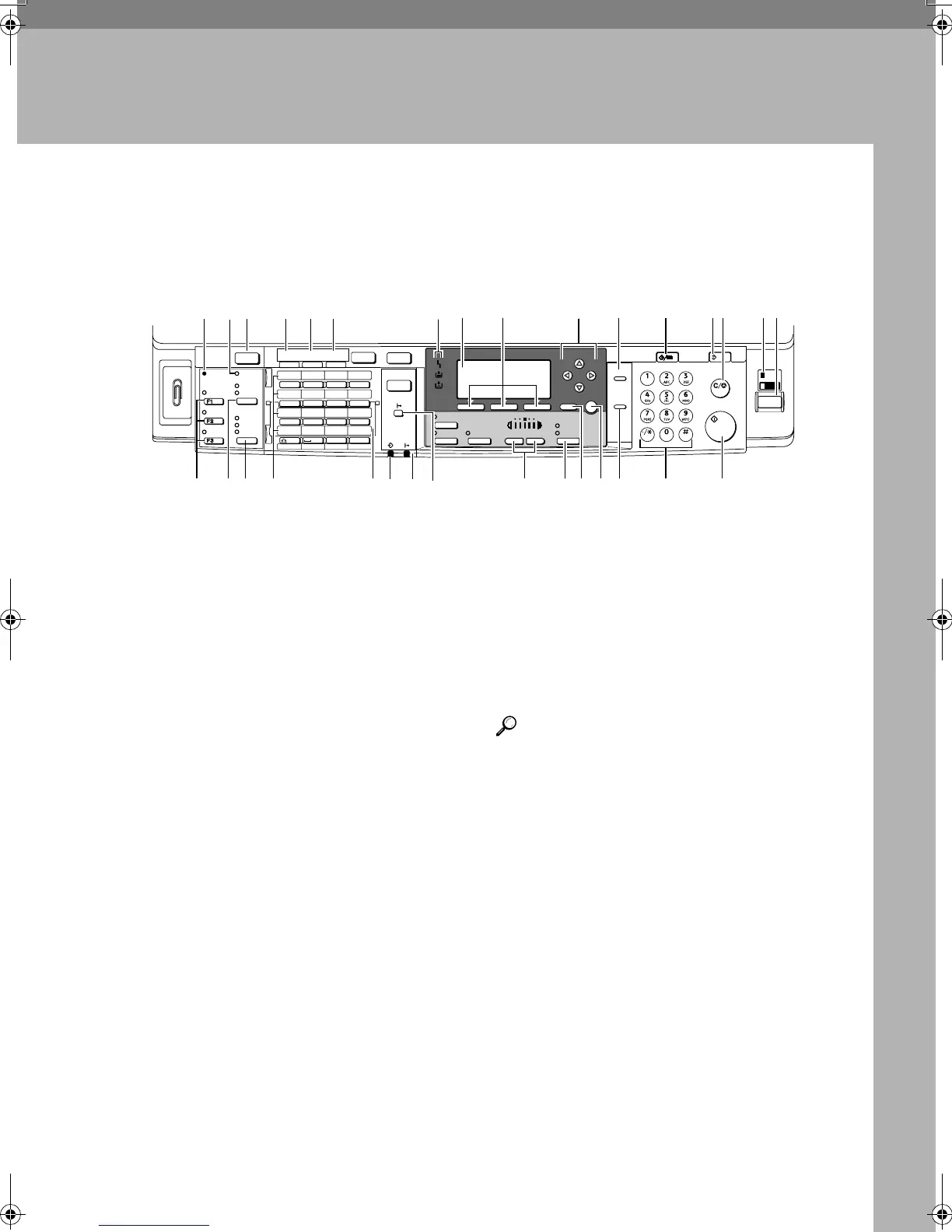

Control Panel
The illustration shows the control panel when options are installed.
1.
Communicating indicator
Lights during transmission or reception.
2.
Receive File indicator
Lights to tell you a message has been re-
ceived into memory. Blinks when a
Memory Lock file has been received. See
p.79 “Memory Lock”, Facsimile Reference
<Advanced Features> .
3. {
{{
{Facsimile}
}}
} key
Press to switch to Facsimile mode.
4.
{
{{
{Search Destination}
}}
} key
Press to search for destination from the
destination list.
5. {
{{
{Check Destination}
}}
} key
Press to check destinations which are
currently selected.
6.
{
{{
{Job Information}
}}
} key
Press to check the status of sending faxes
or e-mail.
7.
Indicators
Display errors and the machine status.
h: Error indicator. See Network Guide
and General Settings Guide.
B: Load Paper indicator. See Copy Refer-
ence.
D: Add Toner indicator. See Copy Refer-
ence.
Reference
For more information, see General
Settings Guide.
8.
Display
Display the operation status and messag-
es.
9.
Selection keys
These keys correspond to the items on
the display. Press the corresponding key
to select the item.
10.
Scroll keys
Use to select an item.
{
{{
{U
UU
U}
}}
} key: Press to scroll upward
{
{{
{T
TT
T}
}}
} key: Press to scroll downward
{
{{
{V
VV
V}
}}
} key: Press to scroll right
{
{{
{W
WW
W}
}}
} key: Press to scroll left
On Hook Dial
On Hook Dial
Pause/
Redial
Receive File
Detail
Standard
Fine
OK
05 06 07 08
09 10 11 12
13 14 15 16
SymbolsSpaceShift
01 02 03 04
@.
_
_
ABC DEF GHI JKL
MNO PQR STU VWX
YZ
- &@.
_
Facsimile
Scanner
Printer
Copy
Combine/
Series
Duplex
Sort
Lighter Darker
Te xt
Original
On
Clear
Modes
User Tools/
Counter
Clear/Stop
Start
Main
Powe r
Job
Information
Search
Destination
Check
Destination
Immediate
Trance.
Memory
Trance.
Cancel
Commu-
nicating
Transmission
Stamp
Start Manual
Reception
Switch
RX Mode
4561 2 3 7 8 9 10 12 1314 15
2017 1819
21 25 26 27 28 30 31
1611
29222324
AAN301F
