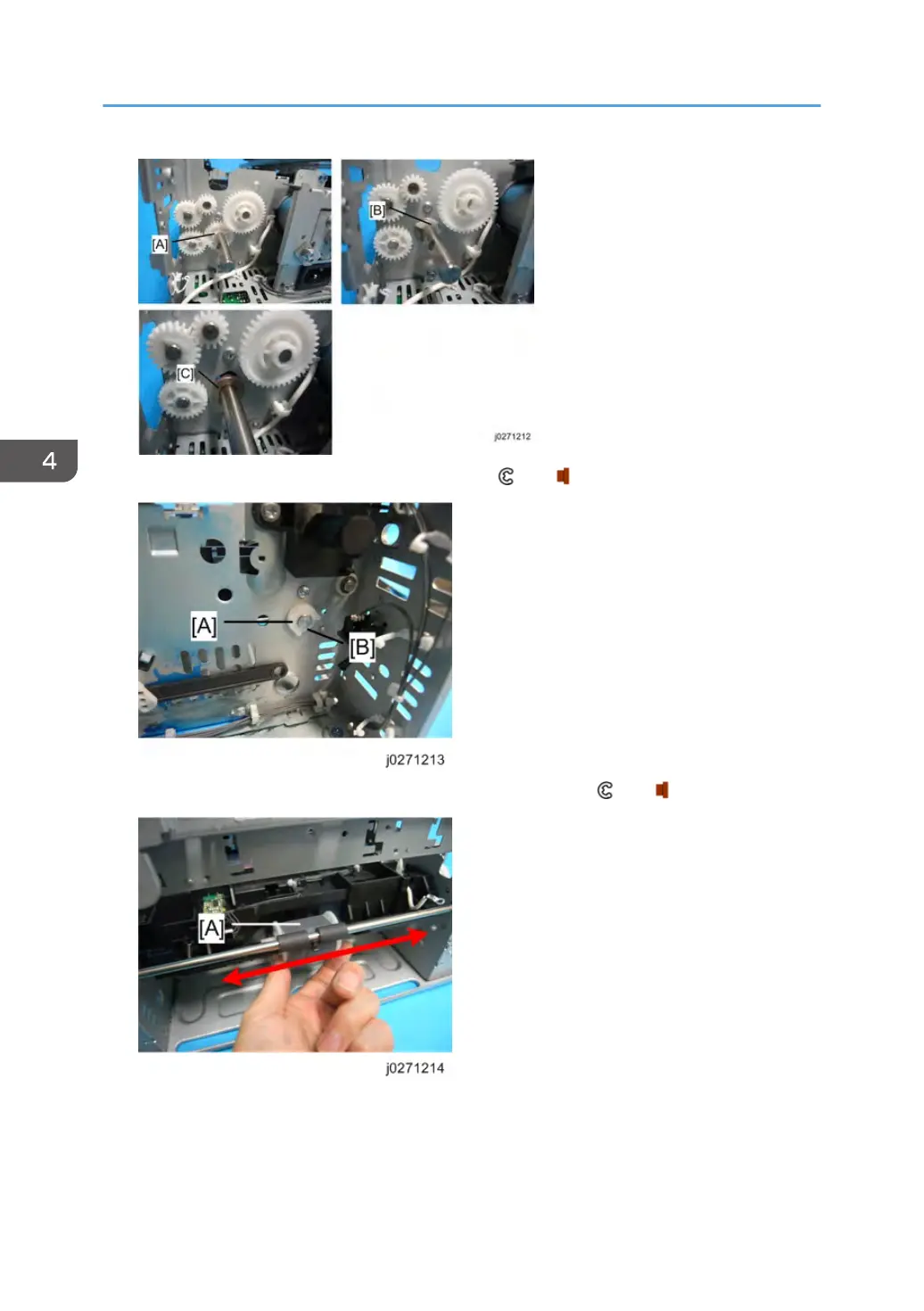

2. The gear [A], E-ring [B] and bushing [C] (Gear x 1, x 1, x 1).
3. Remove the E-ring [A] and white bushing [B] on the opposite side ( x 1, x 1).
[A]: Paper Feed Roller
4.
The rod is released from its fastened position.
4. Replacement and Adjustment
122
