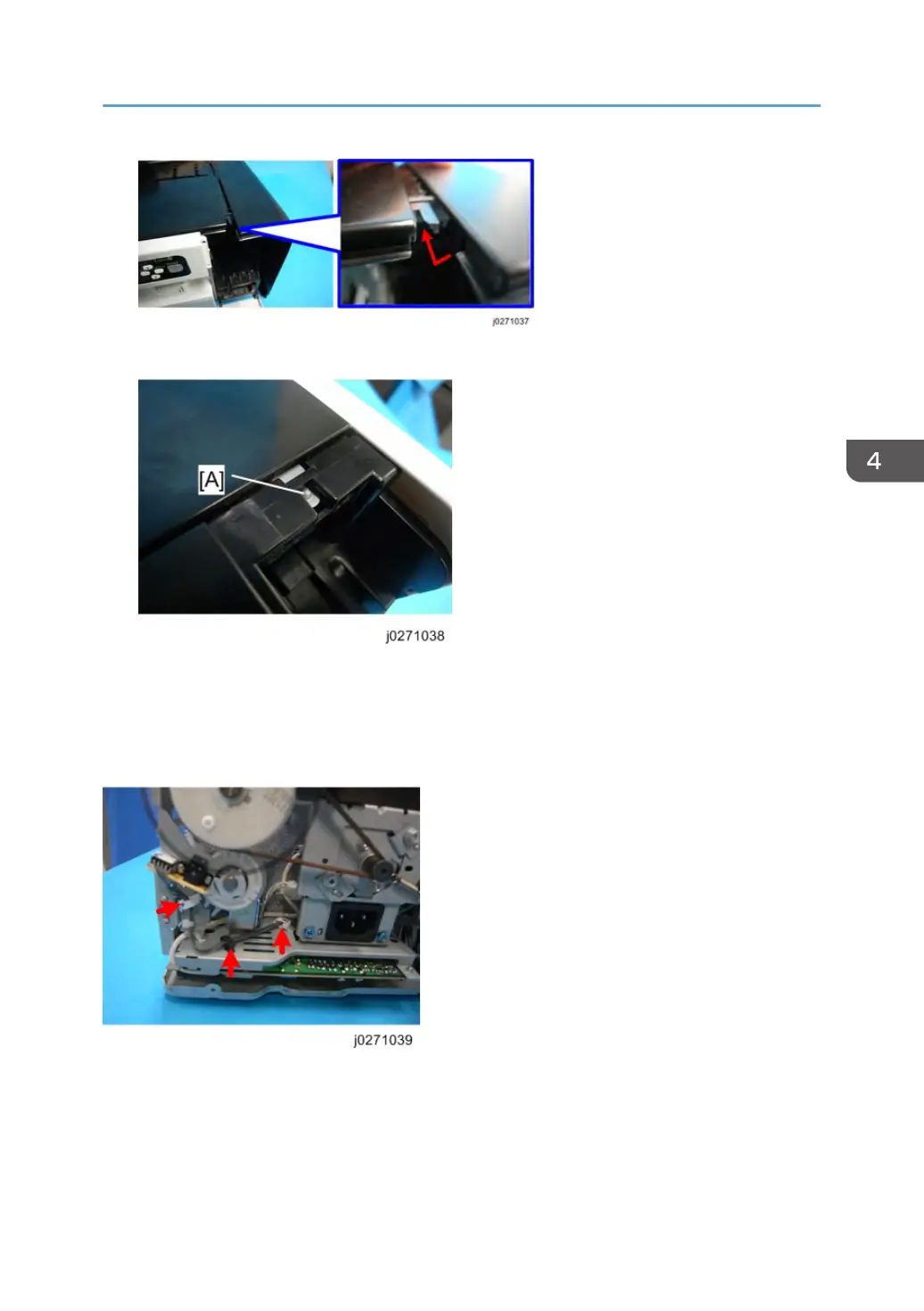

• As shown above, slide the right cover along the guide rail on the front cover to attach it.
1. Check the connection with the front cover
•
Align the slit on the right cover with the projected part [A] on the machine's frame to secure the
cover.
Left Cover
1. Check that the harness is secured with the clamps (at three points).
Common Procedures
61
