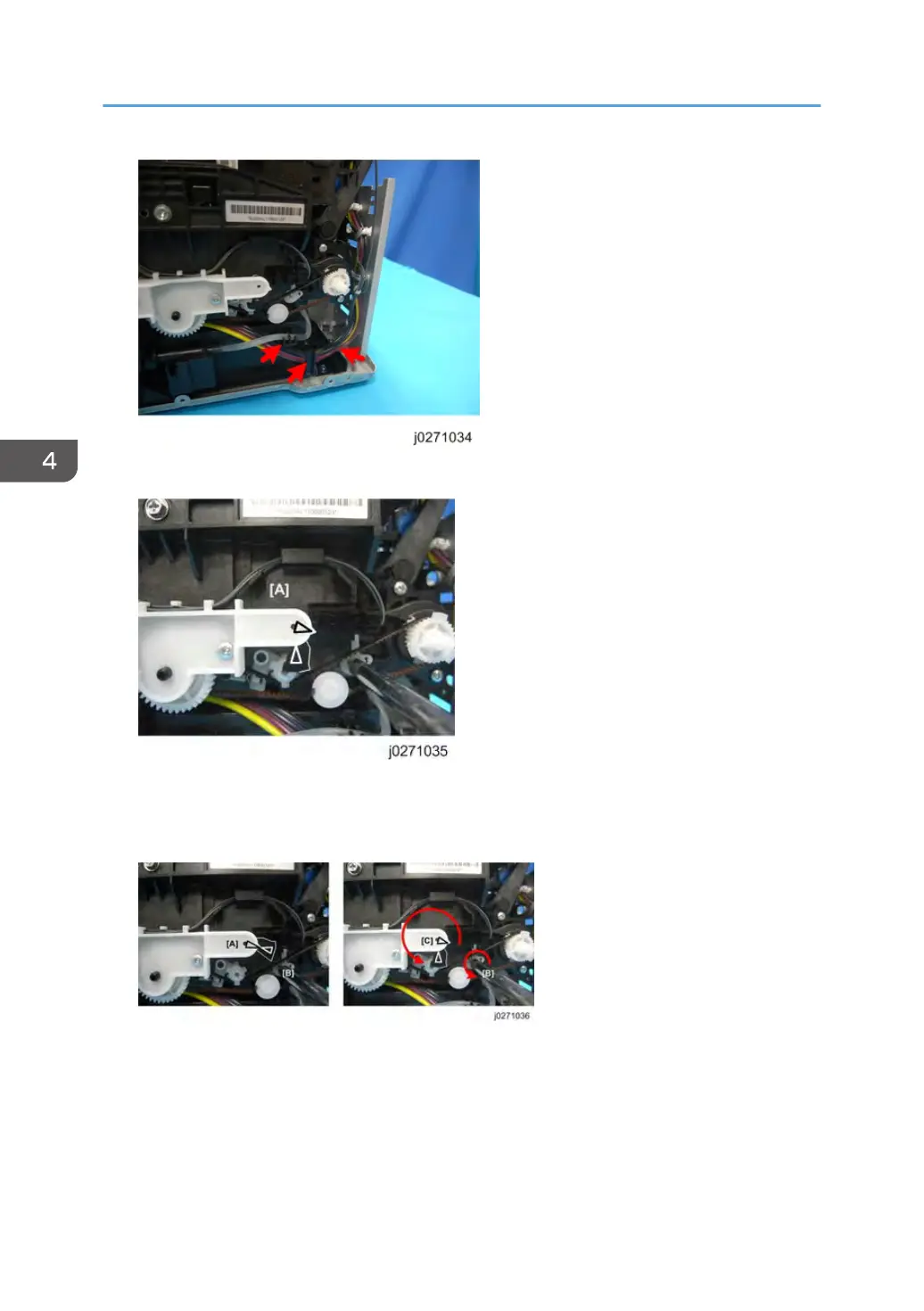

• Be sure to secure the ink tube with the tabs (at three points).
1. Check the maintenance unit [A].
•
If the triangles are not aligned as shown above, this means the print head is locked and ready
for operation. You can re-attach the right cover.
• If the triangles are aligned tip-to-tip as shown at [A], this means the carrier is unlocked (not
ready for operation) and can be moved manually.
•
Insert a screwdriver at [B], turn it counter-clockwise to rotate the lower triangle around until it
is at [C]. This locks the carrier for normal operation.
