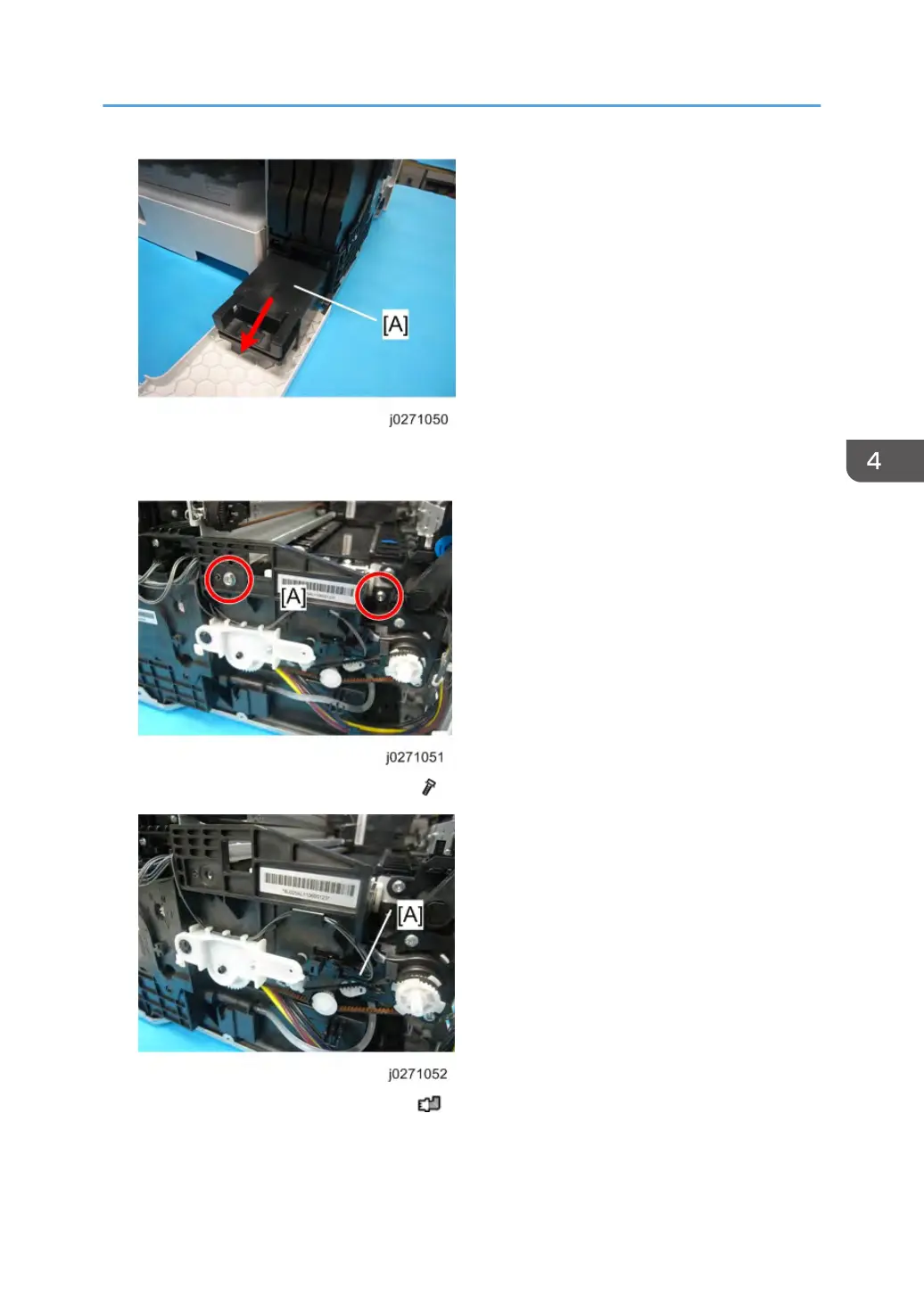

2. Open the right front cover and pull out the ink collector [A] about half-way. (You do not need to
remove it.)
3. Remove screws of maintenance unit [A] ( x 2).
4. Disconnect maintenance unit sensor [A] ( x 1).
Maintenance Unit, Right Ink Sump
