Ricoh D096 - Page 79

Scanner Unit
SM 4-17 D096
Replacement
and
Adjustment
- Adjusting the Second Scanner Contact Points -
1. ADF or platen cover
2. Operation panel, top rear cover (
p.4-5 "Upper Covers").
3. Exposure glass (
p.4-10 "Exposure Glass/DF Exposure Glass ")

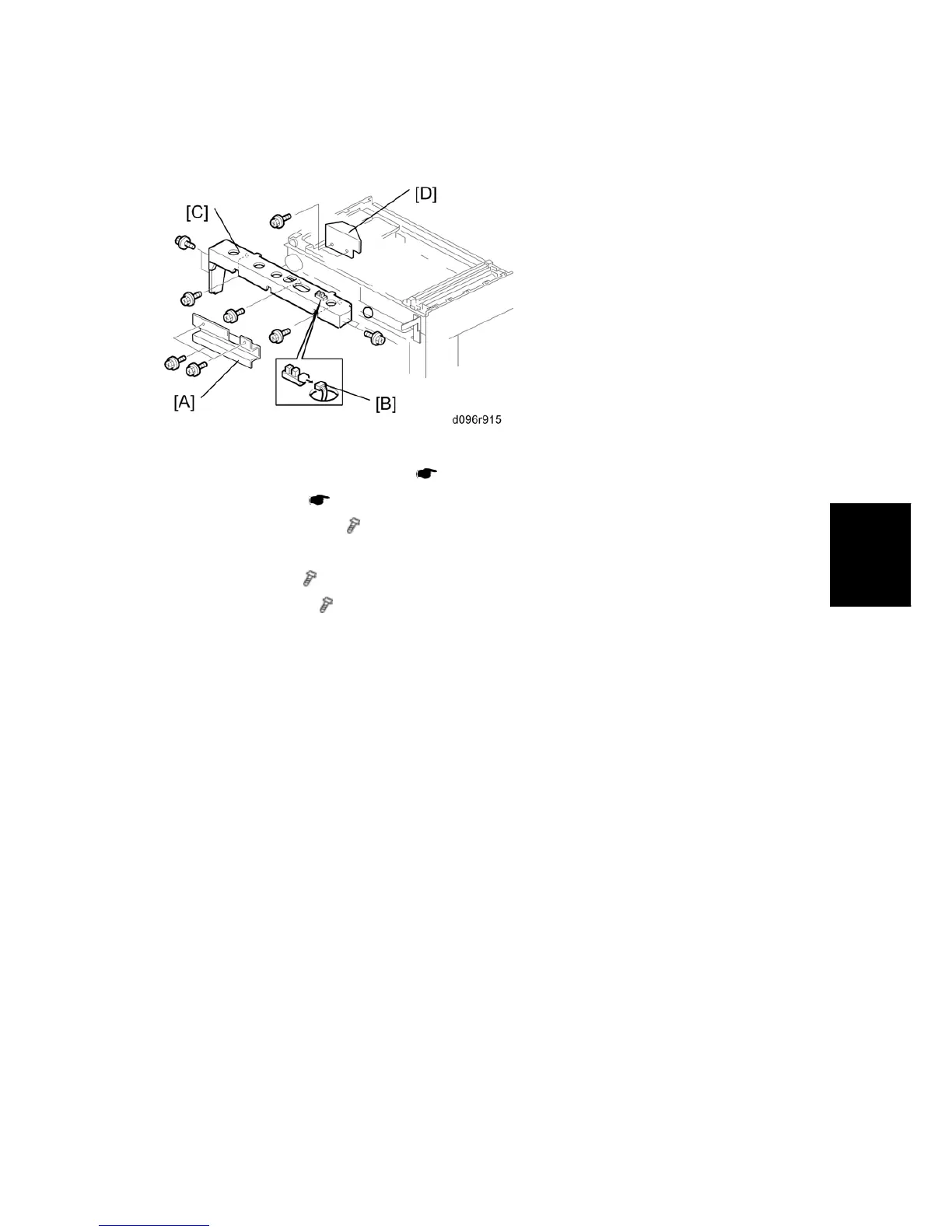

4. Controller bracket [A] (
x 3)
5. Disconnect the platen-cover-sensor connector [B].
6. Rear frame [C] (
x 7)
7. Scale bracket [D] (
x 2)
