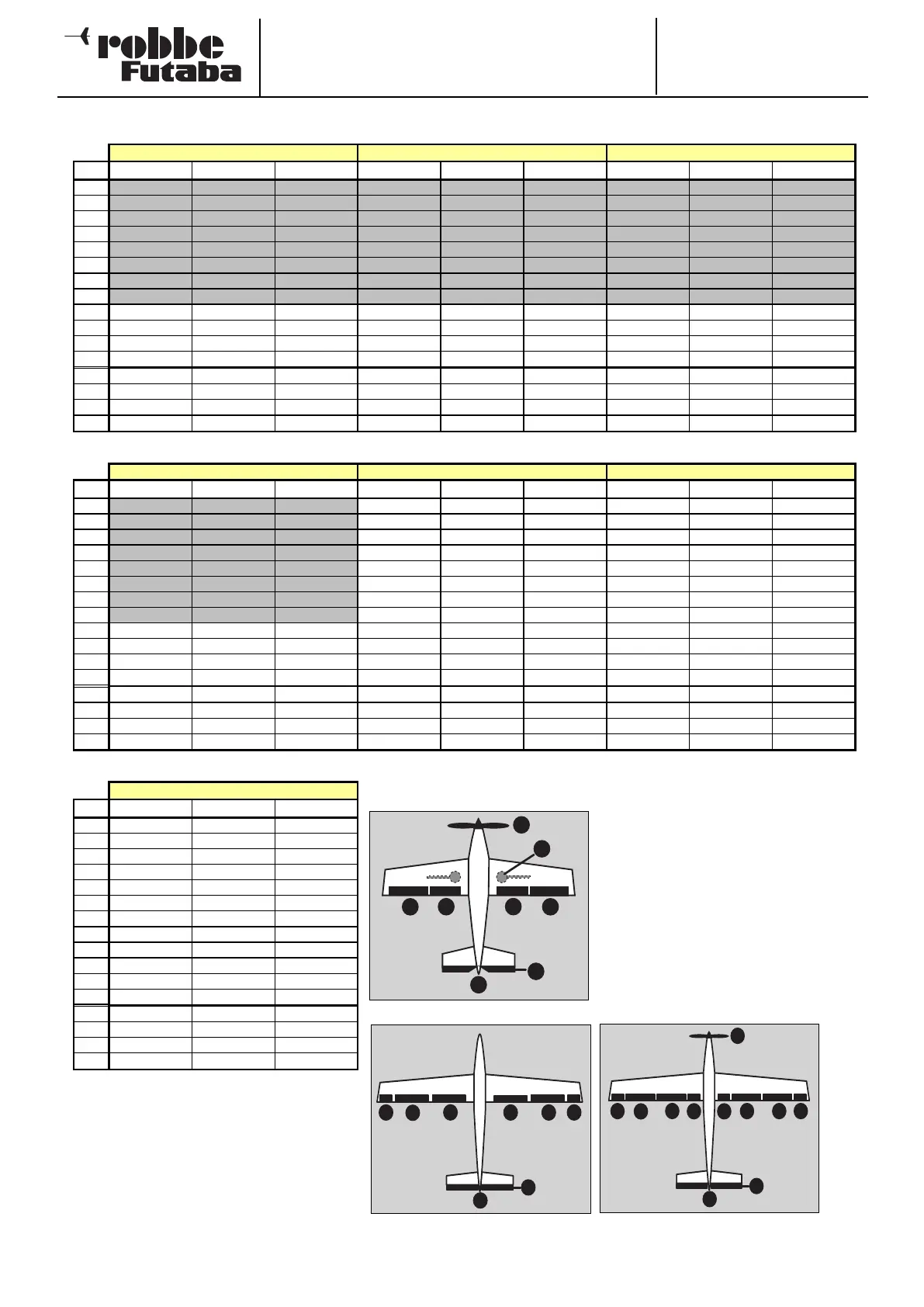

ROBBE Futaba FX-30 - 5.2 Airplanes, Motorglider and Glider with standard T-, Cross- and V-tail

Order No.
35 MHz: F 8042
40 MHz: F 8043
41 MHz: F 8044
FX-30
14
1
). Airplanes, Motorglider and Glider with standard T-, Cross- and V-tail
CH
Airplane EP-Glider Glider Airplane EP-Glider Glider Airplane EP-Glider Glider
1
Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator
2 Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder
3 Throttle Motor AUX 1 Throttle Motor AUX 1 Throttle Motor AUX 7
4 Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron
5 Gear AUX 7 AUX 8 Aileron 2 Aileron 2 Aileron 2 Aileron 2 Aileron 2 Aileron 2
6
Airbrake Airbrake Airbrake Gear AUX 7 AUX 7 Flap Flap Flap
7 AUX 6 AUX 6 AUX 6 AUX 6 AUX 6 AUX 6 Gear AUX 6 AUX 6
8 AUX 5 AUX 5 AUX 5 AUX 5 AUX 5 AUX 5 AUX 5 AUX 5 AUX 5
9 AUX 4 AUX 4 AUX 4 AUX 4 AUX 4 AUX 4 AUX 4 AUX 4 AUX 4
10 AUX 3 AUX 3 AUX 3 AUX 3 AUX 3 AUX 3 AUX 3 AUX 3 AUX 3
11 AUX 2 AUX 2 AUX 2 AUX 2 AUX 2 AUX 2 AUX 2 AUX 2 AUX 2
12 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1
VC1 AUX 1 AUX 1 AUX 1 Camber Camber Camber Camber Camber Camber
VC2 AUX 1 AUX 1 AUX 1 AUX 1 Butterfly Butterfly AUX 1 Butterfly Butterfly
VC3 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1
V
C4 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1
CH
Airplane EP-Glider Glider Airplane EP-Glider Glider Airplane EP-Glider Glider
1 Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator
2 Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder
3 Throttle Motor AUX 6 Throttle Motor AUX 4 Throttle Motor AUX 4
4 Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron
5 Aileron 2 Aileron 2 Aileron 2 Aileron 2 Aileron 2 Aileron 2 Aileron 2 Aileron 2 Aileron 2
6 Gear AUX 5 AUX 5 Gear AUX 3 AUX 3 Gear AUX 3 AUX 3
7 Flap Flap Flap Flap Flap Flap Aileron 3 Aileron 3 Aileron 3
8 Flap 2 Flap 2 Flap 2 Flap 2 Flap 2 Flap 2 Aileron 4 Aileron 4 Aileron 4
9 AUX 4 AUX 4 AUX 4 Flap 3 Flap 3 Flap 3 Flap Flap Flap
10 AUX 3 AUX 3 AUX 3 Flap 4 Flap 4 Flap 4 Flap 2 Flap 2 Flap 2
11 AUX 2 AUX 2 AUX 2 AUX 2 AUX 2 AUX 2 AUX 2 AUX 2 AUX 2
12 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1
VC1 Camber Camber Camber Camber Camber Camber Camber Camber Camber
VC2 AUX 1 Butterfly Butterfly AUX 1 Butterfly Butterfly AUX 1 Butterfly Butterfly
VC3 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1
VC4 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1 AUX 1
CH
Airplane EP-Glider Glider
1 Elevator Elevator Elevator
2 Rudder Rudder Rudder
3 Throttle Motor AUX 2
4 Aileron Aileron Aileron
5 Aileron 2 Aileron 2 Aileron 2
6 Gear AUX 1 AUX 1
7 Aileron 3 Aileron 3 Aileron 3
8 Aileron 4 Aileron 4 Aileron 4
9 Flap Flap Flap
10 Flap 2 Flap 2 Flap 2
11 Flap 3 Flap 3 Flap 3
12 Flap 4 Flap 4 Flap 4
VC1 Camber Camber Camber
VC2 AUX 1 Butterfly Butterfly
VC3 AUX 1 AUX 1 AUX 1
VC4 AUX 1 AUX 1 AUX 1
4 Aileron+4 Flap
1 Aileron 2 Aileron 2 Aileron+1 Flap
2
Aileron+2 Flap 2 Aileron+4 Flap 4 Aileron+2 Flap
Q
Q2
4
2
1
5
7
3
6
W
8
W2
4
1
7
5
2
9
10
8
Q
Q2
W
W2
Q3
Q4
4
1
7
5
2
9
10
8
3
12
11
Q
Q2
W
W2
B2
B
Q3
Q4
NOTE!
All model types are available when twelve-
channel PCM-G3 mode is selected. If you
select FM 8-channel or PCM 1024, the num-
ber of available model types is reduced. In
this case only the model types shown with a
grey background are available.
VC 1 … 4 are virtual functions without phy-
sical receiver outputs; however, these func-
tions affect multiple servos, e.g. the Crow
(Butterfly) function.
The numbers in circles indicate the receiver output
5.2
