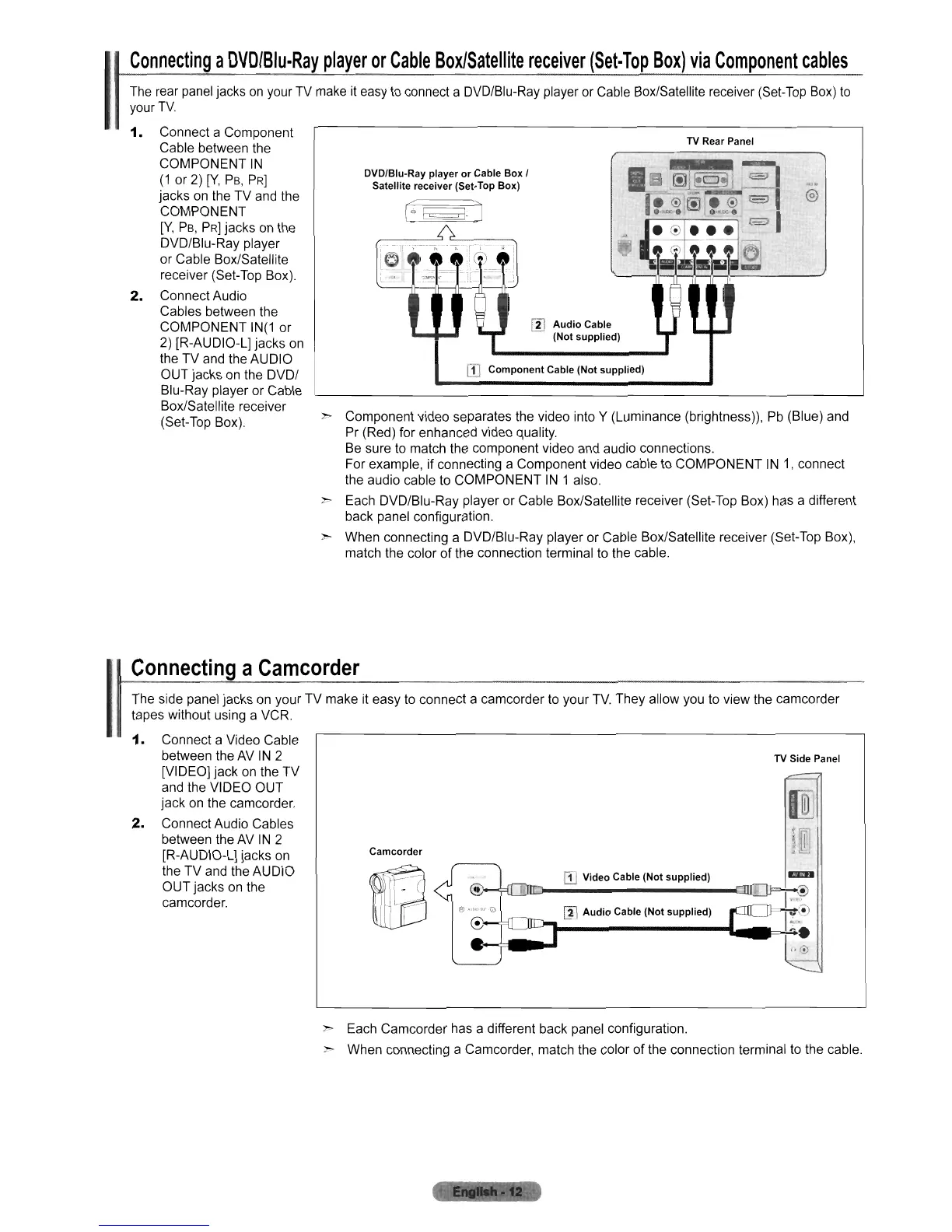

Connecting
a
DVD/Blu-Ray
player
or
Cable
Box/Satellite
receiver
(Set-Top
Box)
via
Component
cables
~ Component video separates the video into Y (Luminance (brightness)),
Pb
(Blue) and
Pr (Red) for enhanced video quality.
Be sure
to
match the component video and audio connections.
For example, if connecting a Component video cable to COMPONENT
IN
1,
connect
the audio cable
to
COMPONENT
IN
1 also.
~ Each DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) has a different
back panel configuration.
~ When connecting a DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box),
match the color
of
the connection terminal to the cable.
TV
Rear Panel
rn
Audio Cable
(Not supplied)
CD
Component Cable (Not supplied)
DVDIBlu-Ray player
or
Cable Box I
Satellite receiver (Set-Top Box)
The rear panel jacks
on
your TV make
it
easy
to
connect a DVD/Blu-Ray player or Cable Box/Satellite
receiver
(Set-Top Box)
to
your
TV.
1.
Connect a Component
Cable between the
COMPONENT
IN
(1
or 2)
[Y,
PB,
PRJ
jacks
on
the
TV
and the
COMPONENT
[Y,
PB,
PRJ
jacks on the
DVD/Blu-Ray player
or Cable Box/Satellite
receiver (Set-Top Box).
2.
Connect Audio
Cables between the
COMPONENT
IN(1
or
2) [R-AUDIO-L] jacks
on
the TV and the AUDIO
OUT jacks
on
the DVD/
Blu-Ray player or Cable
Box/Satellite receiver
(Set-Top Box).
Connecting
a
Camcorder
TV
Side Panel
[I]
Audio
Cable (Not supplied)
[Ij Video Cable (Not supplied)
Camcorder
The side panel jacks
on
your
TV
make it easy
to
connect a camcorder
to
your
TV.
They allow you
to
view the camcorder
tapes without using a VCR.
1.
Connect a Video Cable
between the AV
IN
2
[VIDEO] jack on the TV
and the VIDEO OUT
jack
on
the camcorder.
2.
Connect Audio Cables
between the
AV
IN
2
[R-AUDIO-L] jacks
on
the TV and the AUDIO
OUT jacks
on
the
camcorder.
I
~
Each Camcorder has a different back panel configuration.
> When connecting a Camcorder, match the color
of
the connection terminal to the cable.
