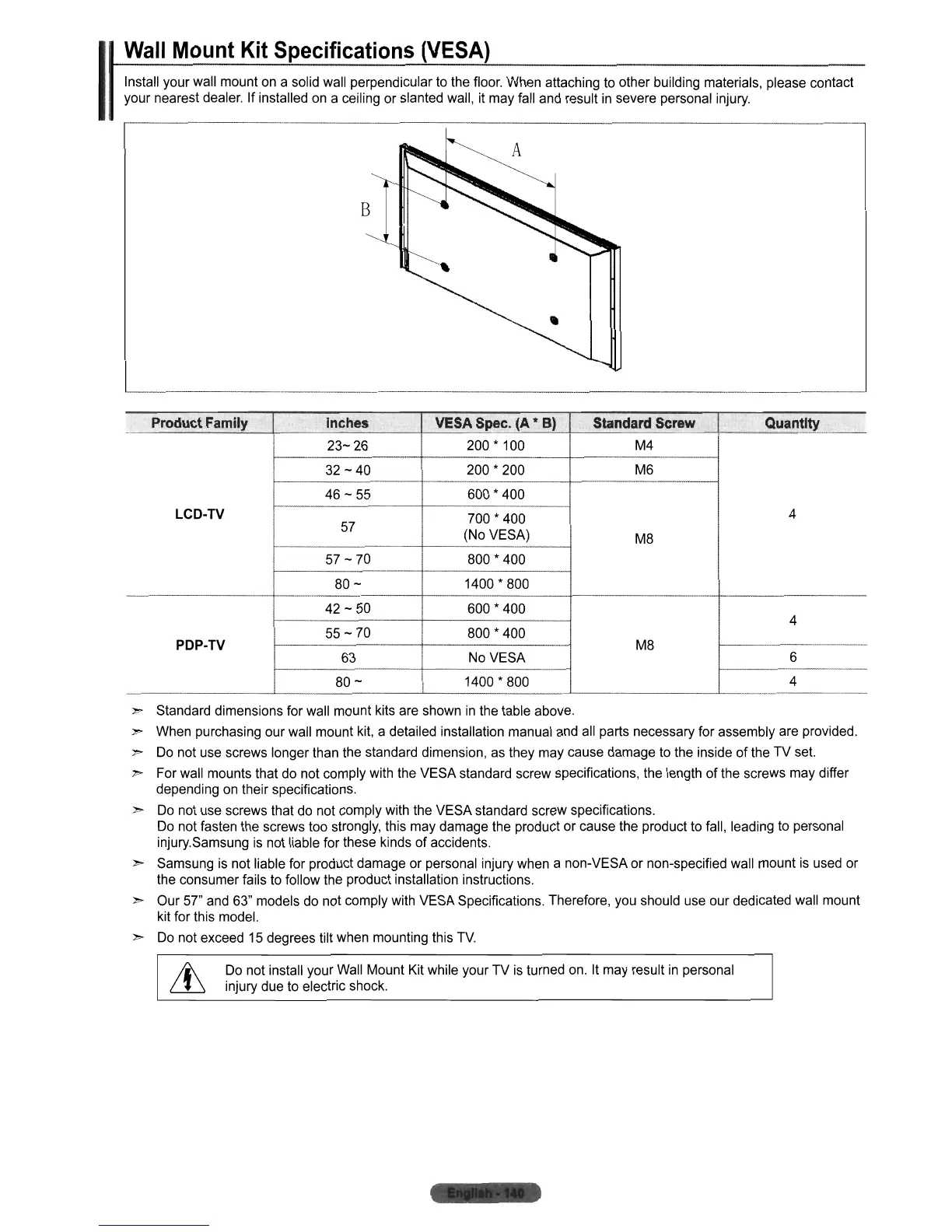

I
Wall
Mount
Kit
Specifications
(VESA)
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other bUilding materials, please contact
your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result
in
severe personal injury.
B
Product
Family
Inches
VESA
Spec.
(A
*
B)
Standard
Screw
Quan!~ty
23-
26 200 * 100 M4
32
- 40
200
* 200
M6
46 - 55
600
* 400
LCD·TV
700 * 400
4
57
(No VESA)
i
M8
57
-70
800 * 400
r--
1---
80 -
1400
* 800
42 -
50
600 * 400
4
55
-70
800 * 400
PDp·TV M8
f-----
----
63
No VESA 6
80 -
1400
* 800
4
~
Standard dimensions for wall mount kits are shown
in
the table above.
~
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
~
Do not use screws longer than the standard dimension, as they may cause damage to the inside
of
the TV set.
~
For wall mounts that do not comply with the VESA standard screw specifications, the length
of
the screws may differ
depending on their specifications.
~
Do
not use screws that do not comply with the VESA standard screw specifications.
Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal
injury.Samsung is not liable for these kinds of accidents.
~
Samsung
is
not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or
the consumer fails to follow the product installation instructions.
~
Our 57" and 63" models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount
kit for this model.
~
Do not exceed 15 degrees tilt when mounting this
TV.
Do not install your Wall Mount Kit while your TV
is
turned on. It may result
in
personal
injury due to electric shock.
