Manual Manual PCD 1 / PCD 2 Series │ Document 26 / 737 EN22 │ 2013-11-26
4
Communication interfaces
4-27
Serial interfaces: socket B(1) or B2

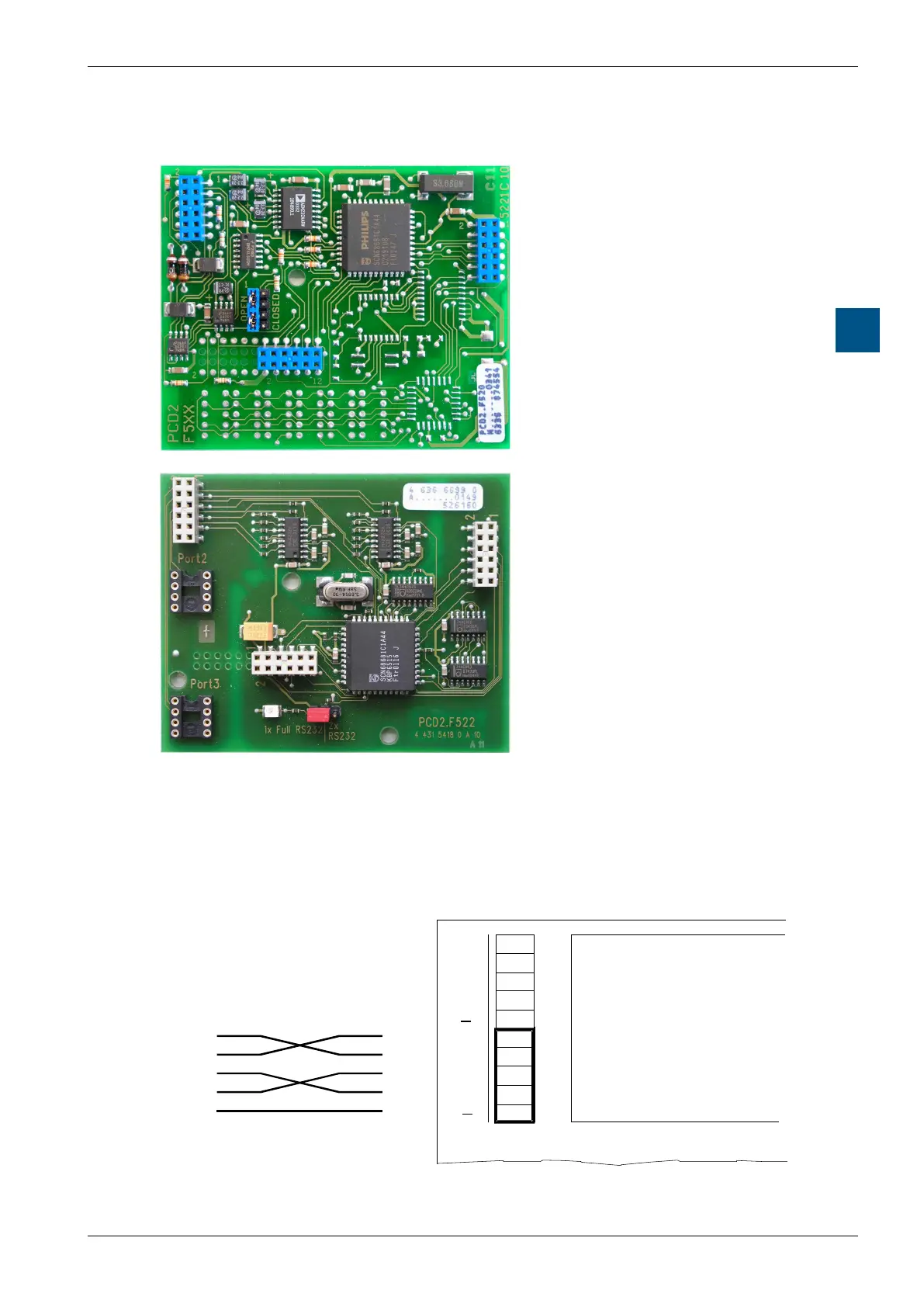

4.7.3 RS-232 with PCD2.F520 / F522
PCD2.F520:
1 x RS-232 with RTS / CTS and
1 x RS-485 electrically connected
or
1 x RS-232 with RTS / CTS and
1 x RS-422 without RTS / CTS
for socket B / B1 / B2
not suitable for modem
PCD2.F522:
choice between
2 × RS-232 with RTS / CTS
or
1 × RS-232 full with RTS / CTS,
DTR / DSR, DCD
Jumper for
2 x RS-232 or
1 x RS-232 full
suitable for modem connection for
socket B / B1 / B
The PCD2.F520 and PCD2.F522 modules are only supported by
PCD2.M120 / M150 / M170 / M480 controllers.
RS-232: socket B(1), Port #2, for peripheral device
39
38
37
36
35
34
33
32
31
30
PGND
TXD
RXD
RTS
CTS
SGND
TXD
RXD
RTS
CTS
39
38
37
36
34
33
32
31
Port # 3
Port # 2
RS-232
PCD2.F520 or
PCD2.F522 in the mode 2 x RS-232
PCD2.M170/M480
Screw
terminal block,
socket B/B1
CablePeripheral
