SBC PCD1 Series User Manual

Saia-Burgess Controls AG
Manual Manual PCD 1 / PCD 2 Series │ Document 26 / 737 EN22 │ 2013-11-26
5
Input/output (I/O) modules
5-47
Multi-functional I/O modules
5.7.1 PCD2.G400, multi-functional input/output module
Application
Combined module with digital and analogue inputs and outputs. This module is de-
signed to extend the range of uses for the Saia PCD
®
. The functions and the techni-
cal specication are based on the existing PCD2 modules.
This module cannot be installed in the PCD1.
The technical details should be taken from the descriptions of these modules.
Number and type of inputs/outputs
10 digital inputs, E0 … E9 (*addresses 0 … 9)
Technical data as for PCD2.E110, but without the option of sink operation,
i.e. no “L” connection.
6 analogue outputs, A16 … A21 (*base address 16, channels 0 … 5)
0 … 10 VDC / 8 bit; remaining tech. data as for PCD2.W400.
8 digital outputs, A32 … A39 (*addresses 32 … 39)
24 VDC / 0.5 A; remaining tech. data as for PCD2.A400.
2 analogue inputs, E48 and E49 (*base address 48, channels 0 … 1)
0 … 10 VDC / 10 bit; remaining tech. data as for PCD2.W200.
6 analogue inputs, E50 … E55 (*base address 48, channels 2 … 7)
Pt/Ni 1000 / 10 bit with data as for PCD2.W220.
Internal current consumption from +5 V bus: 10 … 65 mA
V+ bus: 35 mA

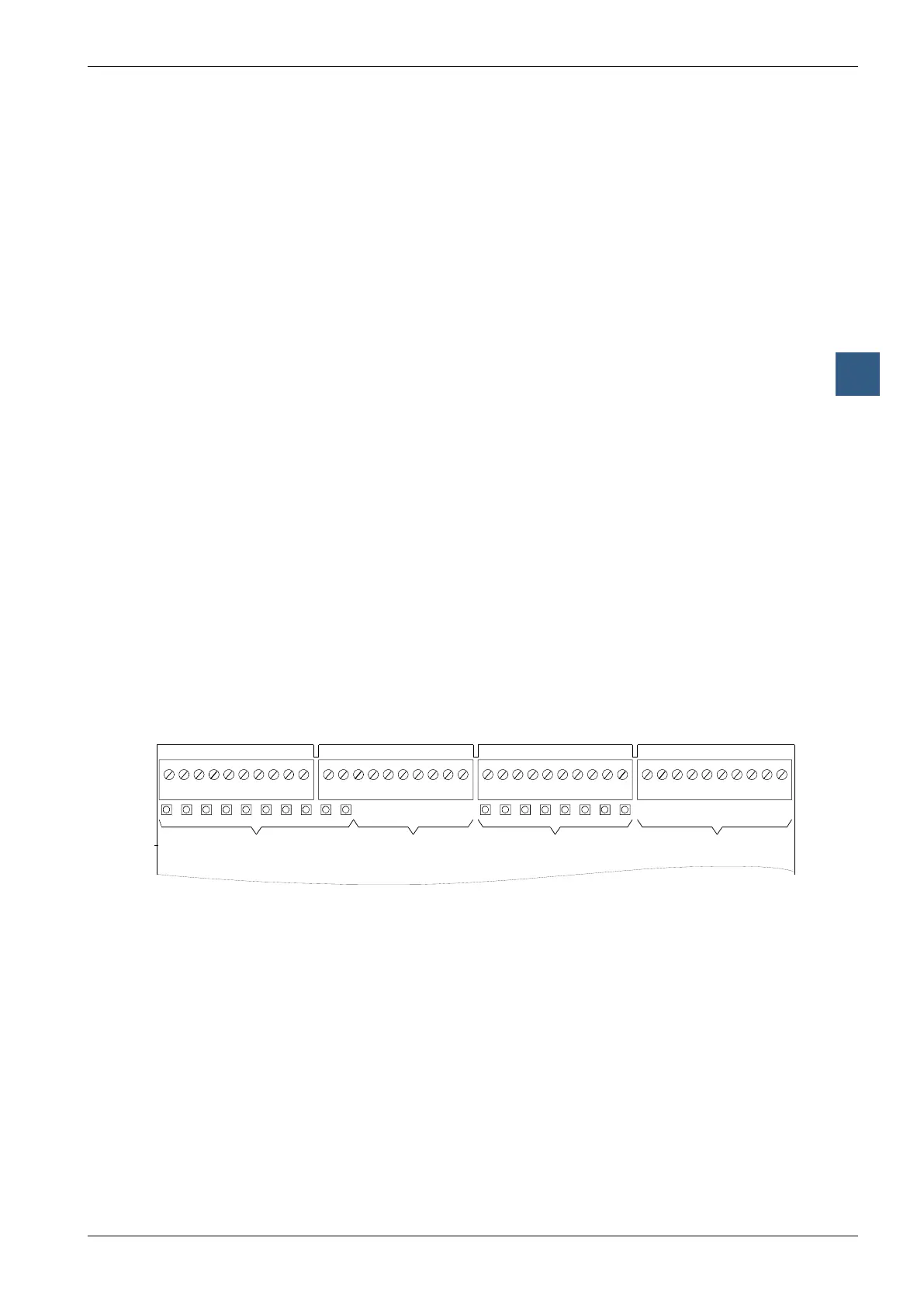

LEDs and connection terminals
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
E0
E1
E2
E3
E4
E5
E6
E7
----
----
E8
E9
A16
----
A17
A18
A19
A20
A21
----
A32
A33
A34
A35
A36
A37
A38
----
+
A39
E48
E49
E50
E51
E52
E53
E54
E55
----
----
E110
W400
A400
W200 / W220
*The module can be installed on sockets 1 … 4 (top) on the PCD2.
