SBC PCD1 Series User Manual

Saia-Burgess Controls AG
Manual Manual PCD 1 / PCD 2 Series │ Document 26 / 737 EN22 │ 2013-11-26
4
Communication interfaces
4-40
LonWorks
®
4.10 LonWorks
®
(freely congurable LON nodes)

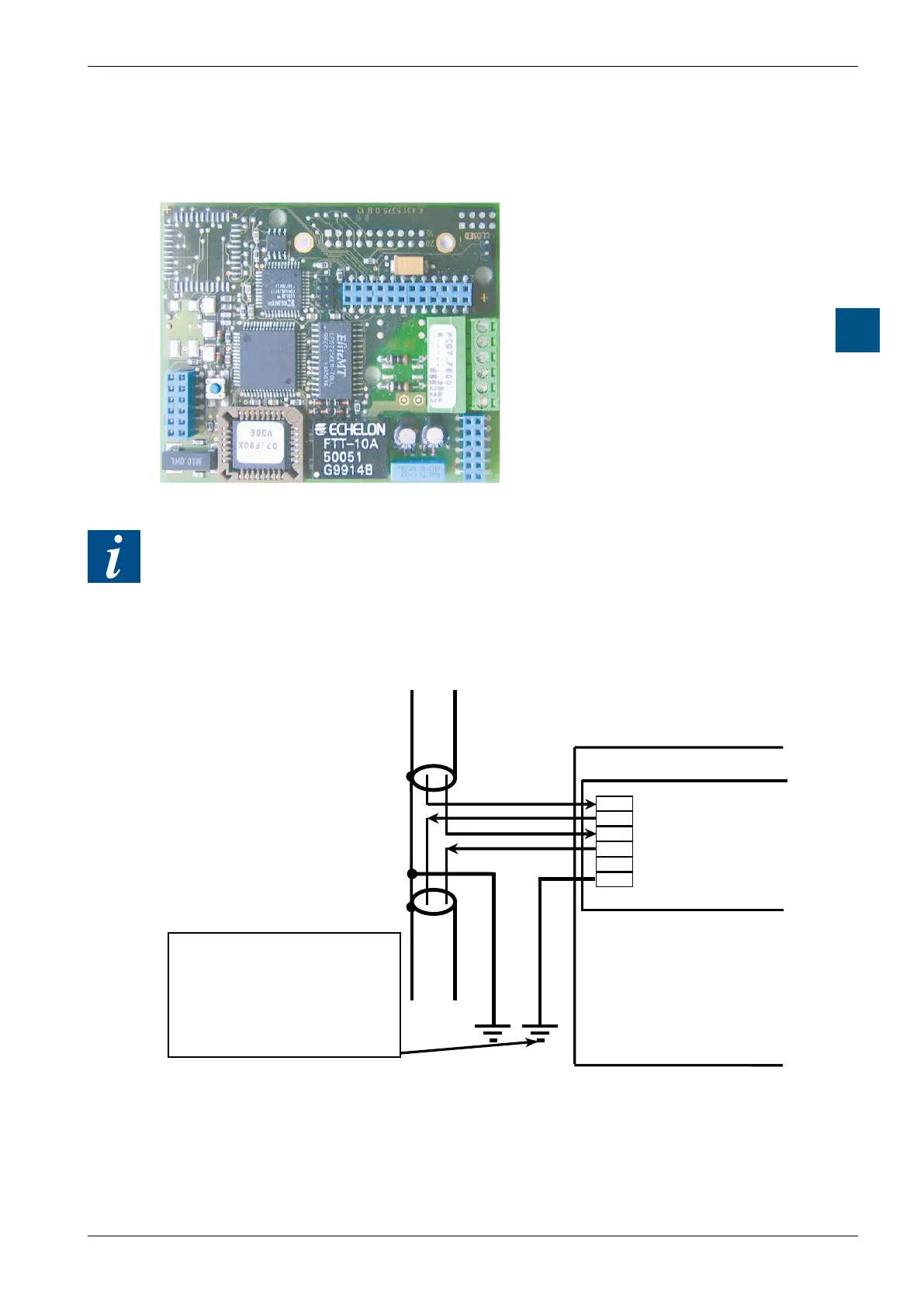

PCD7.F800 / F802
PCD7.F800
for connecting to the LonWorks
®
network (free topology FTT-10)
PCD7.F802
for connecting to the LonWorks
®
network (free topology FTT-10),
with additional RS-485 serial port,
electrically connected
Not all LON modules are supported by every Saia PCD
®
. The possible combinations
are set out in tables 3.1 “Summary of PCD1 communication options” and 3.2 “Sum-
mary of PCD2 communication options”.
Details can be found in manual 26 / 767 “LON”.
PCD1.M120 / M130 and PCD2.M120 / M150 LonWorks
®
PCD7.F80x on socket B / B1
Important:
The shield of the cable and
the terminals 0 or 1 of the
LON module must be wired to
the PCD's PGND.
PCD7.F80x
LON A
LON A
LON B
LON B
GND
GND
0
1
2
3
4
5
