Manual Manual PCD 1 / PCD 2 Series │ Document 26 / 737 EN22 │ 2013-11-26
4
Communication interfaces
4-33
Probus
4.9 Probus

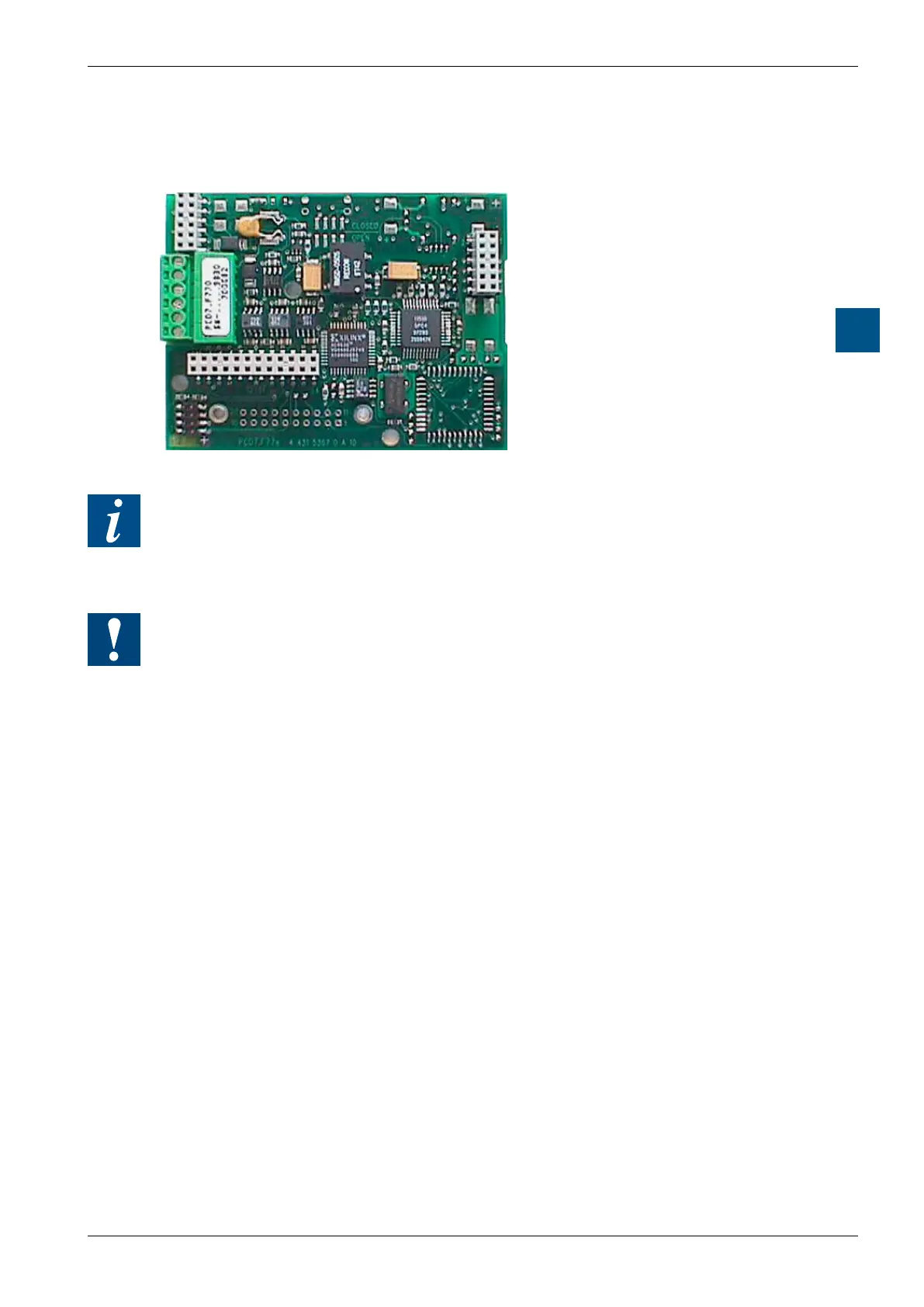

PCD7.F770 PCD7.F700
for connection as Probus FMS
client / server
PCD7.F750
for connection as
Probus DP Master
PCD7.F770
for connection as Probus DP Slave
PCD7.F772
for connection as Probus DP Slave,
with electrically isolated RS-485
interface
Not all modules are supported by every Saia PCD
®
. The possible combinations are
set out in tables
“4.2 Summary of PCD1 plug-in interface modules” and
“4.3 Summary of PCD2 plug-in interface modules”.
To avoid reections, each segment must be terminated at the line ends. According to
the Probus standard, this must not be on the unit itself. For the termination boxes,
either PCD7.T160s or normal 9-pole Probus DP D-type connectors are suitable (on
the M170 / M480 only).
Details can be found in manual 26 / 765 “Probus DP” or 26 / 742 “Probus FMS”.
