Communication interfaces
4-4
Summary of interface modules

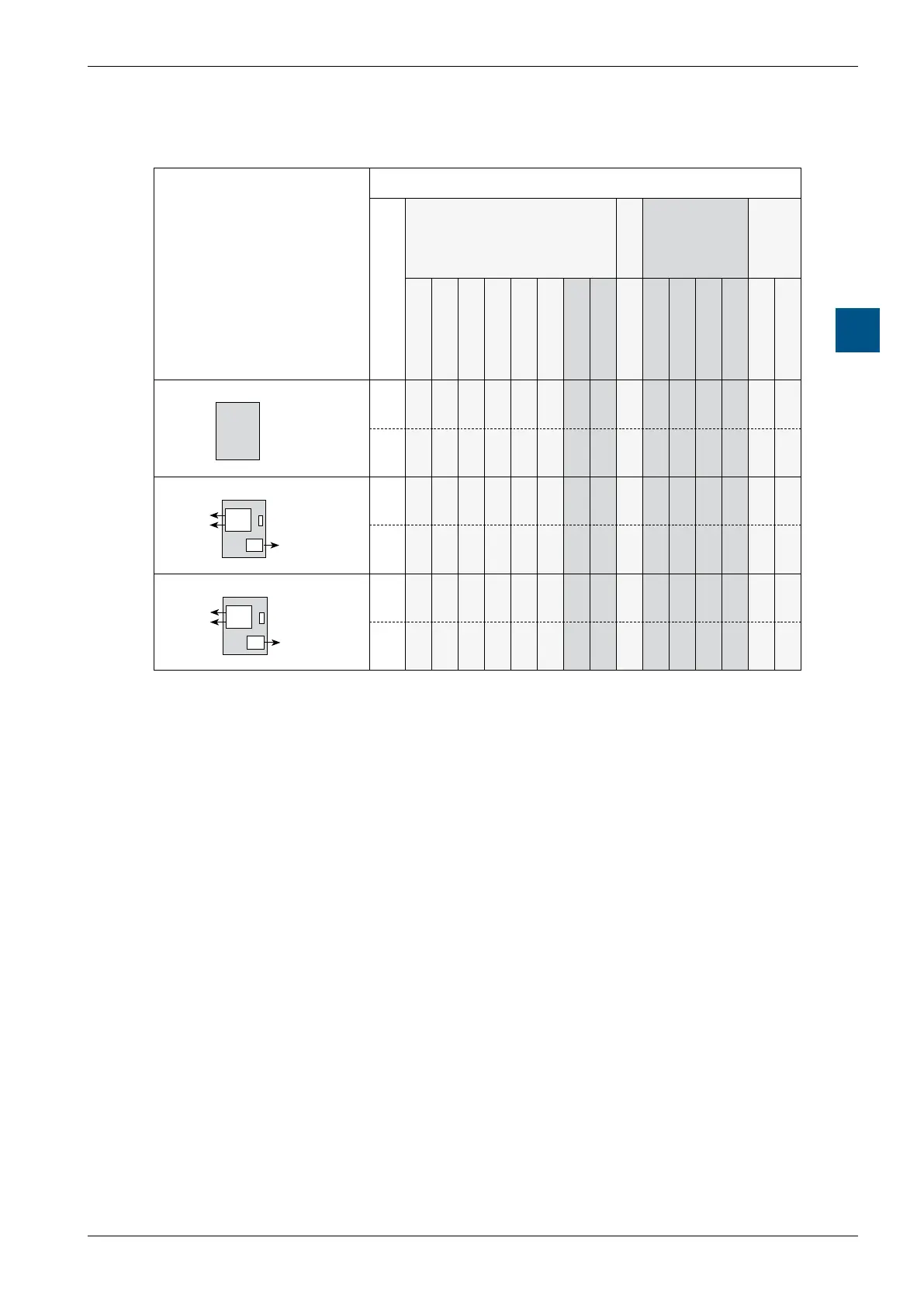

4.3 Summary of PCD1 plug-in interface modules
Base unit with sockets for
plug-in communication mod-
ules
Summary of plug-in communication modules
Socket
Serial
Ethernet
Probus LON
PCD7.F110
PCD7.F120
1)
PCD7.F121
1)
PCD7.F130 PCD7.F150 PCD7.F180 PCD2.F520 PCD2.F522
1)
PCD7.F65x PCD7.F700 PCD7.F750 PCD7.F770 PCD7.F772 PCD7.F800 PCD7.F802
PCD1.M110
A - - - - - - - - - - - - - - -
B - - - - - - - - - - - - - - -
PCD1.M120 / M125
B
A
Port #2
Port #1
Port #3
A ■ ■ ■ ■ ■ ■ - - - - - - - - -
B - - - - - - - - - - ■ ■ - ■ -
PCD1.M130 / M135
B
A
Port #2
Port #1
Port #3
A ■ ■ ■ ■ ■ ■ - - - - - - - - -
B - - - - - - - - ■
2)
- ■ ■ - ■ -
1) Suitable for modem connection, as 6 control lines provided.
2) With special housing cover 4 104 7409 0 or as congured system with type-no. PCD1.M135F655
