CPUs and expansion housings
3-20
Expansion housings and bus cables
3
3.6.1 Expansion with PCD2 components

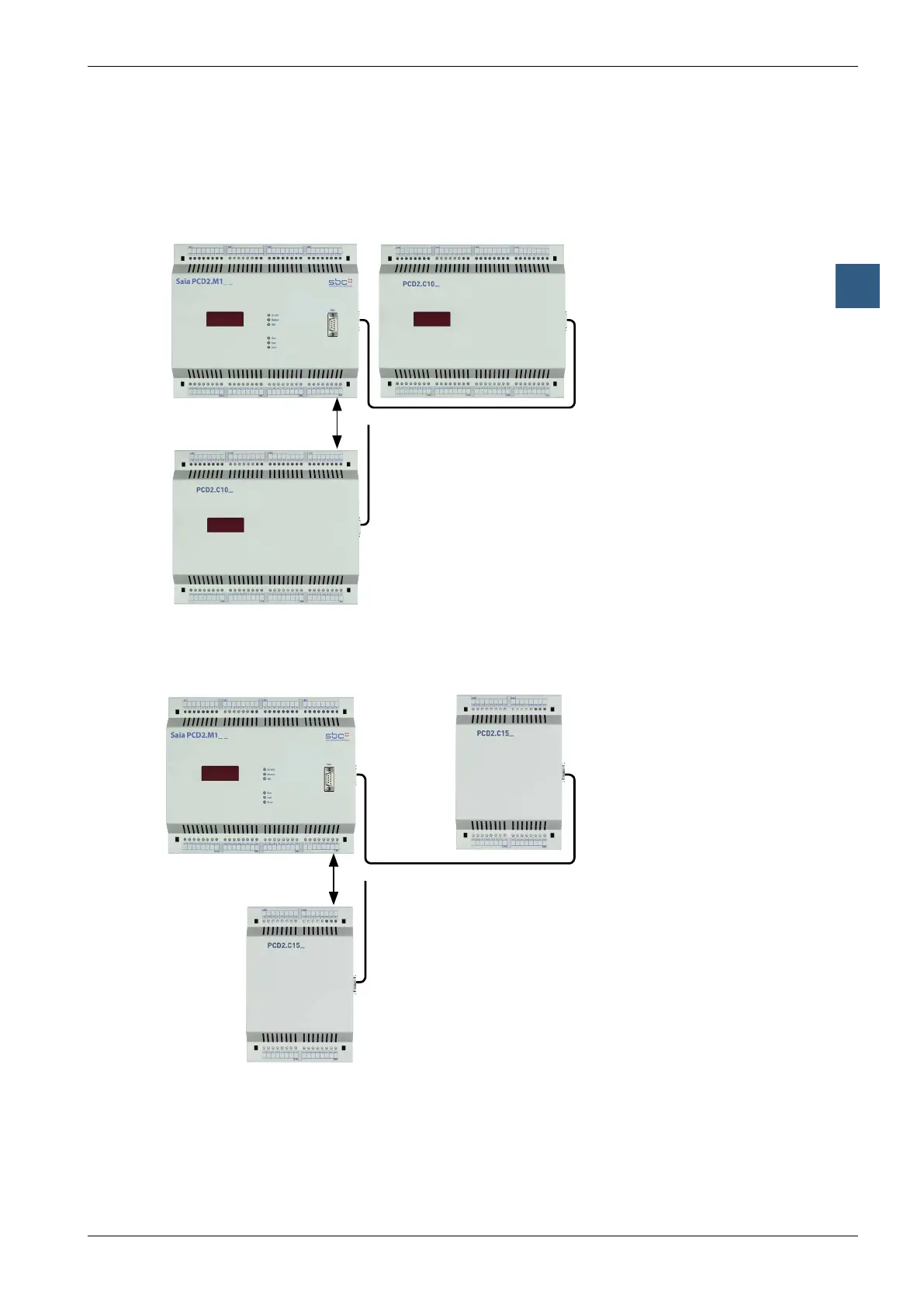

ThePCD2.C100expansionhousingprovidesspacefor8additionalI/Omodules.The
dimensions of the housing match those of the PCD2.Mxx0 base unit.
with C100 side by side
or with C100 beneath
M120/M150/M170/M480
max. 150 mm
K110
K100
ThePCD2.C150expansionhousingprovidesspacefor4additionalI/Omodules.The
dimensions of the housing match those of the PCD2.Mxx0 base unit.
with C150 side by side
or with C150 beneath
M120/M150/M170/M480
max. 150 mm
K110
K100
