Input/output (I/O) modules
5-8
Digital input modules

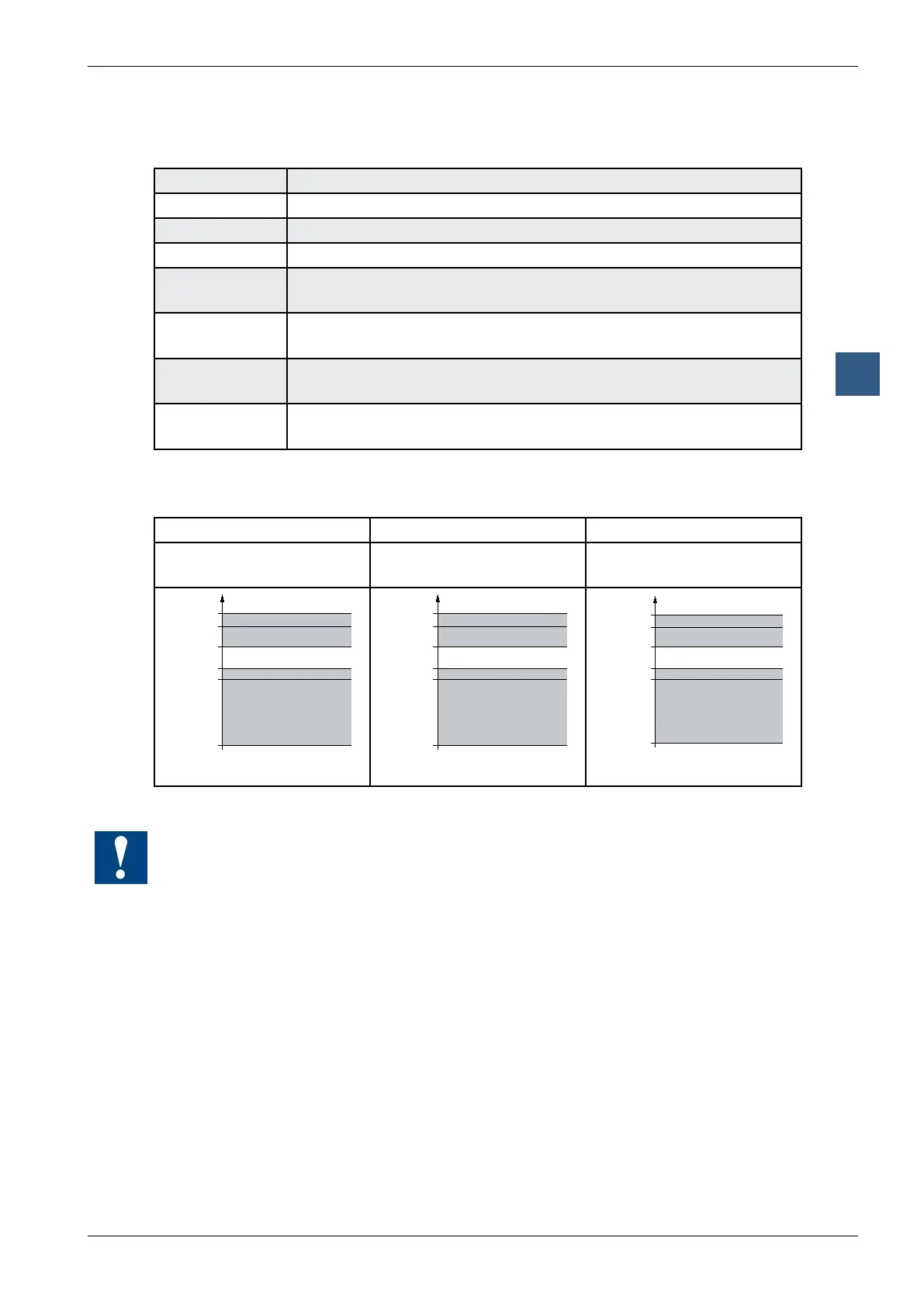

5.2 Digital input modules
PCD2.E110 8 inputs, 24 VDC, 8 ms
PCD2.E111 8 inputs, 24 VDC, 0.2 ms
PCD2.E112 8 inputs, 12 VDC, 9 ms
PCD2.E116 8 inputs, 5 VDC, 0.2 ms
PCD2.E160 16 inputs, 24 VDC, 8 ms,
connection via 34-pole ribbon connector
PCD2.E161 16 inputs, 24 VDC, 0.2 ms,
connection via 34-pole ribbon connector
PCD2.E165 16 inputs, 24 VDC, 8 ms,
spring terminal connection
PCD2.E166 16 inputs, 24 VDC, 0.2 ms,
spring terminal connection
Denition of input signals
for 5 VDC for 12 VDC for 24 VDC
PCD2.E116 PCD2.E112 PCD2.E110, PCD2.E111,
PCD2.E160 … E166
7 VDC
5 VDC
2.5 VDC
0 VDC
1 VDC
-7 VDC
1
0
15 VDC
12 VDC
7.5 VDC
0 VDC
2.5 VDC
-15 VDC
1
0
30 V
DC
24 V
DC
15 V
DC
0 V
DC
5 V
DC
-30 V
DC
1
0
I/O modules and I/O terminal blocks may only be plugged in and removed when the
Saia PCD
®
and the external +24 V are disconnected from the power supply.
