Saia-Burgess Controls AG
Manual Manual PCD 1 / PCD 2 Series │ Document 26 / 737 EN22 │ 2013-11-26
4
Communication interfaces
4-20
Serial interfaces on socket A

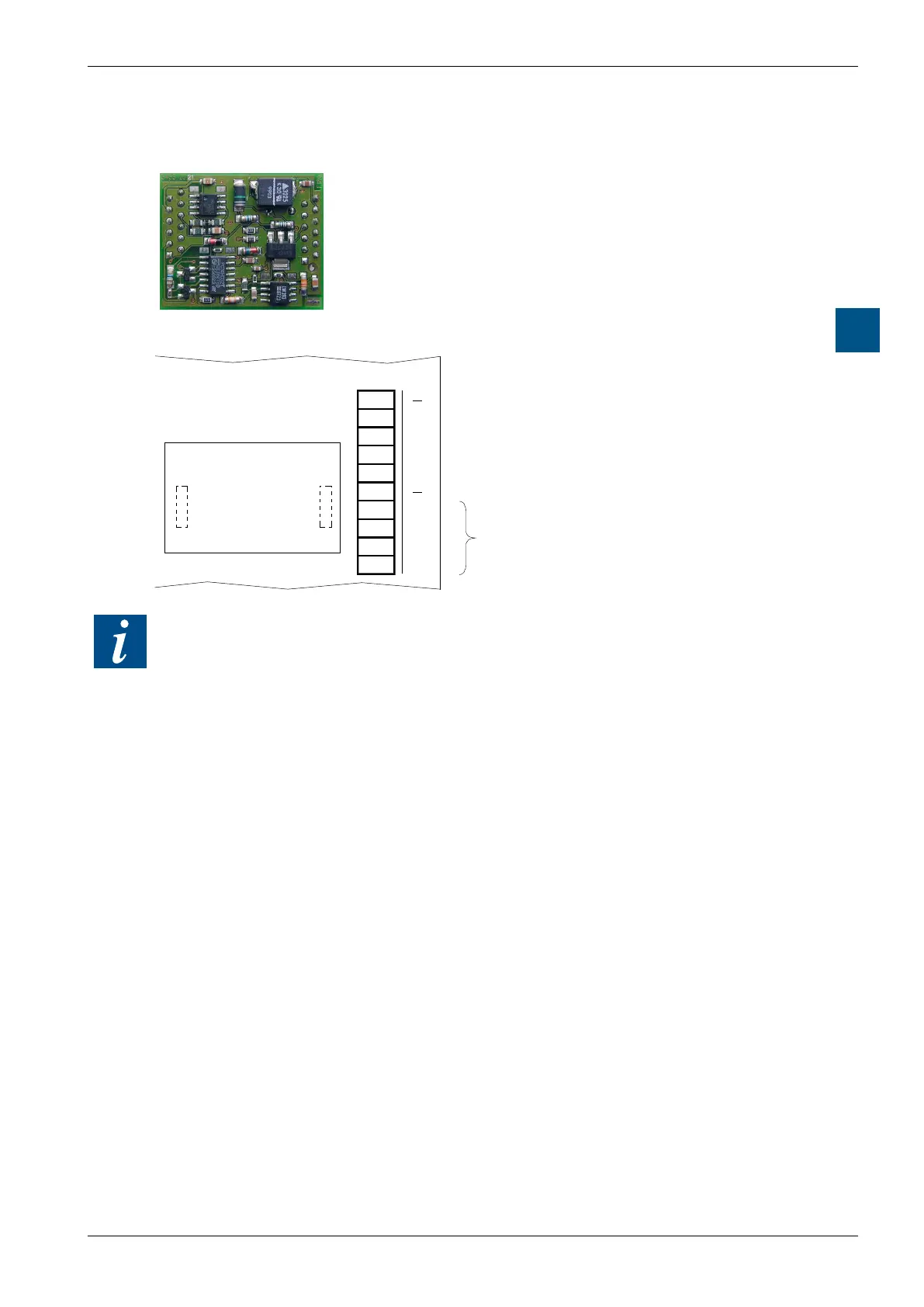

4.6.6 MP-Bus with PCD7.F180, Port #1 (without PCD1.M110)
PCD7.F180:
Connecting module for MP-Bus, for socket A
The user has a facility to connect an MP-Bus line with 8 drives
and sensors.
Connections
10
11
12
13
14
15
16
17
18
19
19
18
17
16
14
13
12
11
PCD7.F180
MP
,MFT’
,IN’
GND
-
-
Socket A
Screw terminal block, socket A
MP-Bus signal line (18 V in/out)
MFT programming unit (MP-Bus internal)
MFT programming unit detection (input 10 kΩ, Z5V1)
Earth connection, MFT programming unit
GND
GND
Not used
There are the following parameterization devices of BELIMO
®
:
Manual Control Unit MFT-H With its own power supply/batteries
PC-Tool MFT-P With the adapter ZIP-RS-232
