SBC PCD1 Series User Manual

Saia-Burgess Controls AG
Manual Manual PCD 1 / PCD 2 Series │ Document 26 / 737 EN22 │ 2013-11-26
CPUs and expansion housings
3-30
Power supply and connection plan
3

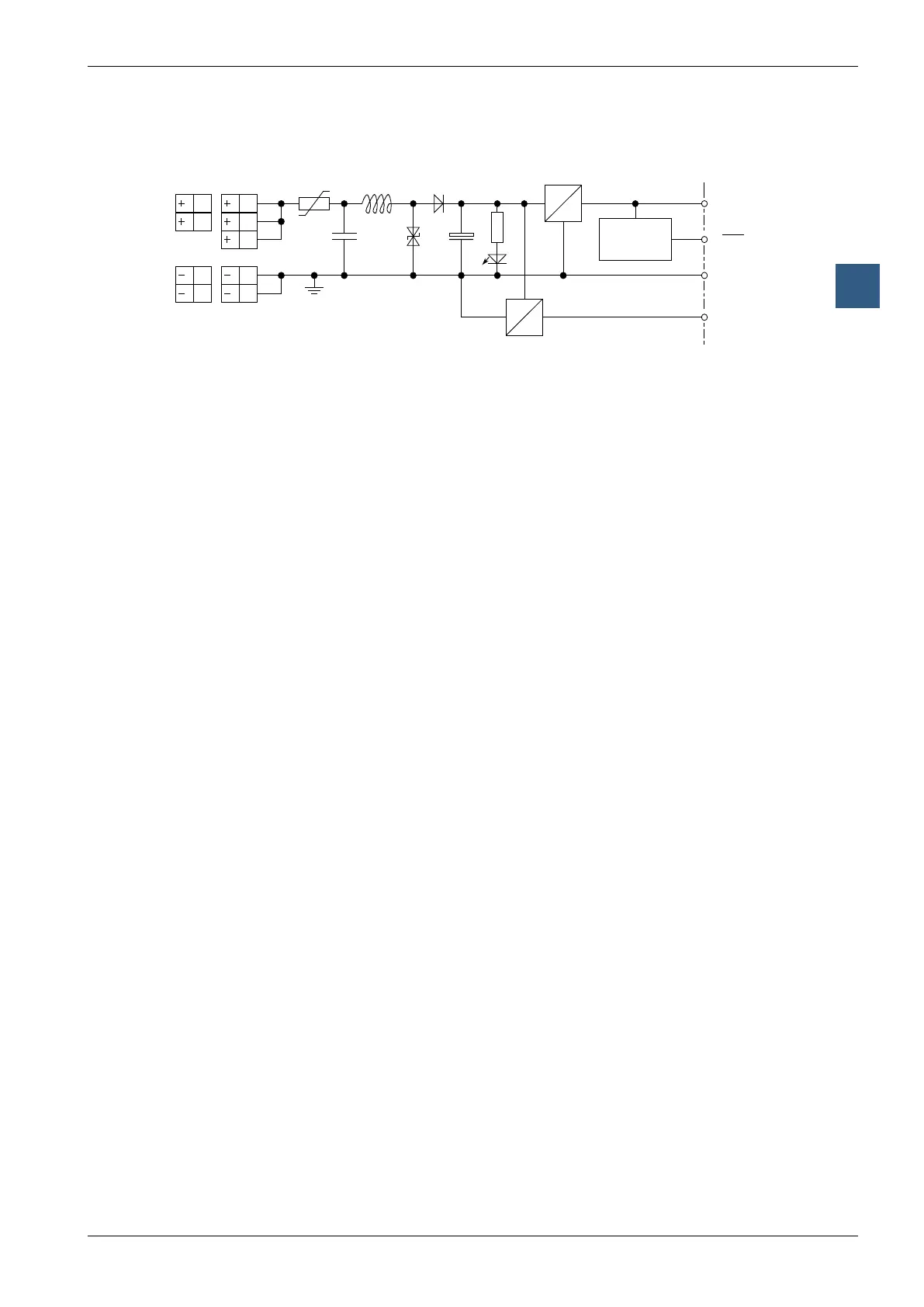

3.9.3 Internal power supply
23
24
22
23
20
21
22
+5 V
CLR
+V
39 V
PTC
20
21
0 V
PCD1 PCD2
DC
DC
Voltage
monitor 5 V
Bus PCD2
Supply 24 V
DC
DC
DC
LED
24 V
(16…24 V)
3.9.4 Capacity of internal power supply
Starting from the base units, the following currents are available for the plug-in
modules:
+5 V:
PCD1: : 750 mA
PCD2.M110/M120 : 1600mA(beforehardwareversionH:1100mA)
PCD2.M150/M170 : 1600 mA
PCD2.M480 : 2000 mA
+V (16…24 V) :
PCD1: : 100 mA
PCD2: : 200 mA
