Backup of the user program
3
3.17.4 Backup/restore of RAM texts/DBs at run-time
Asdescribedabove,theapplicationcanbecopiedtotheashcardafter
downloading.Inordertostoreprocessdatagatheredduringoperation,thereisa
facilitytocopytextsorDBsfromextensionmemory(address>=4000)totheash
card,orconversely,tocopythelaststatewrittentotheashcardbackinthetext/DB
in extension memory. A maximum of 64 Kbytes are available for this.

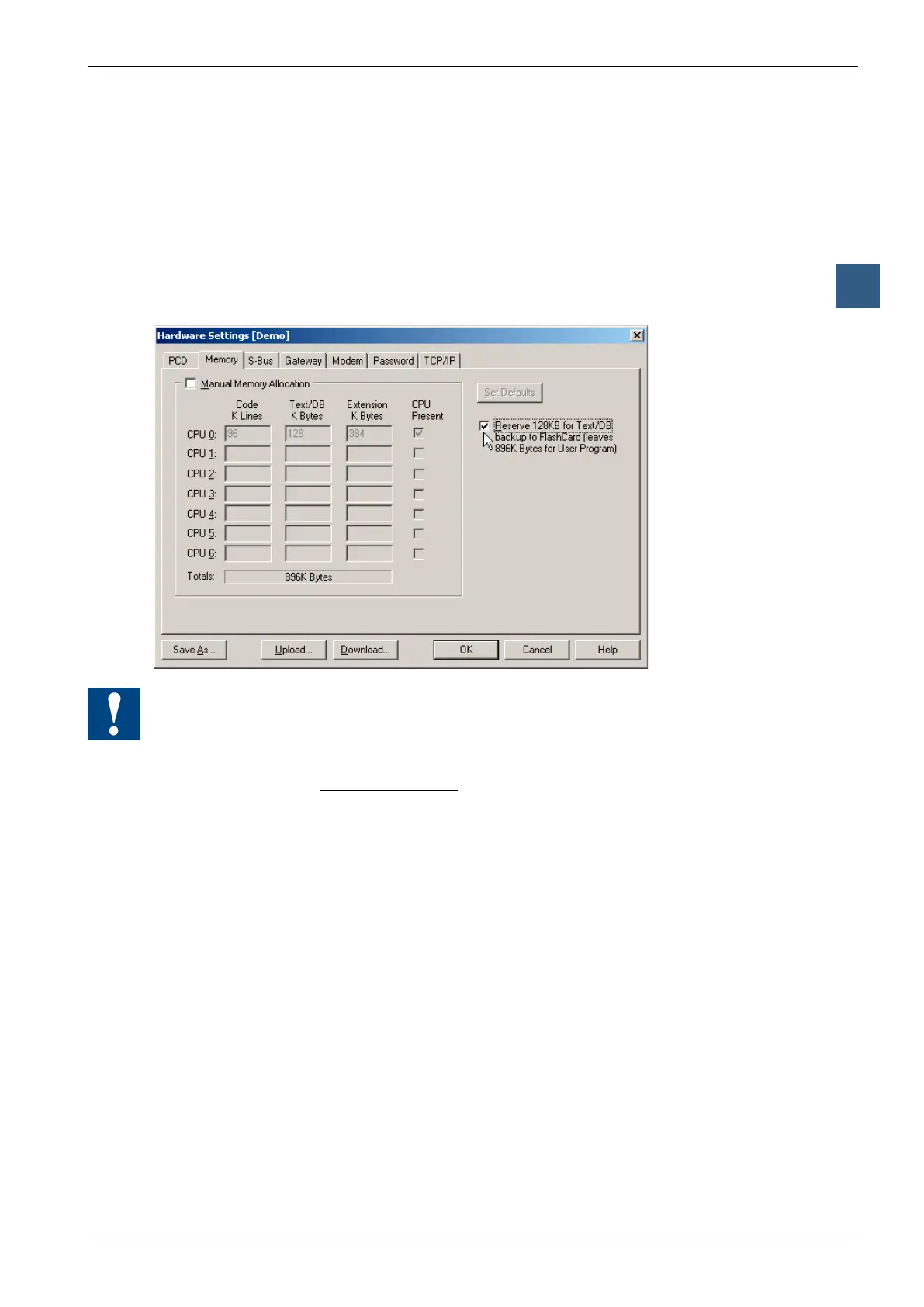

Inordertousethisfunction,theoptionshownbelowmustbeactivatedinthehard-
warecongurationandthecongurationmustbeloadedintothecontroller.
 Thisleavesonly896Kbytesavailableforthewholeapplication(code,texts/DBsand
extension memory).
Forstoringtexts/DBsontheashcard,restoring,deletingandrunningdiagnostics,
therearefourSYSRD/SYSWRinstructionsprovided,asdescribedindetailbelow;
these can be invoked at a suitable place in the user program. These instructions must
beusedwithgreatcare,topreventanydamagetotheunitortheashcard.
