SBC PCD1 Series User Manual

Saia-Burgess Controls AG
Manual Manual PCD 1 / PCD 2 Series │ Document 26 / 737 EN22 │ 2013-11-26
5
Input/output (I/O) modules
5-108
Fast counting modules
Programming: Based on Saia PCD
®
user program and pre-programmed
function blocks (FB).
Count modes: Selectable with jumper
Terminals: Pluggable 10-pole screw terminal block
(4 405 4847 0), for wires up to 1.5 mm²

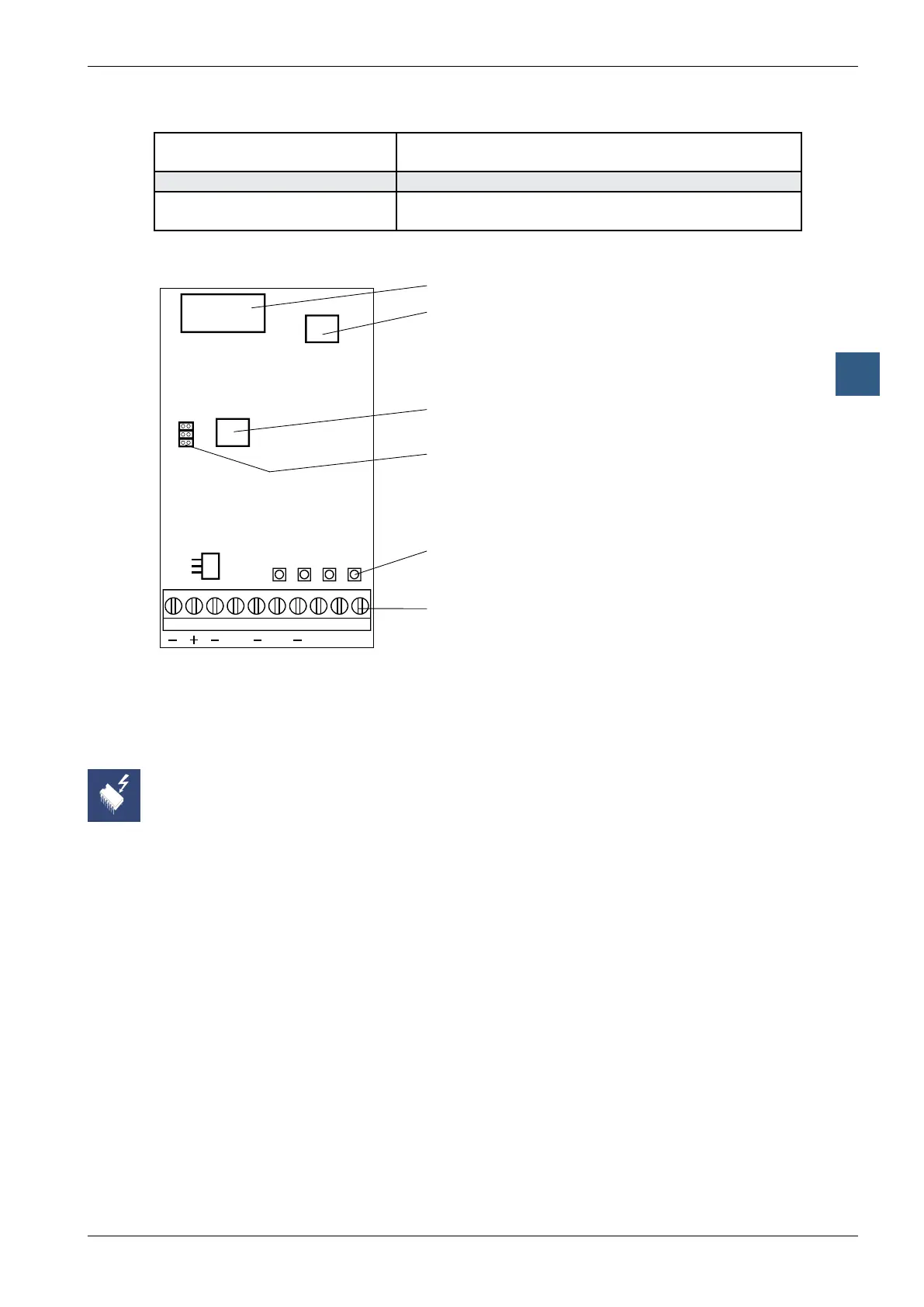

LEDs and connection terminals
9 8 7 6 5 4 3 2 1 0
A B CCO
CCO B A En
SC
x1
x2
Bus connector
GAL*) for adressing
GAL*) for count modes
Jumper for count modes
LEDs
Screw terminals
(*) GAL = Generic Array Logic)
Changing the jumpers
On this circuit board there are components that are sensitive to electrostatic
discharges. For further information, refer to Appendix B, “Icons”.
“A” Input “A” 1
“B” Input “B” 2
“En” (Enable) Counter active 0
“CCO” Output “CCO” 3
