Chapter 3: Operat
ing Your Scanner

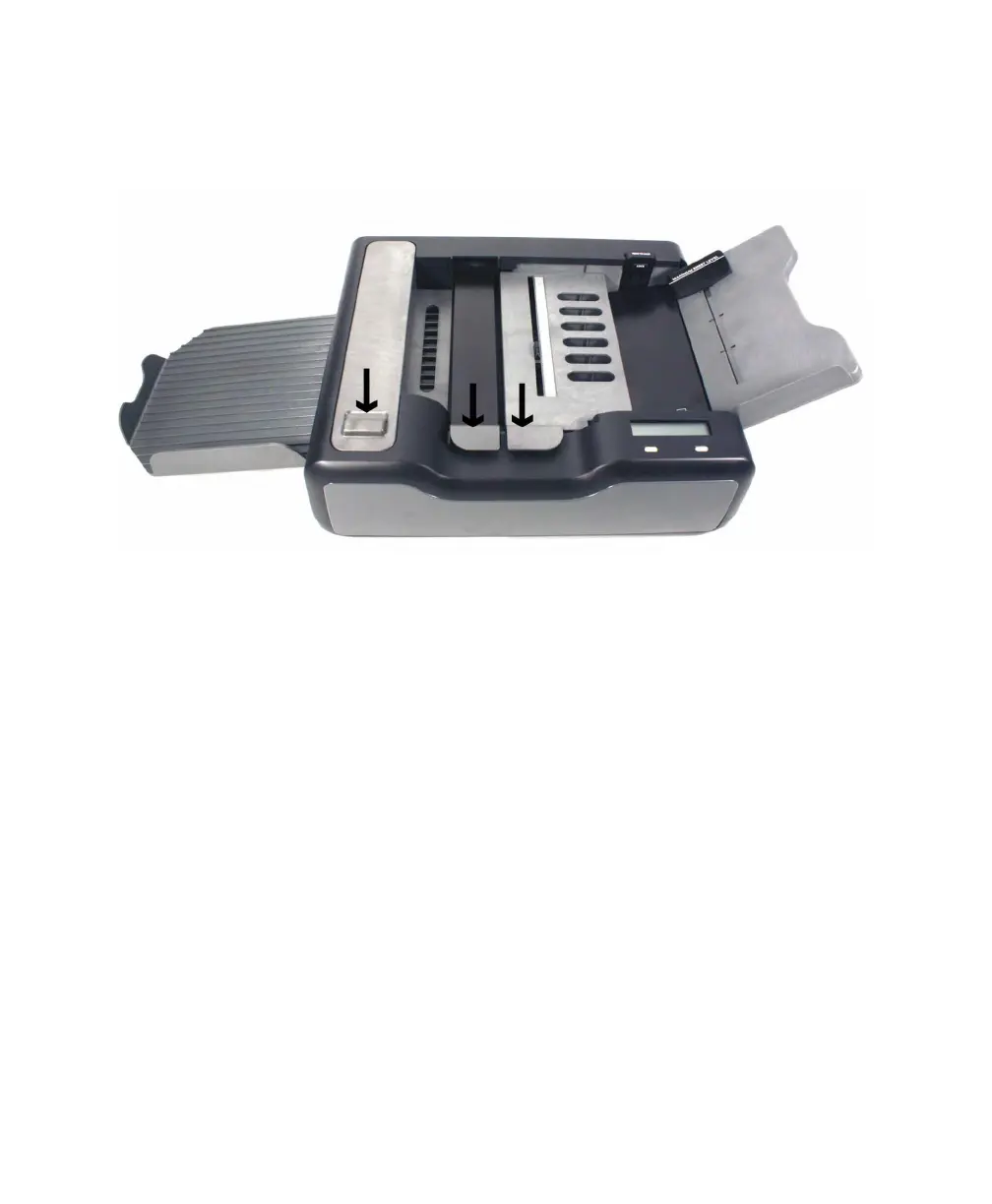

Verifying Proper Setup
36
Scantron OpScan 4ES and
i
NSIGHT 4ES Sc
anners
5.
Ensur
e that the cov
ers on
the sheet d
eflector (
o
r
optional bar code reader), read head, and pr
inter
(
optional) are closed and fully seated.
