122
Connecting to a BACnet system
The Network Node Info appears on the right.

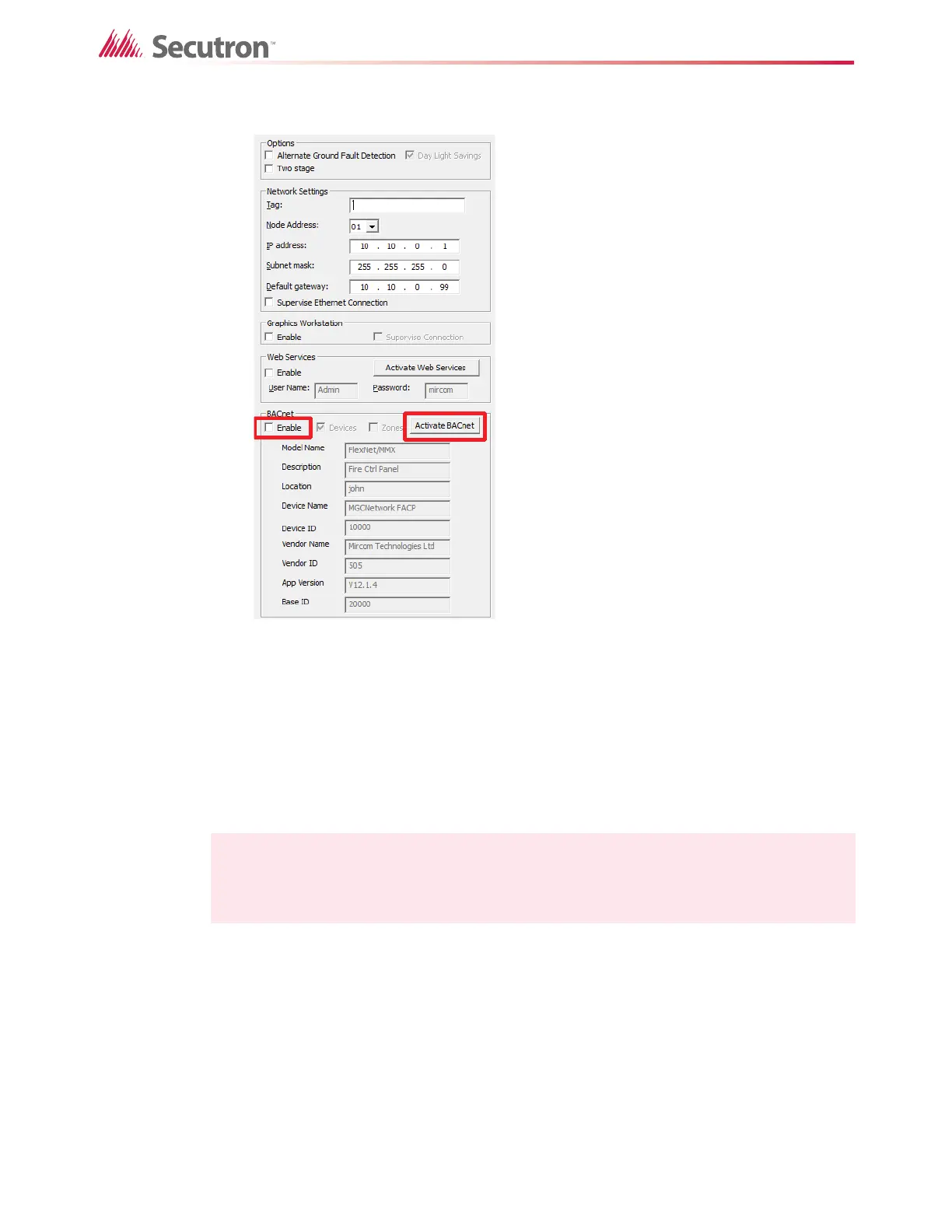

Figure 78 Network Node Info - BACnet
4. Type the static IP address, subnet mask and default gateway. Each node on the TCP/IP
network requires its own IP (Internet Protocol) address. The IP address must be unique
to the node and it must not be used by any other device on the TCP/IP network.
If you need assistance, contact your network administrator.
5. Click Enable under BACnet.
6. Click the Activate BACnet button. You must have a CodeMeter key inserted in the
computer.
7. Click Yes to transfer a BACnet license from your CodeMeter key to the Configurator, and
then click OK in the BACnet Services Licence Imported window, and then click OK in
the UnitCounter window.
8. Type a Device ID and a Base ID in the appropriate fields. The Device ID must be a
lower number than the Base ID.
The Base ID determines where the object ID values will start from. MMX assigns every
device a BACnet object ID starting from the Base ID.
The Device ID determines the ID of the Fire Alarm Control Panel. The Device ID must be
lower than the Base ID so that it is outside the range of possible object IDs.
Note: Your organization has a certain number of BACnet Services licenses You can
use only one BACnet Services license per job.
