137

Using the Web Server

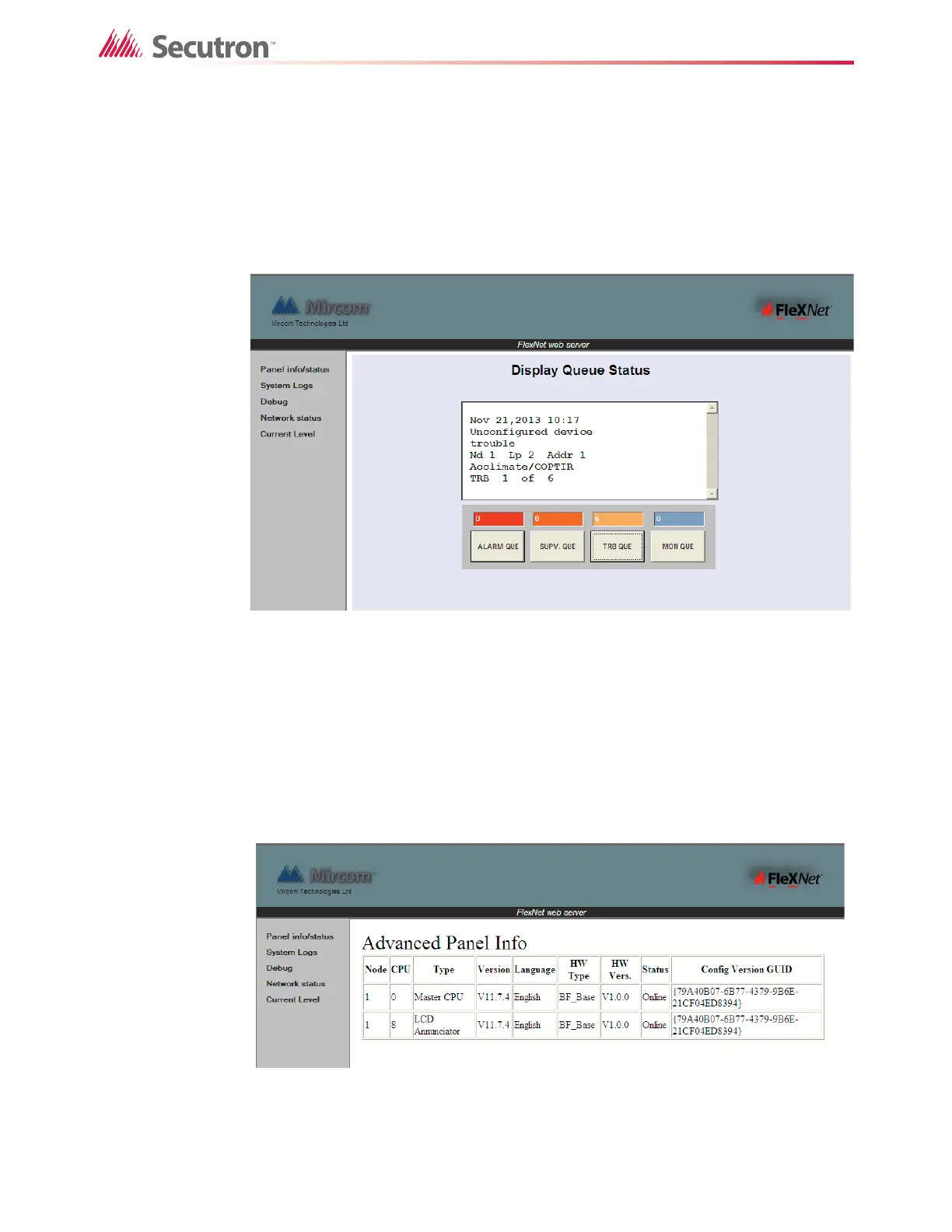

18.2.1 Queue Status

The Display Queue Status page shows the alarm, supervisory, trouble and monitor queues.

To browse through these queues, click the corresponding button.

To view the Queue Status:

• Click Panel Information, and then click Queue Status.

Figure 89 Queue Status

18.2.2 Advanced Panel Info

The Advanced Panel Info page shows information about the CPUs connected to each node

in the system, including the firmware version and the current job. For more information, see

section 2.8 on page 22.

To view the Advanced Panel Info:

• Click Panel Information, and then click Panel Info.

Figure 90 Advanced Panel Info
