154
Using the Configurator
To see the Network Node Details
• Select a node in the Job Tree.

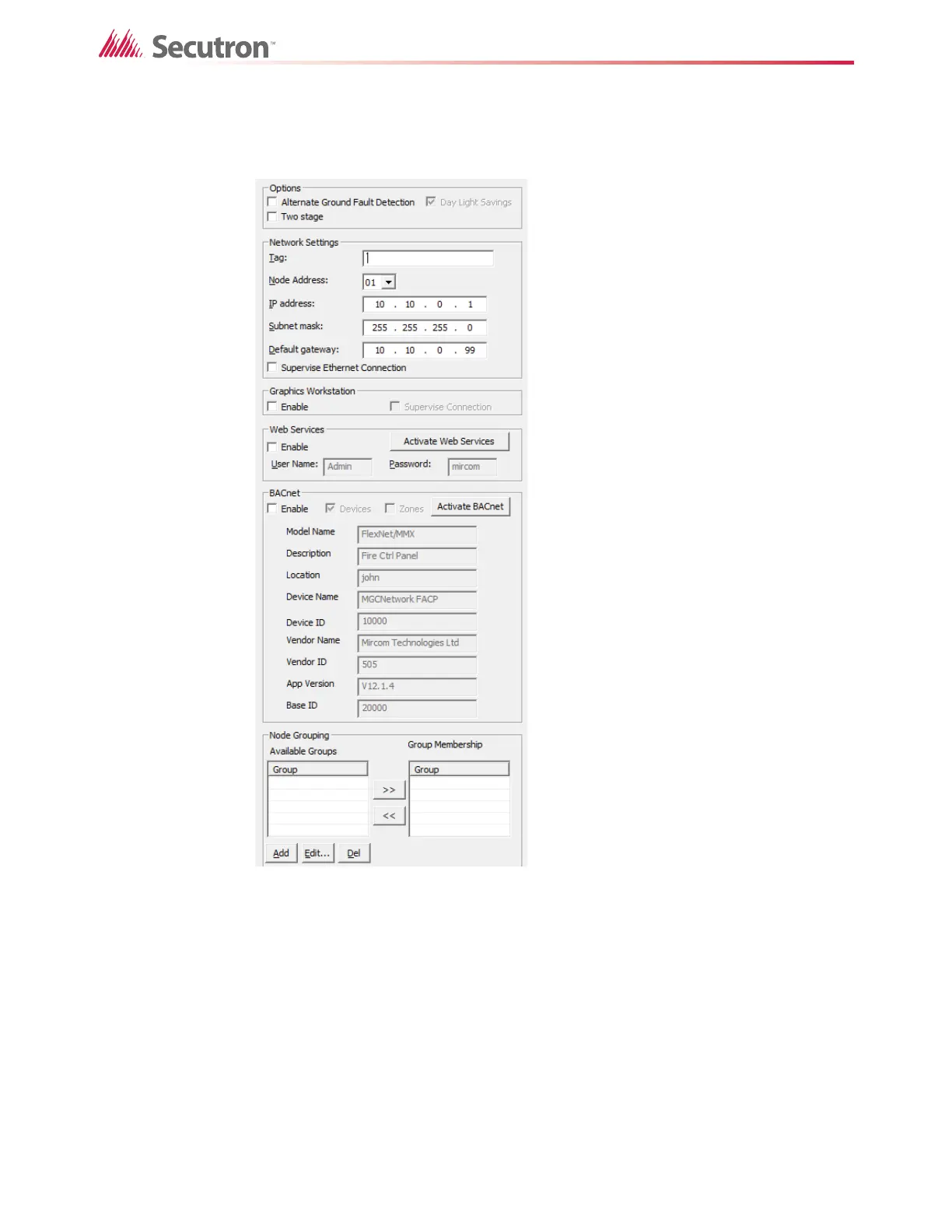

Figure 105 Network Node Details
Alternate Ground Fault
Detection
If you select this check box, the system will use alternate
ground fault detection settings to compensate for the
capacitance and resistance of long audio cable runs. See
section 12.5 on page 101.
Two Stage Check to enable two stage.
As per UL 864 and UL 2572 only a setting of Single Stage
(disabled) is permissible.
Tag A description of the node. This appears in the Job Tree.
Node Address The node address.
