To assign the nodes to the groups
1. Create two nodes, and tag them Fire Panel and MNS Panel.
2. Select the Fire Panel node.
3. In the right pane, scroll down to the Node Grouping section, and then click Add to
create a group.
4. Type the name Fire Group, and then click OK.
5. Click the >> button to move the Fire Group to the Group Membership box.
6. Select the MNS Panel node.
7. In the right pane, scroll down to the Node Grouping section, and then click Add to
create a group.
8. Type the name MNS Group, and then click OK.
9. Click the >> button to move the MNS Group to the Group Membership box.

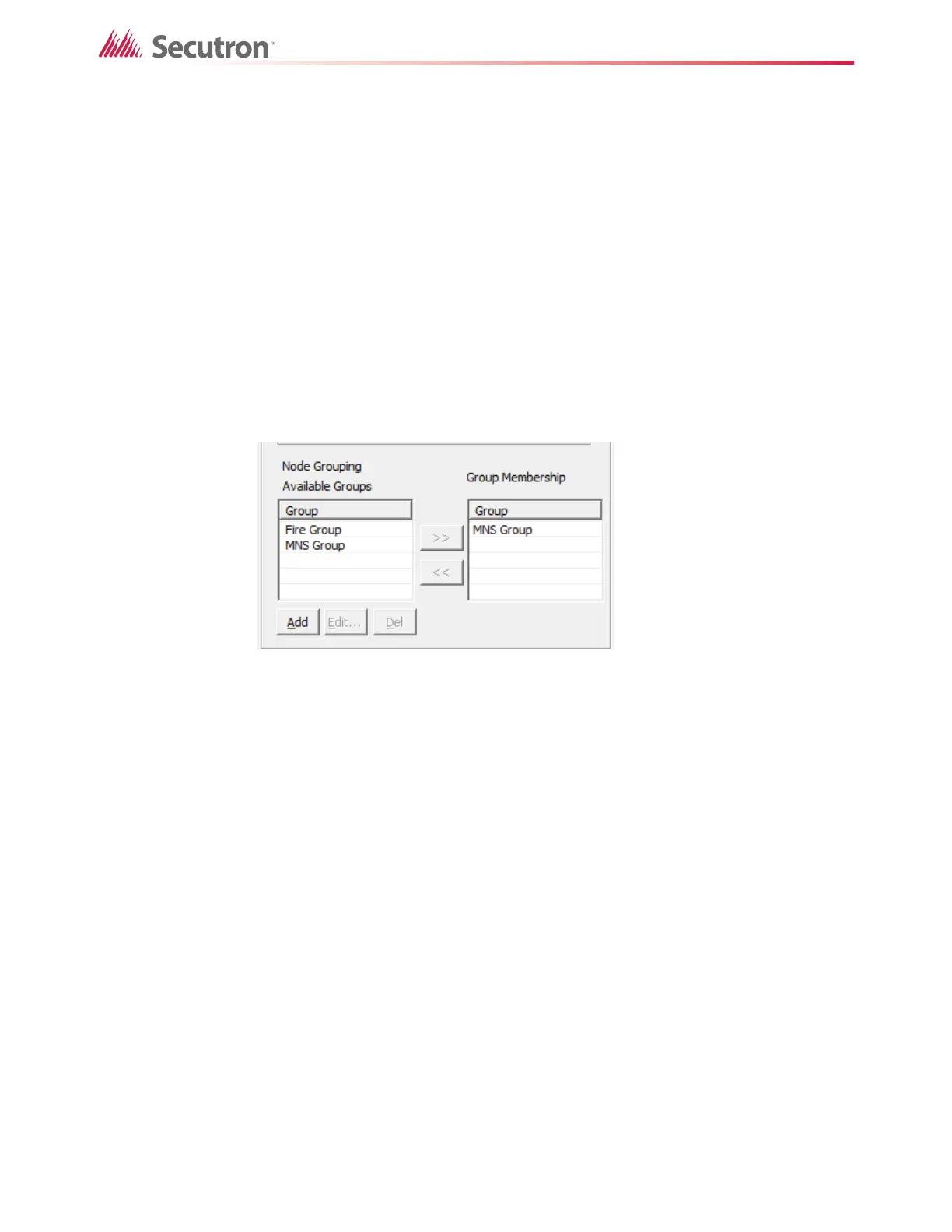

Figure 22 Node Grouping for the MNS Panel
5.8.3 Assigning switches to the groups
You must assign Common Control switches such as Signal Silence and System Reset to the
appropriate group. By default, these switches are set to Global, which ignores any grouping.
To assign switches to the groups
1. Select Base Control/Annun in the Main Display of the Fire Panel node.
2. For each switch, double-click in the Node Group column, and then click Fire Group in
the pulldown menu.
3. Repeat step 2 for any switches on annunciators connected to the Fire Panel node.
4. Select Base Control/Annun in the Main Display of the MNS Panel node.
5. For each switch, double-click in the Node Group column, and then click MNS Group in
the pulldown menu.
6. Repeat step 5 for any switches on annunciators connected to the MNS Panel node.
5.8.4 Assigning zones to the nodes
You must create a zone for each node, and correlate each zone with its respective inputs.
