84
Hardware Layouts

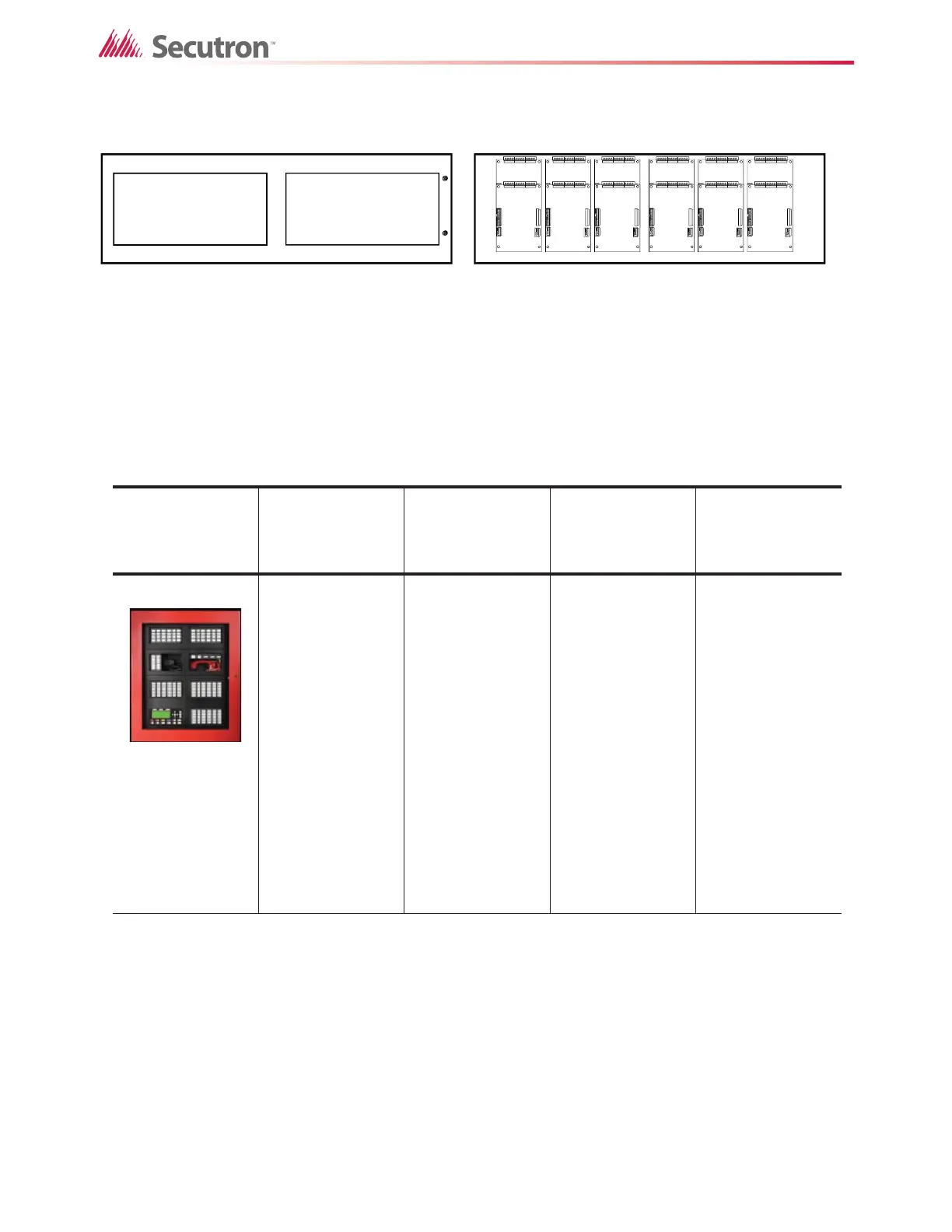

Figure 52 EXC-0012 mounts and occupies 2 display positions in BB-5008 or BB-
5014
Table 13 BB-5008 Backbox
Name Description Holds Number of
Displays and
Remote
Annunciators
Dimensions
BB-5008(B/R)
Lobby Control
Backbox (black
backbox, black or
red door)
1 MMX-2009-
12NDS or 2 ECX-
0012s
DSPL-420
DSPL-2440
RAXN-LCD
RAXN-LCDG
QMT-5302N
QMP-5101N
QAZT-5302DS
INX-10AC
24 Ah battery
pack
8 (the MMX-2009-
12NDS uses 4,
the ECX-0012
uses 2)
38.0” H x 32.5” W
x 7.5” D
Supports 2 Display Modules. Supports 12 Adder Modules.
Cutout to mount
display module
Cutout to mount
display module
Exterior View Interior View
1
2
34
56
789101112
The backplate can support 12 Adder Modules or any 2
of the following 3 options: 6 Adder Modules, 1 Main Board
and 3 Adder Modules, 1 Telephone Network Card
and 1 Audio Network Card
To Next Page
