Secutron MMX Series User Manual

82
Hardware Layouts
11.7.2 MMX-BBX-1072A(R)DS Fire Node Backbox
The MMX-BBX-1072A(R)DS backbox is larger than the MMX-BBX-1024R. It contains the
MMX-2017-12NDS Mid-Size Main Chassis along with the batteries for emergency operation.
The MMX-2017-12NDS Mid-Size Main Chassis contains the main display, mother board,
adder modules and the transformer. It fits directly into the MMX-BBX-1072A(R)DS backbox.
The outer dimensions of the MMX-BBX-1072A(R)DS fit within 33.9” X 26.4” X 6.5”.

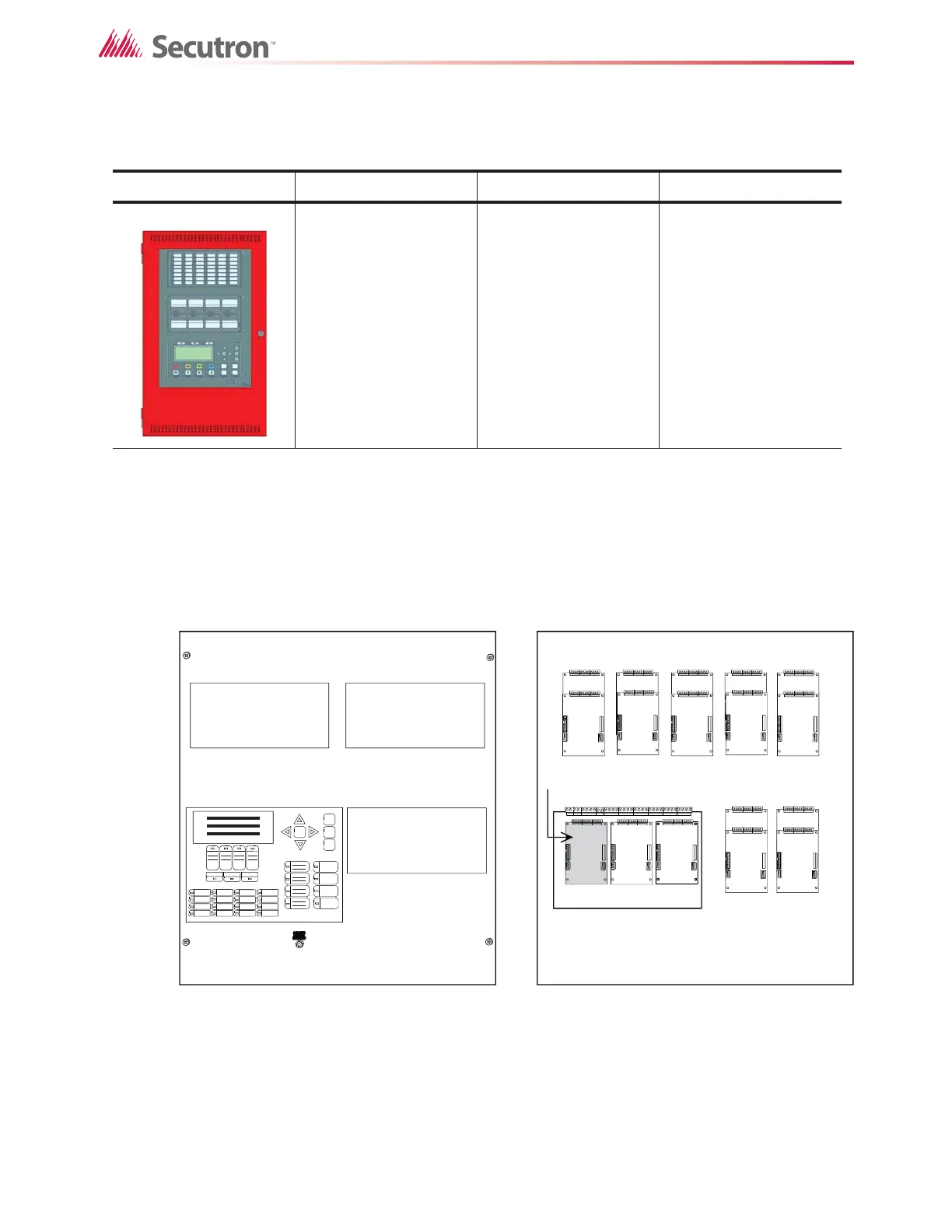

Figure 50 MMX-2017-12NDS mounts in the MMX-BBX-1072A(R)DS Backbox
Table 11 MMX-BBX-1024R
Name Description Holds Dimensions
MMX-BBX-1024DS(R)
Black backbox, white or
red door
MMX-2003-12NDS
17 Ah battery pack
26.3” H x 14.8” W x
4.6” D
Cutout to mount
display module
Cutout to mount
display module
Cutout to mount
display module
Slot is reserved for PR-300A. If none is required, this slot
can be used to mount any of the adder modules.
.seludoM reddA 71 stroppuS.seludoM yalpsiD 3 stroppuS
weiV roiretnIweiV roiretxE
1
23
45
67
89101112
1314151617
Main Board
