135
Using the Web Server
18.1.3 Pinging the Fire Alarm Control Panel
Before attempting to access the Web Server, ensure that there is a network connection
between the computer and the Fire Alarm Control Panel.
To ping the Fire Alarm Control Panel
1. Click the Start button, click Run, type cmd.exe, and then press Enter.
2. In the command prompt window, type ping followed by the IP address of the node that is
connected by Ethernet. For example, if the IP address is 10.10.0.1, then type:
ping 10.10.0.1
• If the ping is successful, then the computer can communicate with the node.

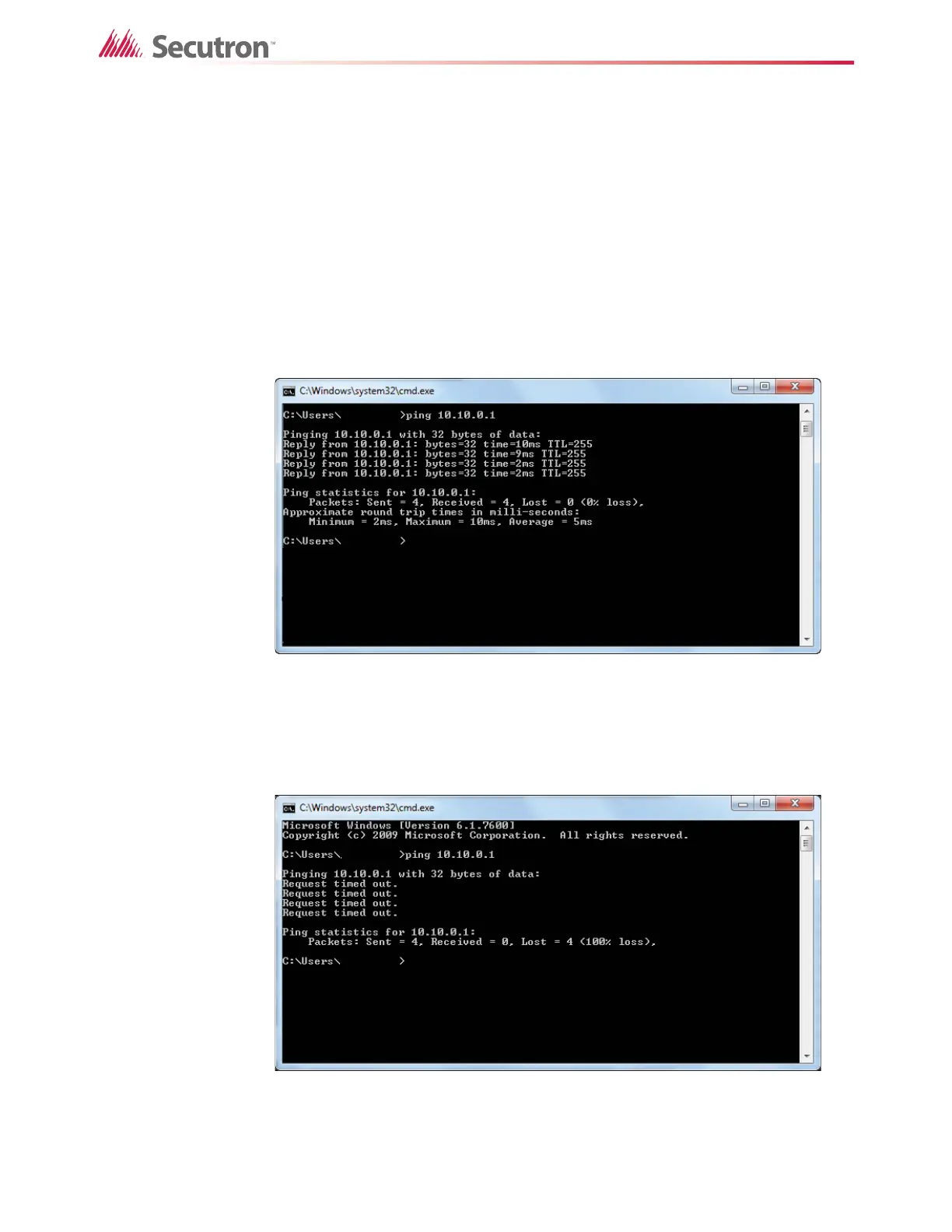

Figure 87 Successful ping
• If you see the message Request timed out, then the ping was not successful, and
the computer cannot communicate with the node. Check the network connection
and make sure that the computer and the node are on the same subnet and have
different IP addresses.
Figure 88 Unsuccessful ping
