Secutron MMX Series

93
Hardware Layouts
11.10.1 Audio Cabinets

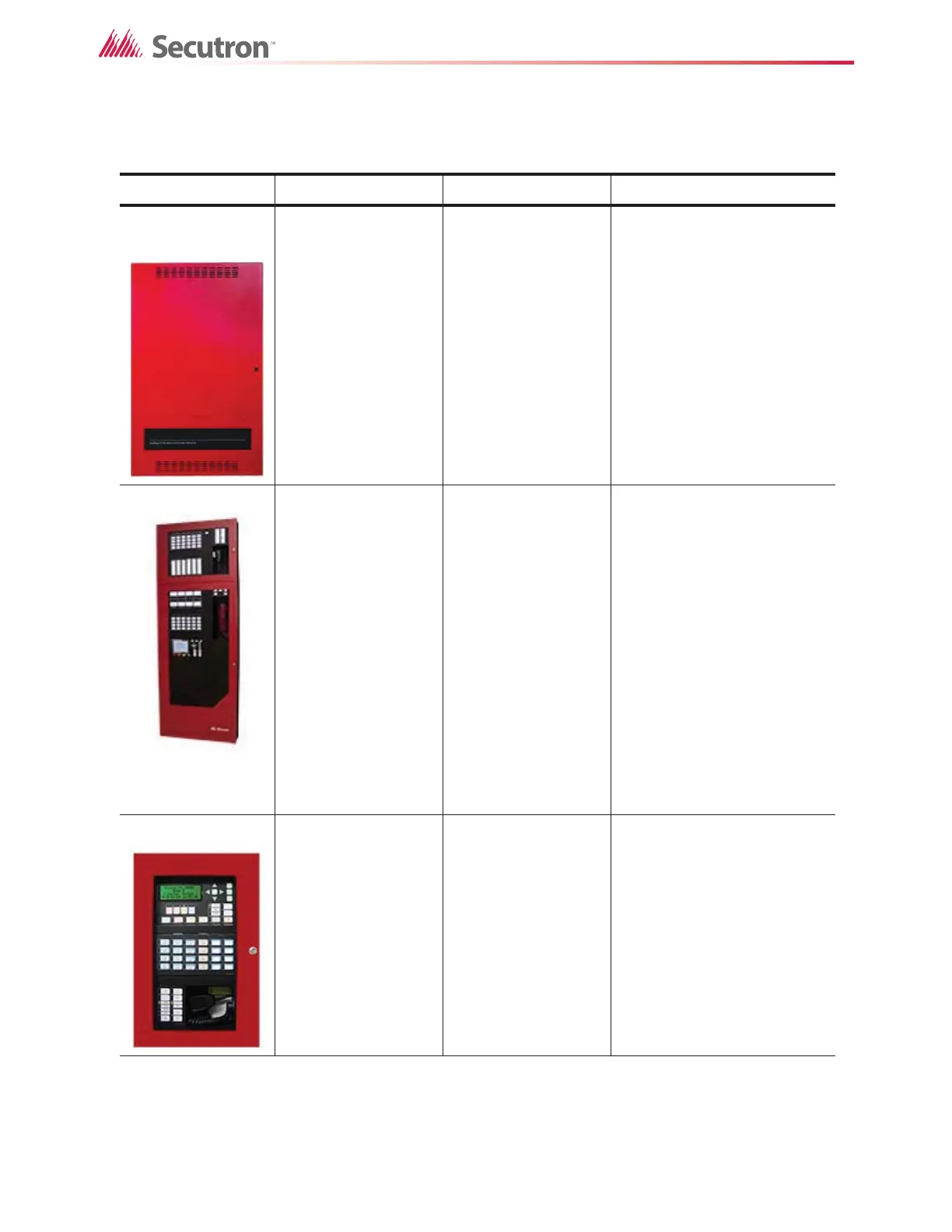

Table 16 Audio Cabinets
Name Description Holds Dimensions
MMX-QBB-
5001(R)
Expansion Audio
Cabinet
1 QMB-5000B (space
for 1 ANC-5000, 1
TNC-5000, and 7
amplifier boards)
1 QPS-5000N power
supply
1 QBC-5000N battery
charger
24.25” H x 41” W x 8” D
MMX-BBX-FXMNS
Integrated Fire and
Audio Backbox
1 MMX-2000MNS
2 paging modules
(QMT-5302NV, QMP-
5101NV)
9 adder modules
7 displays
QMB-5000N (space
for 1 ANC-5000, 1
TNC-5000, and 4
amplifier boards)
1 PS-2040 power
supply
See section 11.8
on page 89
63.5” H x 22.5” W x 9.5” D
MMX-LOC
Local Operating
Console
3 modules: RAXN-
LCD, QMP-5101N,
and either QAZT-
5302DS or FDS-008
See section 11.10
on page 91
25.0” H x 15.0” W x 7.0” D
