Secutron MMX Series User Manual

81
Hardware Layouts
11.6 Booster Power Supplies
11.7 Backboxes
Backboxes, also called enclosures, are large steel cabinets that hold chassis, displays, and
adder modules.
11.7.1 MMX-BBX-1024R Fire Node Backbox
The MMX-BBX-1024R is the smallest backbox available. It holds the MMX-2003-12NDS
Compact Main Chassis along with batteries for emergency operation. The MMX-2003-12NDS
Compact Main Chassis contains the main display, mother board, adder modules and the
transformer. It fits directly into the MMX-BBX-1024R backbox. The outer dimensions of the
MMX-BBX-1024R fit within 26.3” X 14.8” X 4.6”.

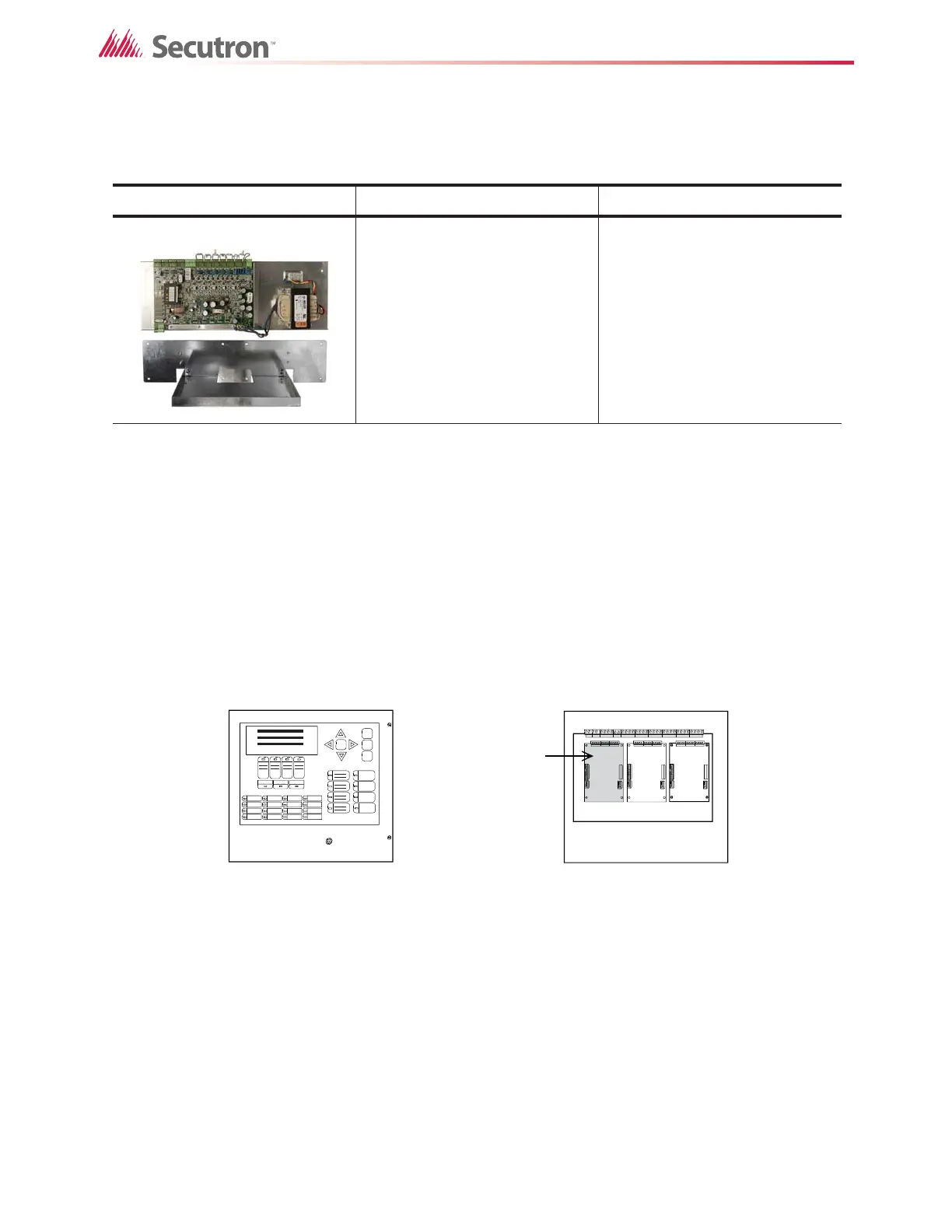

Figure 49 MMX-2003-12NDS mounts in the MMX-BBX-1024DS enclosure
Table 10 Booster Power Supplies
Name Description Mounts in
INX-10AC
Addressable Booster Power
Supply
BB-5014
MMX-BBX-FXMNS
BB-5008(R)
Main Board
Exterior View Interior View
Slot is reserved for PR-300A.
If none is required, this slot
can be used to mount any of
the adder modules.
Supports 3
Adder Modules.
123
