Secutron MMX Series

125
Connecting to a BACnet system

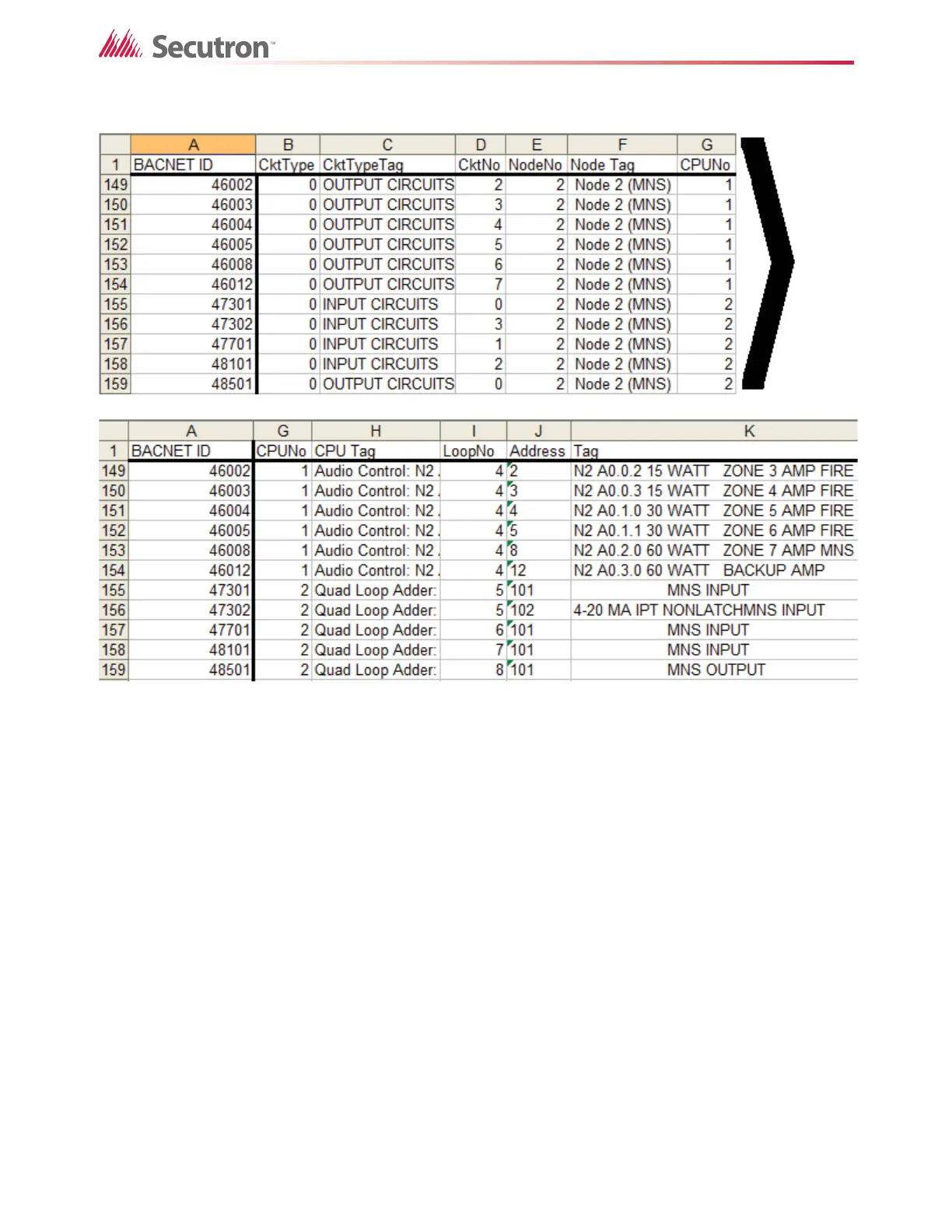

Figure 81 shows the report.
Figure 81 BACnet Report
The first column lists the BACnet ID of each object in the MMX system.
•The NodeNo, CPUNo, and LoopNo columns describe which Node, CPU and Loop
each object is on.
•The Node Tag and CPU Tag columns describe the Node and CPU respectively.
•The Address column is the fire device address.
•The Tag column describes the object.
•The CktType, CktTypeTag, and CktNo columns contain information that MMX uses
internally to identify the object.
