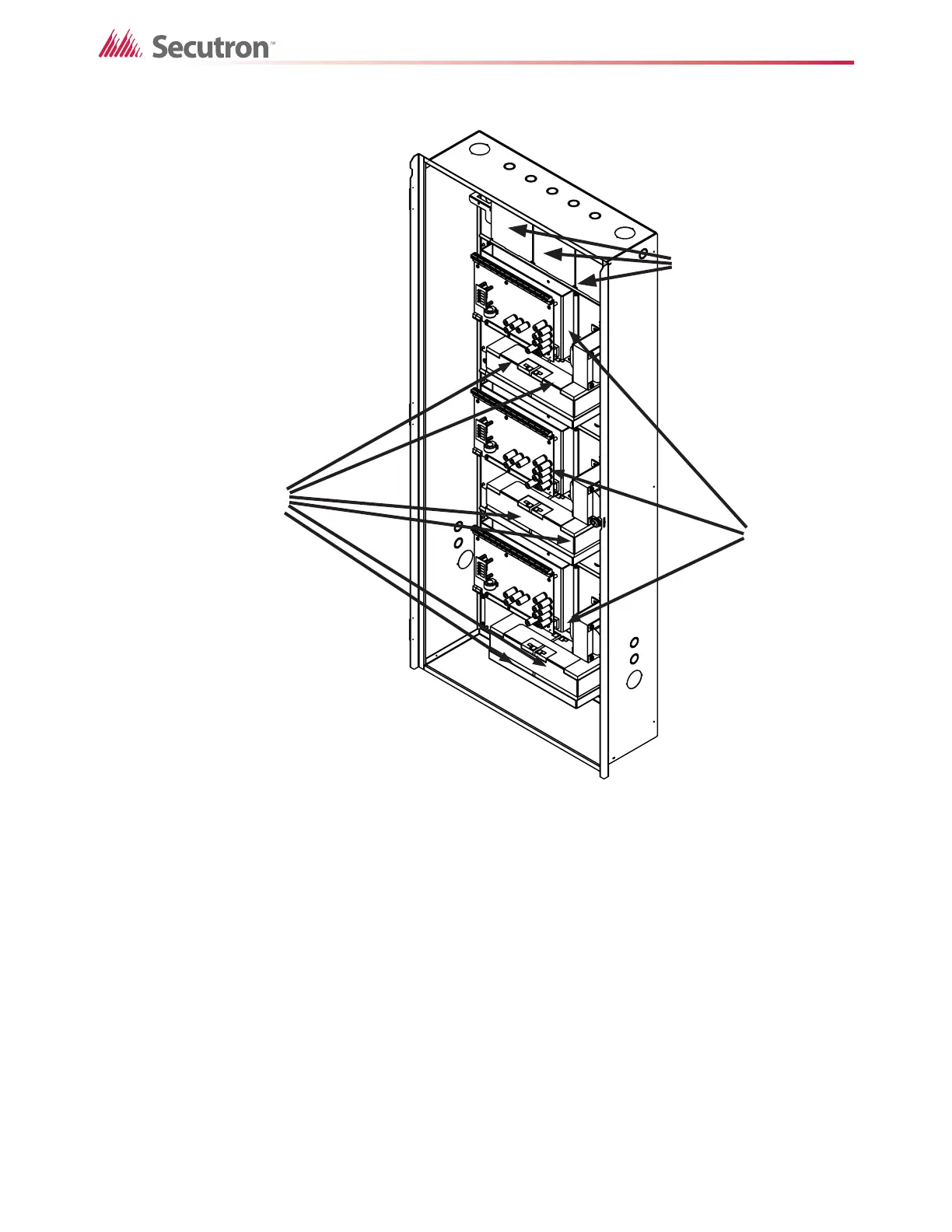

Figure 60 NAC Expander Installation into BBX-MNSXP with CH-994B Internal
Chassis
11.10 MMX-LOC Local Operating Console
These operating consoles are intended for use in mass notification. They can mount 3
modules on the deadfront door. These modules are usually a RAXN-LCD annunciator and a
QMP-5101N paging microphone in conjunction with either a QAZT-5302DS selector panel or a
FDS-008 switch module and IM-10 input module combination. The paging microphone is for
broadcasting announcements, while pre-recorded digital messages can be played using the
selector panel or the switch/input module combination. The figure below shows the setup with
the switch/input module combination.
Batteries
INX-10AC
IM-10A and/or
CR-6A and/or CZ-6A
(up to 6 total )
To Next Page
