Using the Configurator

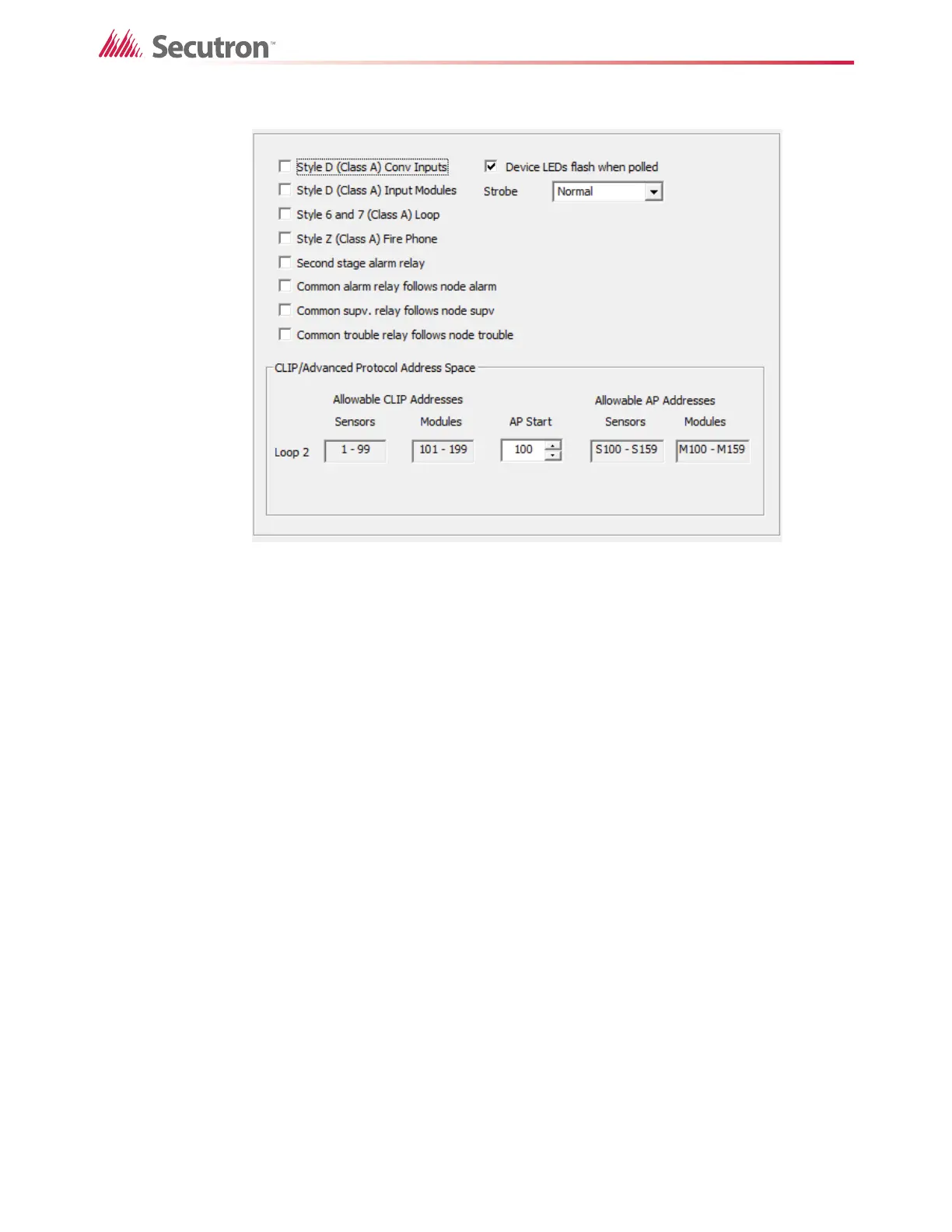

Figure 106 Base I/O
Style D (Class A) Conv
Inputs
Select this box to indicate that the Base IO has Style D
(Class A) conventional inputs.
Style D (Class A) Input
Modules
Select this box to indicate that the Base IO's input
modules' field wiring is Style D (Class A).
Style 6 and 7 (Class A) Loop Select this box to indicate that the Base IO has Style 6
and 7 (Class A) addressable loop(s).
Style Z (Class A) Fire Phone Select this box to indicate that the wiring from an
addressable fire phone module and the handset is Style Z
(Class A).
Second stage alarm relay Select this box to set the alarm relay to operate on second
stage alarm. Disabled unless Two Stage checked.
Common alarm relay
follows node alarm
Select this box to set the alarm relay on this node to
activate on node level alarm. Mutually exclusive with
Second stage alarm relay.
Common supv. relay follows
node supv
Select this box to set the Supervisory relay on this node to
activate on node level supervisory.
