Secutron MMX Series User Manual

201
Using the Configurator
19.43.2 Adding a fire phone module
To add a fire phone module
1. Select the loop that you want to add a device to.
2. Click Insert > Add Device.
The Add Device window appears.

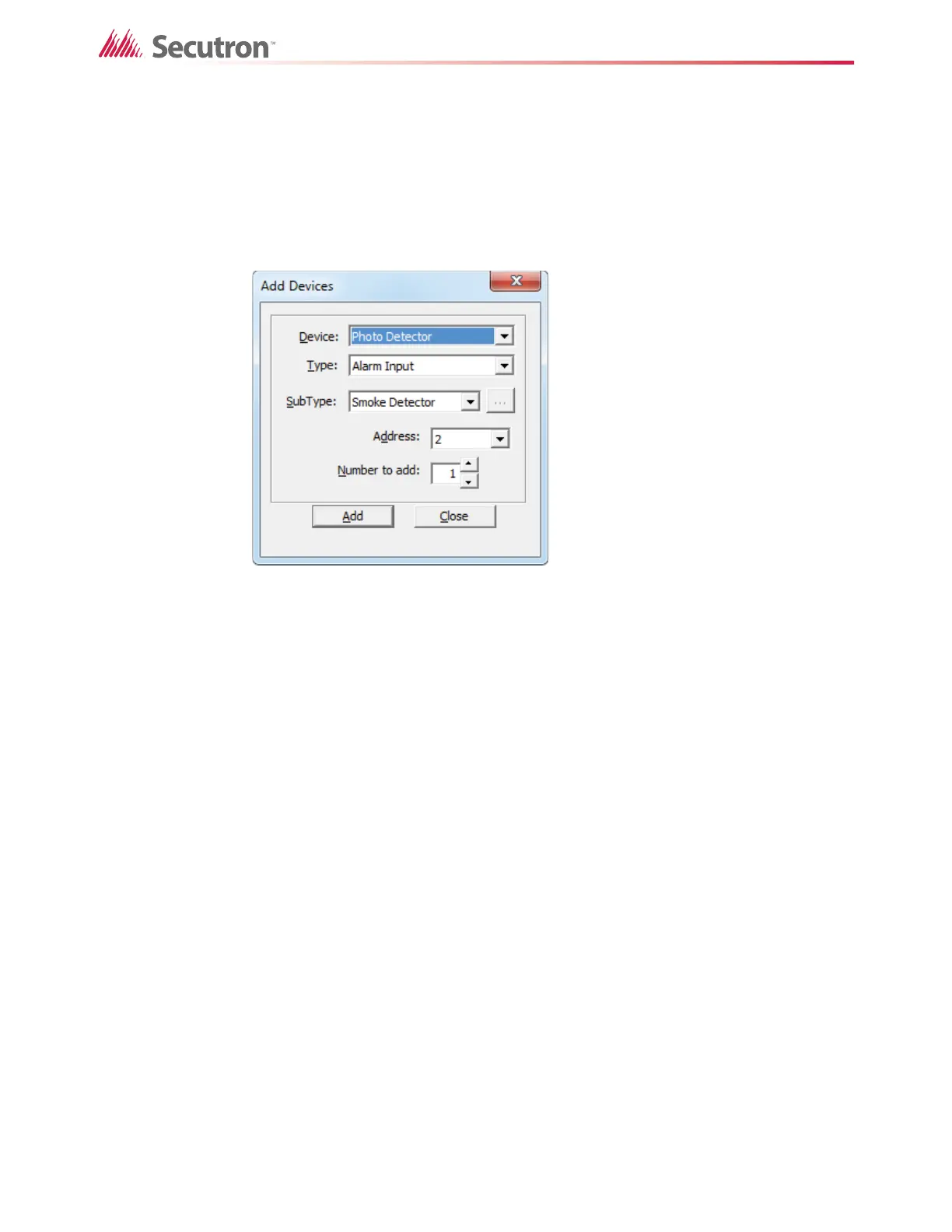

Figure 147 Add Device
3. Select Firephone Ipt in the Type pulldown menu.
4. Click the Add button.
19.43.3 Adding master telephones (QMT-5302N(V))
You can add a maximum of one master telephone to each RAXN-LCD annunciator or to the
base panel's main display. The master telephone uses one frame.
To add a master telephone
1. Select the annunciator or display adder that you want to add the telephone to.
2. Click Insert > Add Display Adder.
3. Select Master Telephone in the Select Adder Type menu.
4. Select the header (connector) in the Select Header menu.
5. Click Add.
6. Click Close.
19.43.4 Adding telephone/page selectors (QAZT-5302(DS))
You can add any number of telephone/page selector adders to each RAXN-LCD annunciator
or to the base panel's main display, up to the maximum frame count for an annunciator. An
annunciator has 14 frames, and a telephone/page selector uses 2 frames.
