Secutron MMX Series User Manual

74

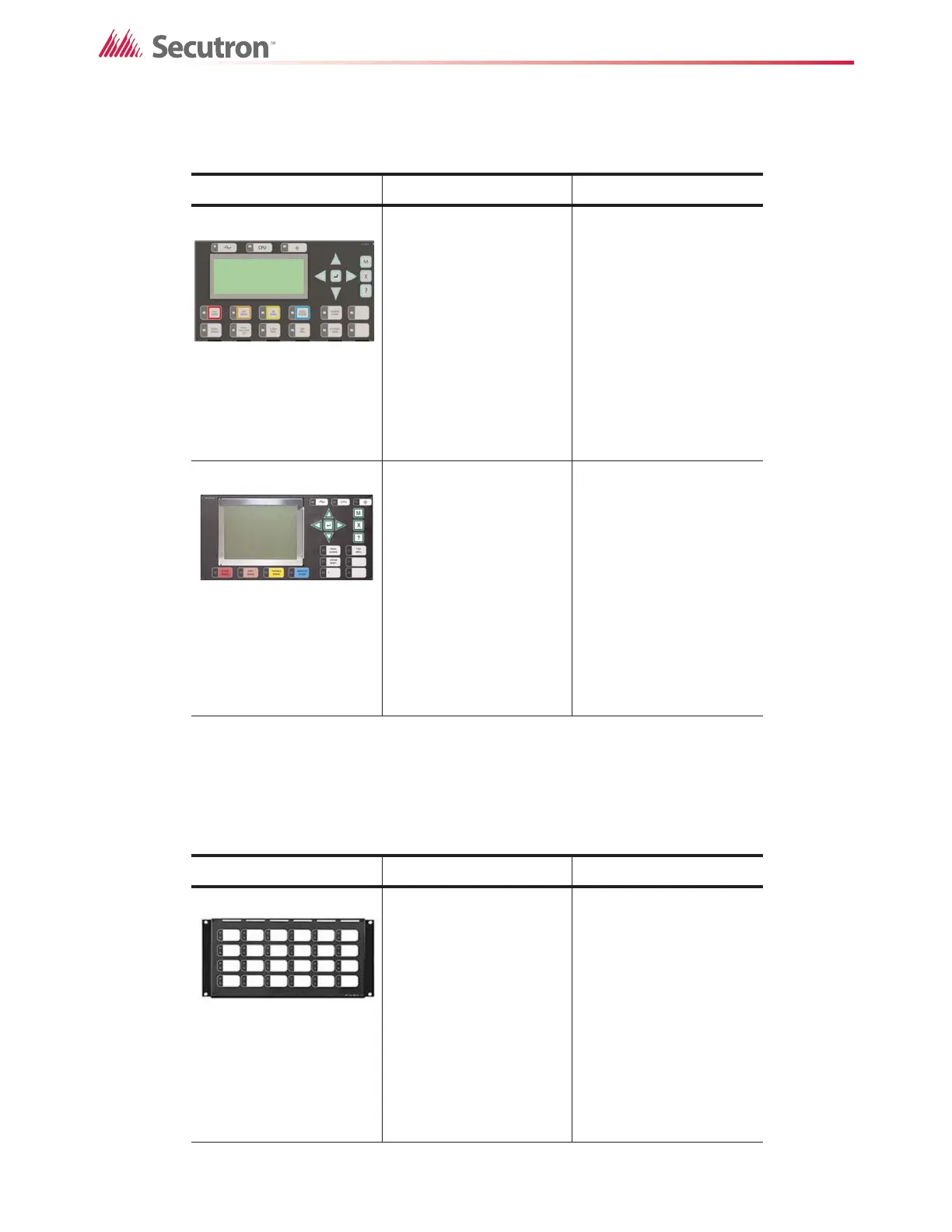

Hardware Layouts
11.3.1 Main Displays
11.3.2 Programmable Modules
Programmable modules are also called display adders, display boards, or display modules.
They can be installed on the door of any unit that has display module slots.
Table 4 Main Displays
Name Description Mounts in
DSPL-420
Narrow Main Display (4
lines by 20 characters)
MMX-BBX-1072A(R)DS
BB-5008(R)
BB-5014(R)
MMX-BBX-FXMNS
MMX-2003-12NDS
MMX-2009-12NDS
MMX-2017-12NDS
ECX-0012
MMX-2000MNS
DSPL-2440
Narrow Graphic Display
MMX-BBX-1072A(R)DS
BB-5008(R)
BB-5014
MMX-BBX-FXMNS
MMX-2003-12NDS
MMX-2009-12NDS
MMX-2017-12NDS
ECX-0012
MMX-2000MNS
Table 5 Display Boards
Name Description Mounts in
IPS-2424DS
Zone Bypass, Adder
Annunciator (48 Display
Points)
MMX-2003-12NDS
MMX-2003-12NXTDS
MMX-2017-12NDS
MMX-2009-12NDS
ECX-0012
BB-5008(R)
BB-5014
MMX-BB-1000 series
MMX-BBX-FXMNS
