It defines the operation mode of the drive system based on the analog command.
Please refer to the Analog Current Operation Mode and Analog Velocity Operation Mode.

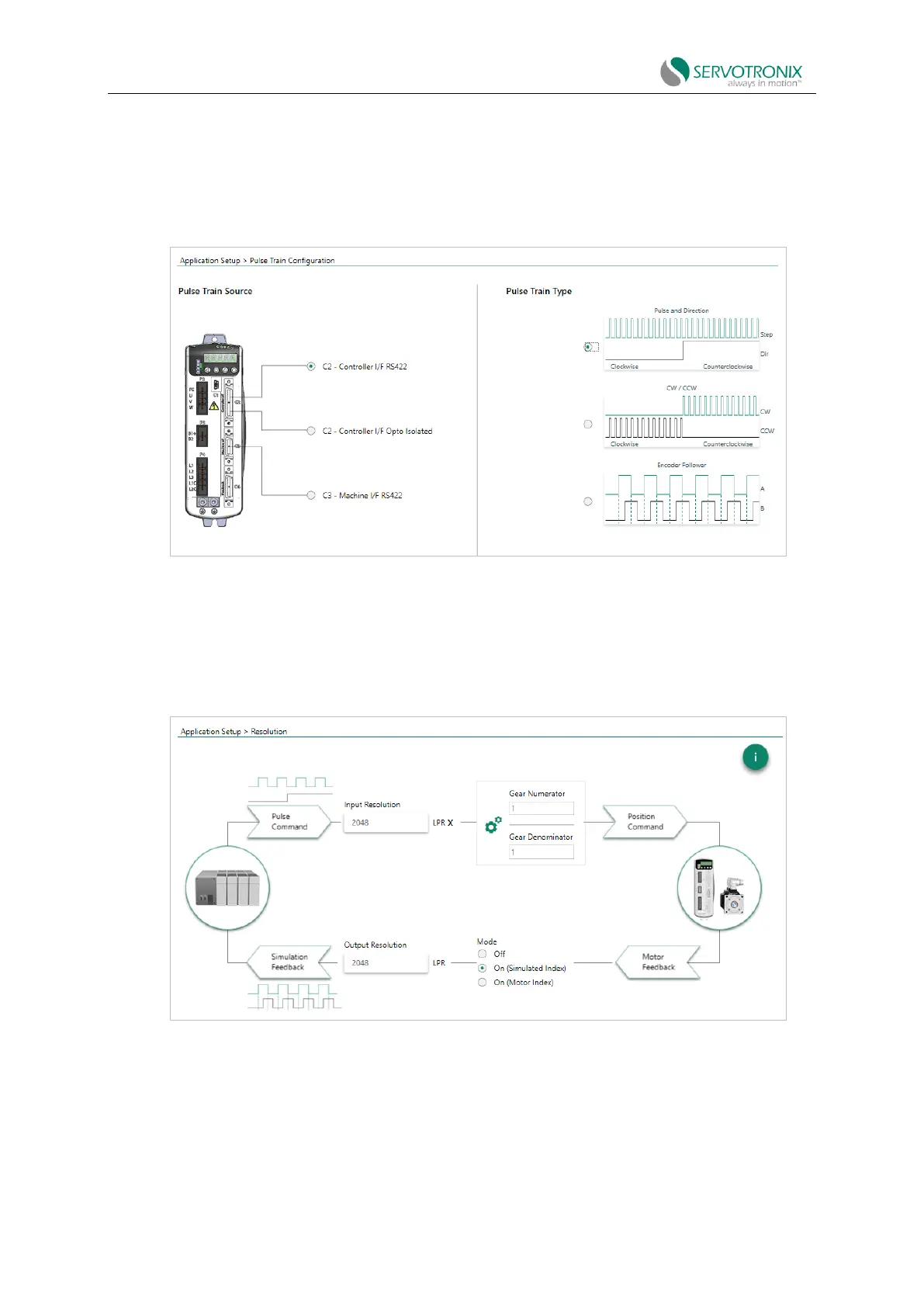

Application Setup - Pulse Train
Figure 6-5 ServoStudio2 - application setup - pulse train
It defines the driving method of the drive system working according to a gearing (pulse train).
Please refer to the Gearing/Pulse Train Operation
Application Setup - Resolution
Figure 6-6 ServoStudio2 - application setup - resolution (pulse train)
It defines the resolution, gear ratio and feedback parameters of the drive system working
according to a gearing (pulse train).
Please refer to the Gearing/Pulse Train Operation
