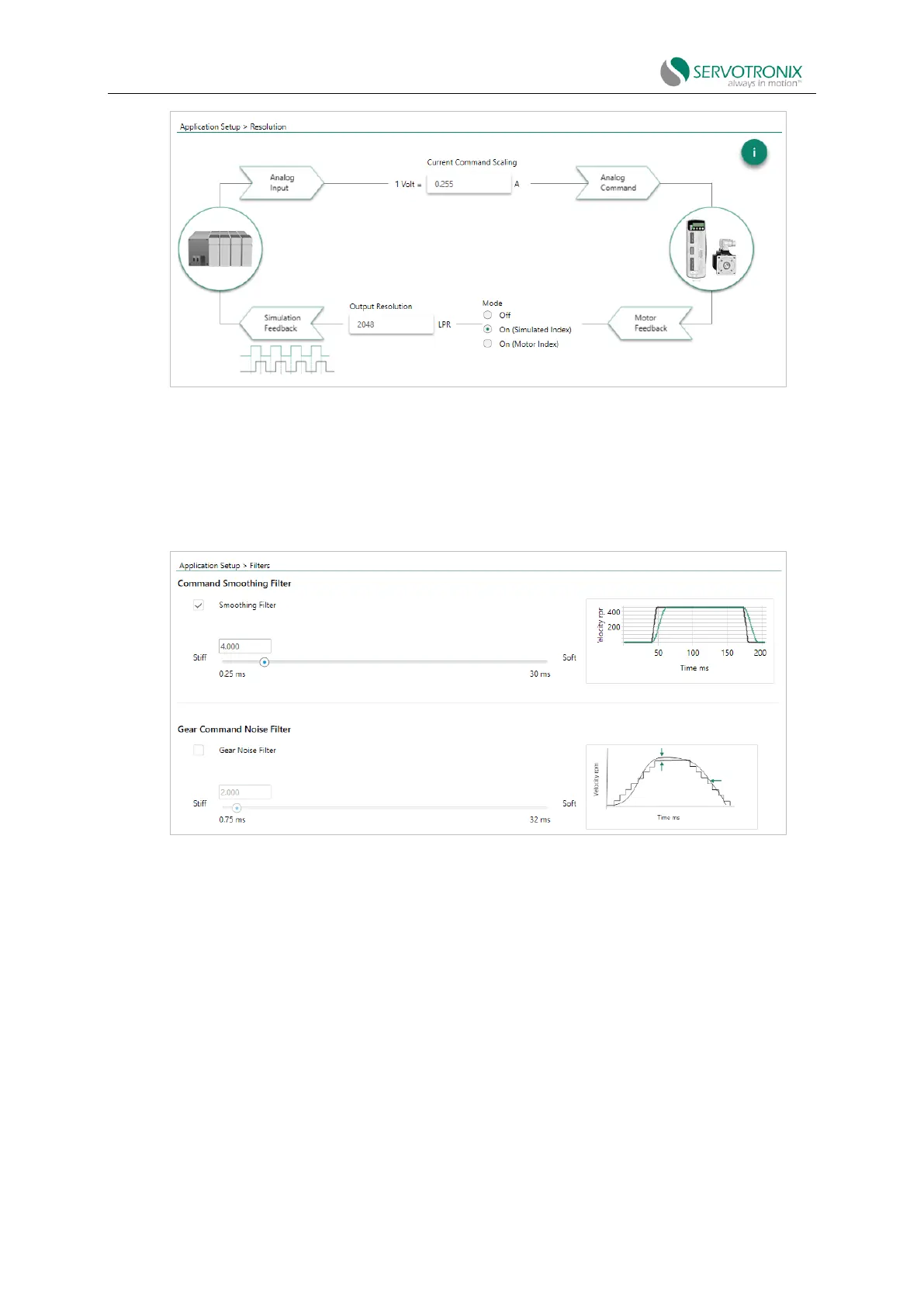

Figure 6-7 ServoStudio2 - application setup - resolution (analog command)
It defines the resolution, gear ratio and feedback parameters of the drive system working
according to the analog command.
Application Setup - Filter
Figure 6-8 ServoStudio2 - application setup – filter (pulse train)
It defines the resolution, gear ratio and feedback parameters of the drive system working
according to a gearing (pulse train).
