Application Setup
—126
—

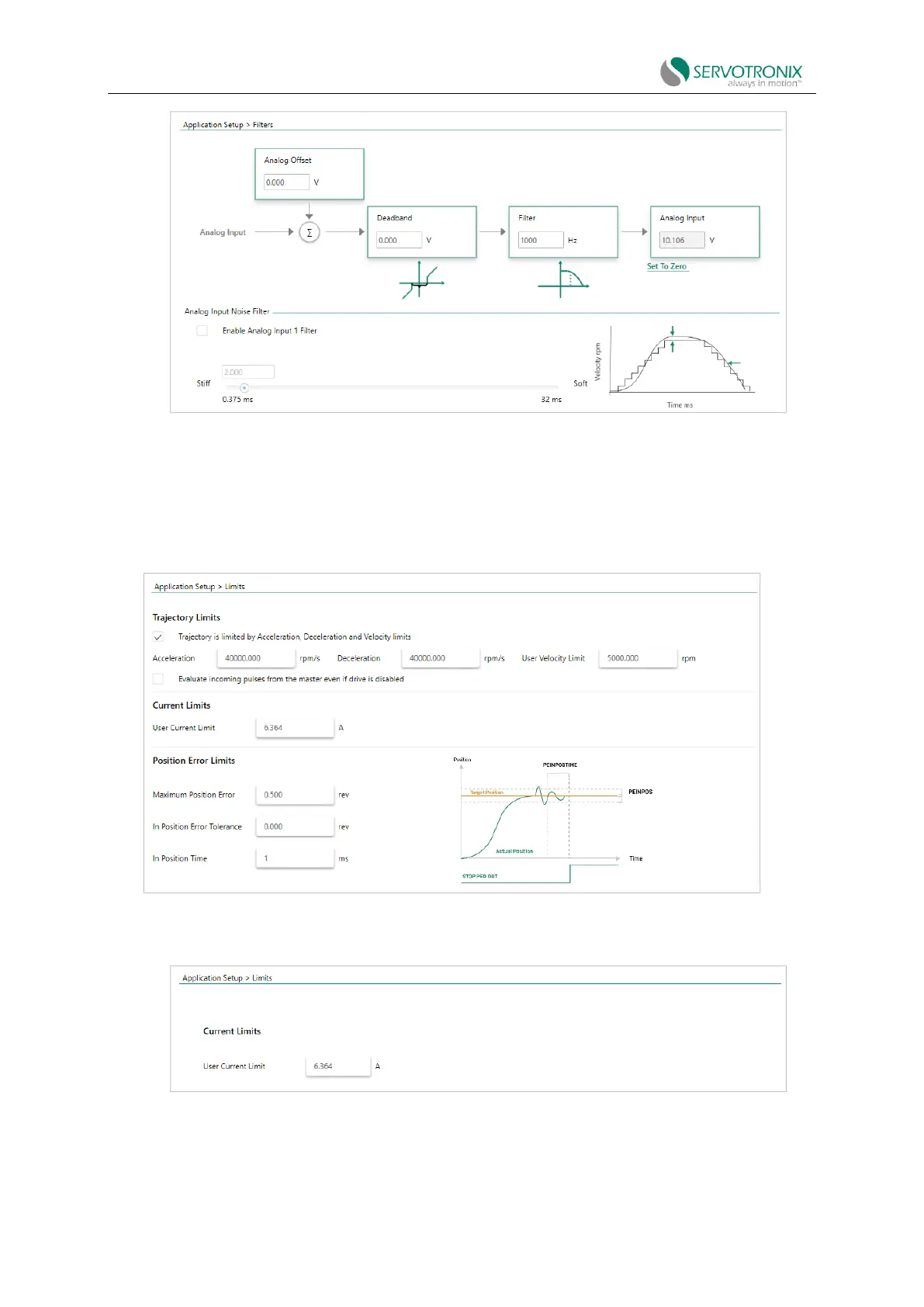

Figure 6-9 ServoStudio2 - application setup - filter (analog command)
It defines the filtering parameters of the drive system working according to the analog
command.
Application Setup - Limit
Figure 6-10 ServoStudio2 - application setup - limit (pulse train)
It defines the limit parameters of the drive system working according to a gearing (pulse train).
Figure 6-11 ServoStudio2 - application setup - limit (analog command)
It defines the limit parameters of the drive system working according to the analog
command.
