You may need to manually set the moment of inertia (step 4 - option: load/motor inertia ratio
(LMJR) value) to get better performance, for example:
⚫ If the load/motor ratio is very large.
⚫ If you know the exact value of the load inertia connected to the motor.
⚫ If the load inertia changes.
⚫ If using a multi-axis robot.
Step - movement
Note: movement steps are only available if the drive (internal) is a gear generator.

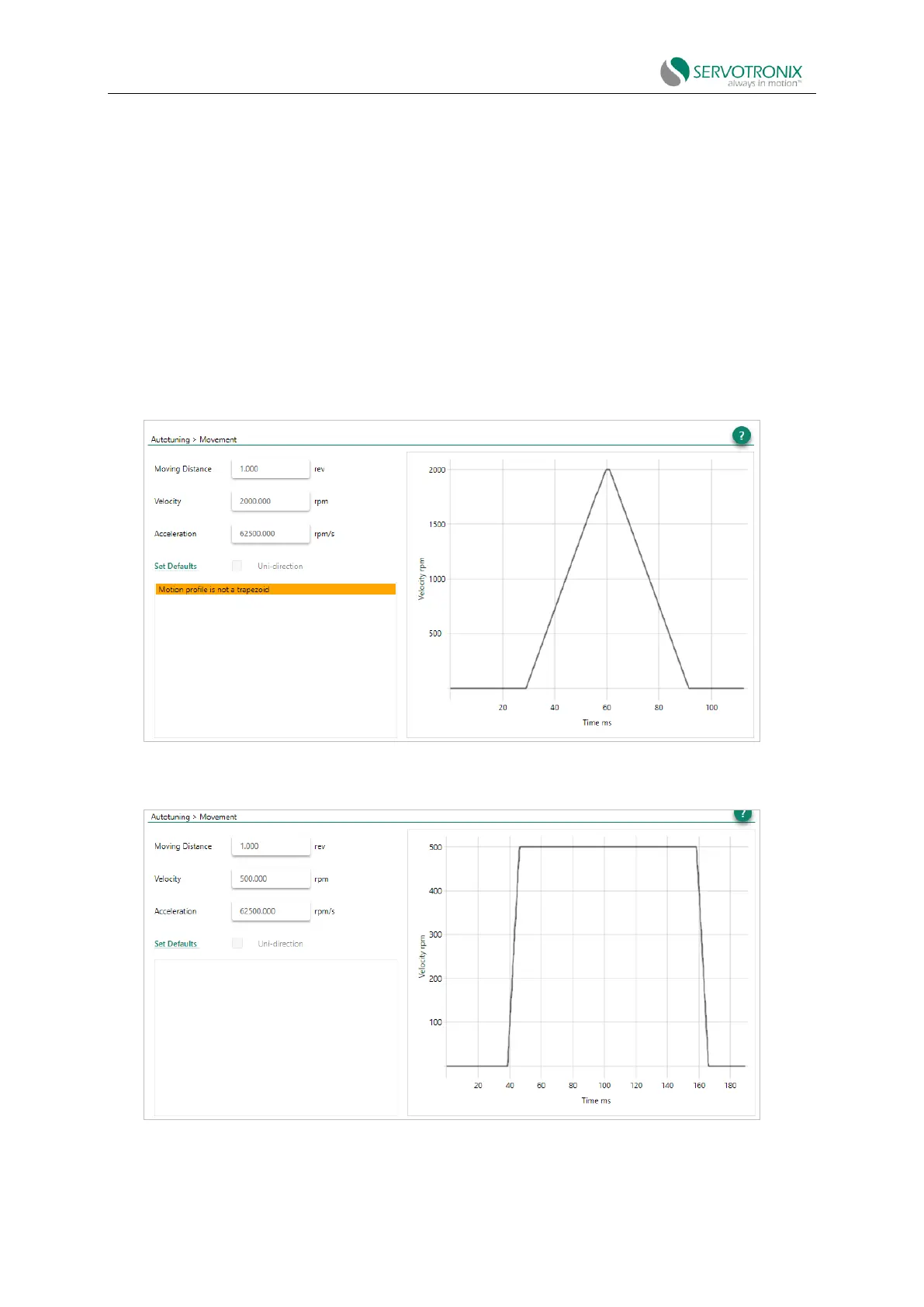

Figure 8-4 Autotuning - transmission profile. Not applicable
Figure 8-5 Autotuning - transmission profile. Applicable
