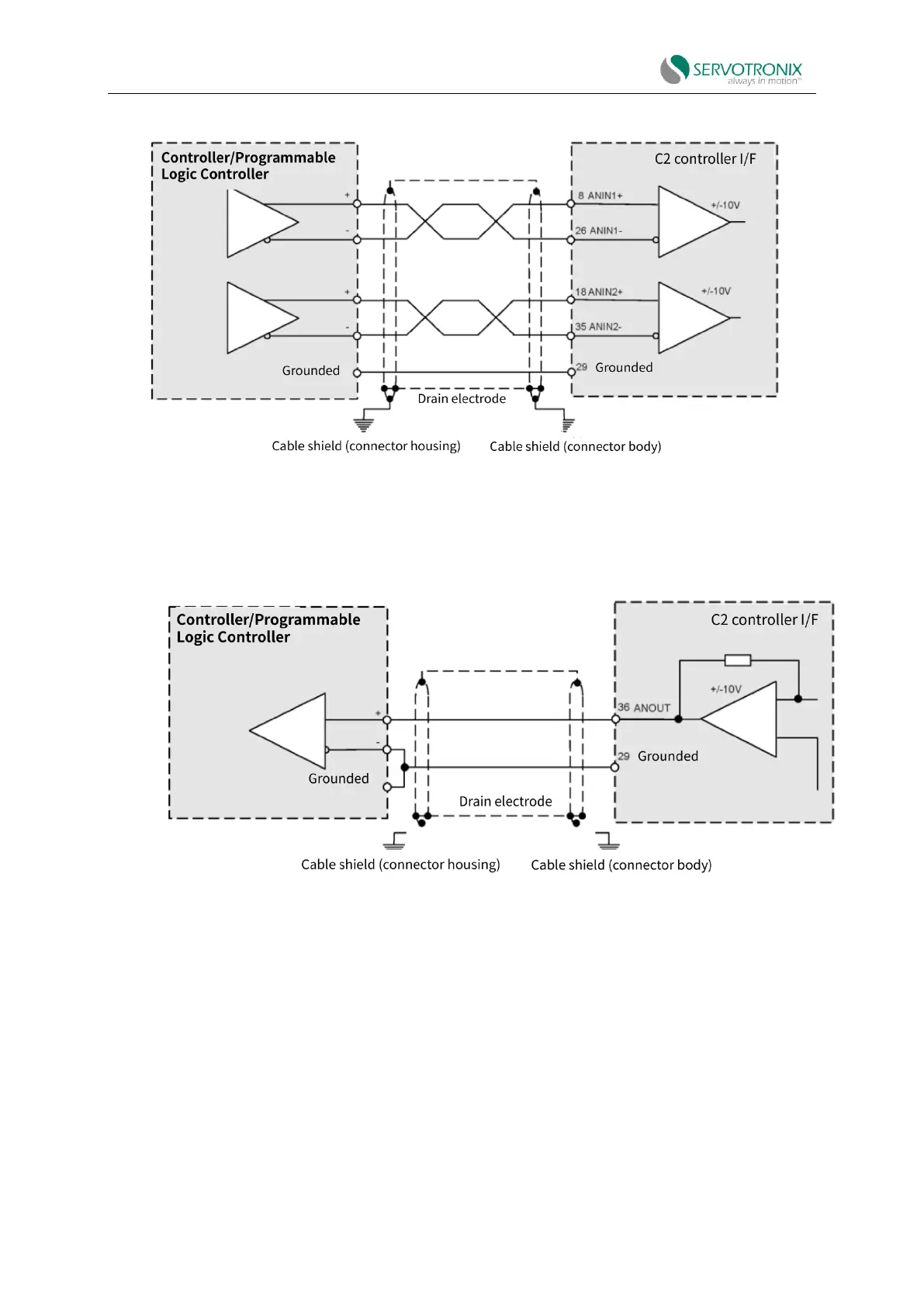

Figure 4-22 Analog input wiring - C
Figure 4-23 Analog output wiring - C2
Pulse and direction optoisolated wiring - C2
CDHD2S can connect DC voltage 24V single-ended signal PLC to the drive.
This type of signaling requires fast digital input on the CDHD2S controller interface (C2).
For this configuration, CDHD2S inputs 5 and 6 must be set to INMODE17 and 18 respectively.
(Applicable/approved in GEARMODE0, 1\2).
⚫ The pulse signal is connected to fast digital input 5 on pin 32.
⚫ The direction signal is connected to fast digital input 6 on pin 15.
