驱动器设置

—67—

⚫ The cable shield on the PLC side can be connected to any available shielded connector.

⚫ The cable shield on the CDHD2S side can be connected to the housing of the 36-pin connector.

Note: The user should provide DC voltage 24V power supply.

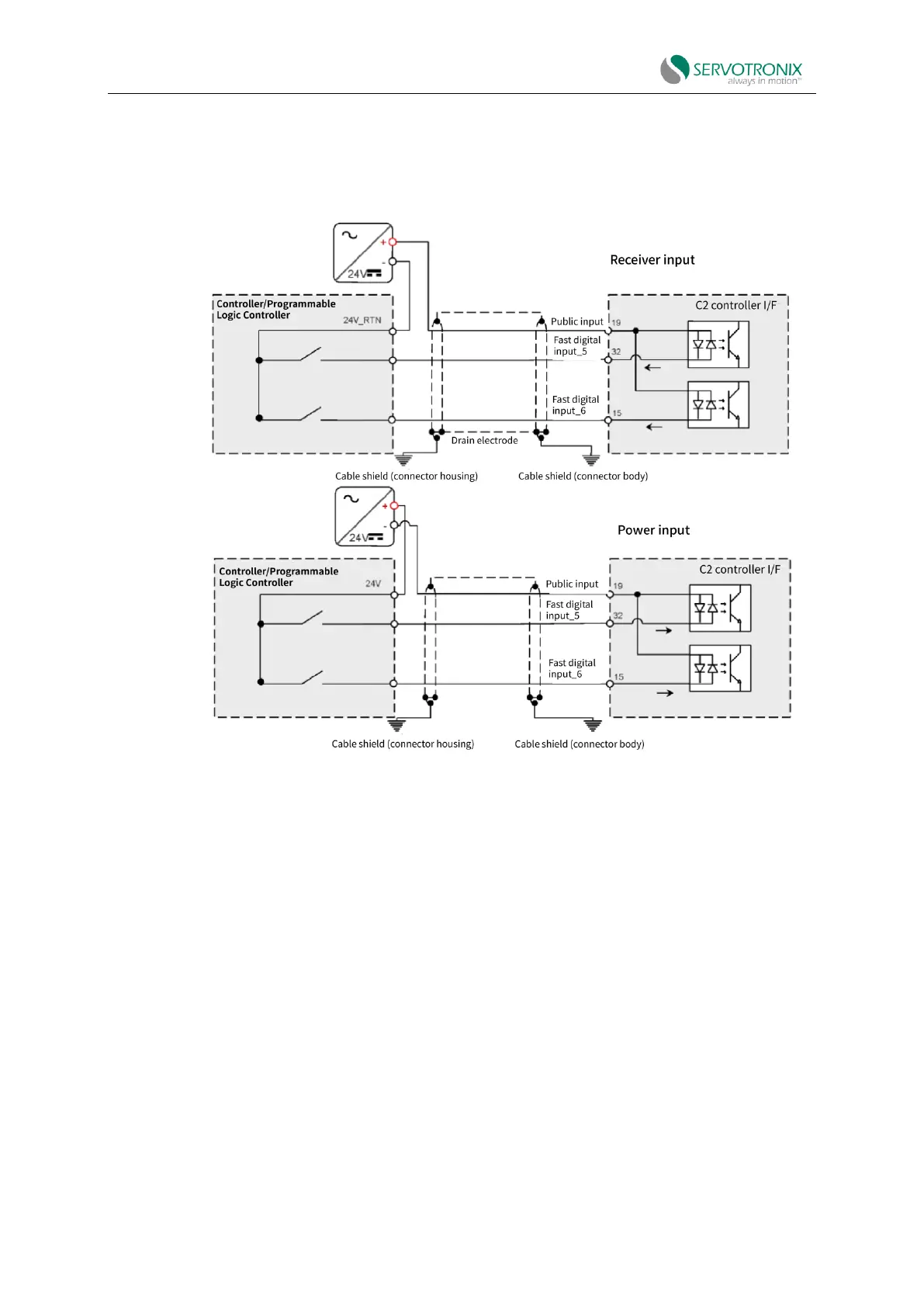

Figure 4-24 Pulse and direction optoisolated input wiring - C2
