Pulse and direction optoisolated input wiring - C2
When using the CDHD2 controller interface (C2):
⚫ The pulse signal is received from the controller or PLC on pins 28 and 11.
⚫ The direction signal is received from the controller or PLC on pins 9 and 27.

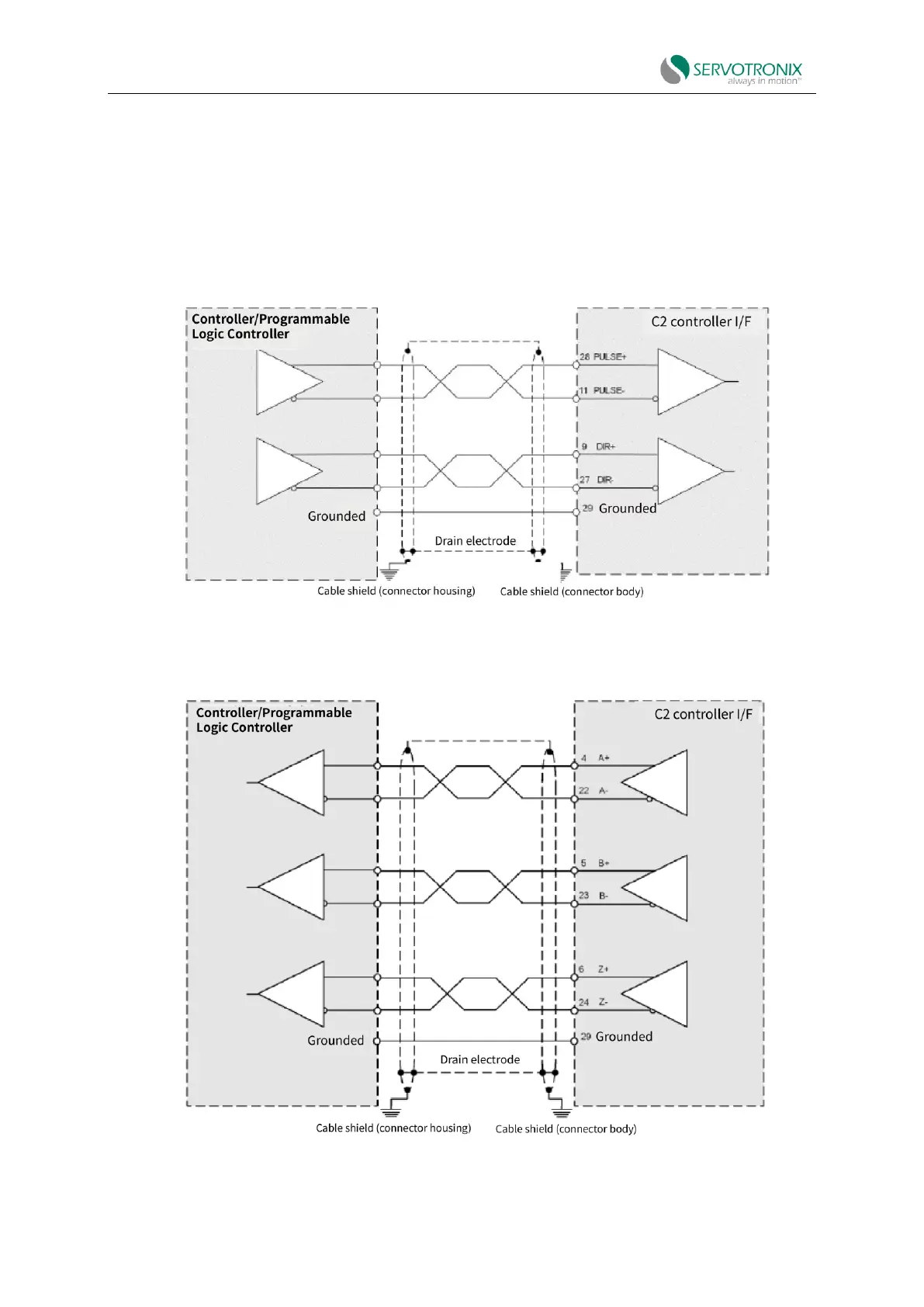

Figure 4-25 Pulse and direction optoisolated input wiring - C2
Figure 4-26 Analog encoder equivalent output wiring - C2
