9.1 Installation
9-5
CBM-20A/20Alite
9
9.1.3 Power Supply Connection
The following table shows the electrical voltage, power consumption, and frequency.
1: 100 VA if the AC output connectors are not used.
2: Connect the instrument to a power outlet that is equipped with a circuit breaker that shuts off the
current at the described value or less.
Verify that the power outlet to be used for connection has sufficient capacity. If capacity is
insufficient, a power outage or voltage drop can occur, affecting not only this instrument, but
other instruments connected to the same power supply.
Connection to Power Outlet
Part No.
Power Supply Voltage
(indicated on the instrument)
Consumption Frequency
Rated Breaking
Capacity
2
S228-45012-31
/41
AC100-120 V (100-120 V
)
400 VA
1
50-60 Hz 40A
S228-45012-32
/42
AC100-120 V (100-120 V
)
400 VA
1
50-60 Hz 40A
S228-45012-38
/46/48/58
AC220-240 V (220-240 V
)
400 VA
1
50-60 Hz 40A
WARNING
Handle the power cord with care, and
observe the following precautions to
avoid cord damage, fire, electric shock
or instrument malfunction.
• Do not place heavy objects on the
cord.
• Keep hot items away from the cord.
• Do not modify the cord.
• Do not bend the cord excessively or
pull on it.

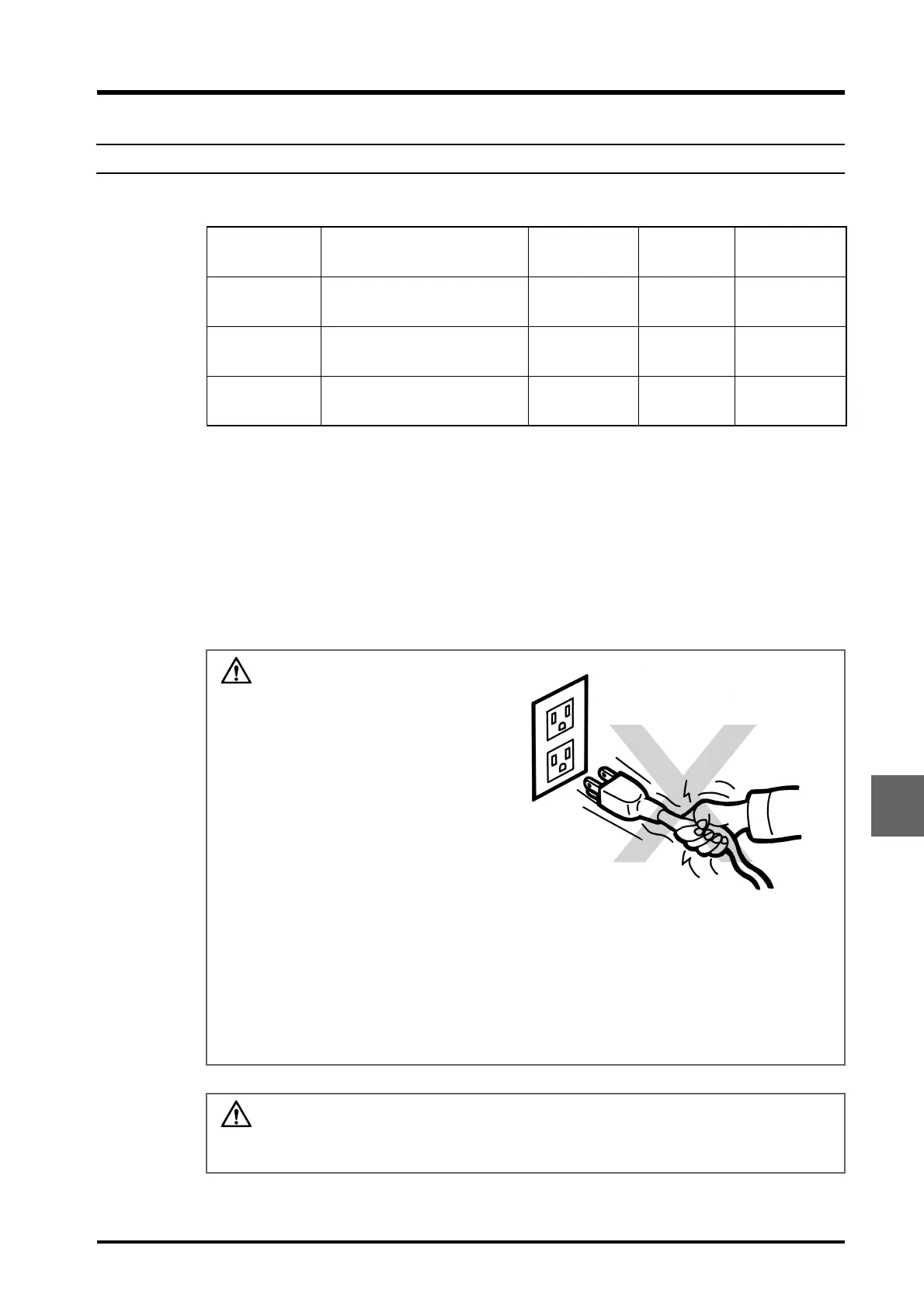

• To unplug the instrument, pull the plug
itself, NOT the cord.
If the cord is damaged, replace it immediately.
CAUTION
Before plugging in the instrument, make sure that the power switch is OFF.
To Next Page
