9.2 Connecting the System Controller and Components
9-23
CBM-20A/20Alite
9
Setup from Internet Explorer
1
Turn ON the power to the system controller and Chromatopac.
2
Start up Internet Explorer and login to the system controller.
3

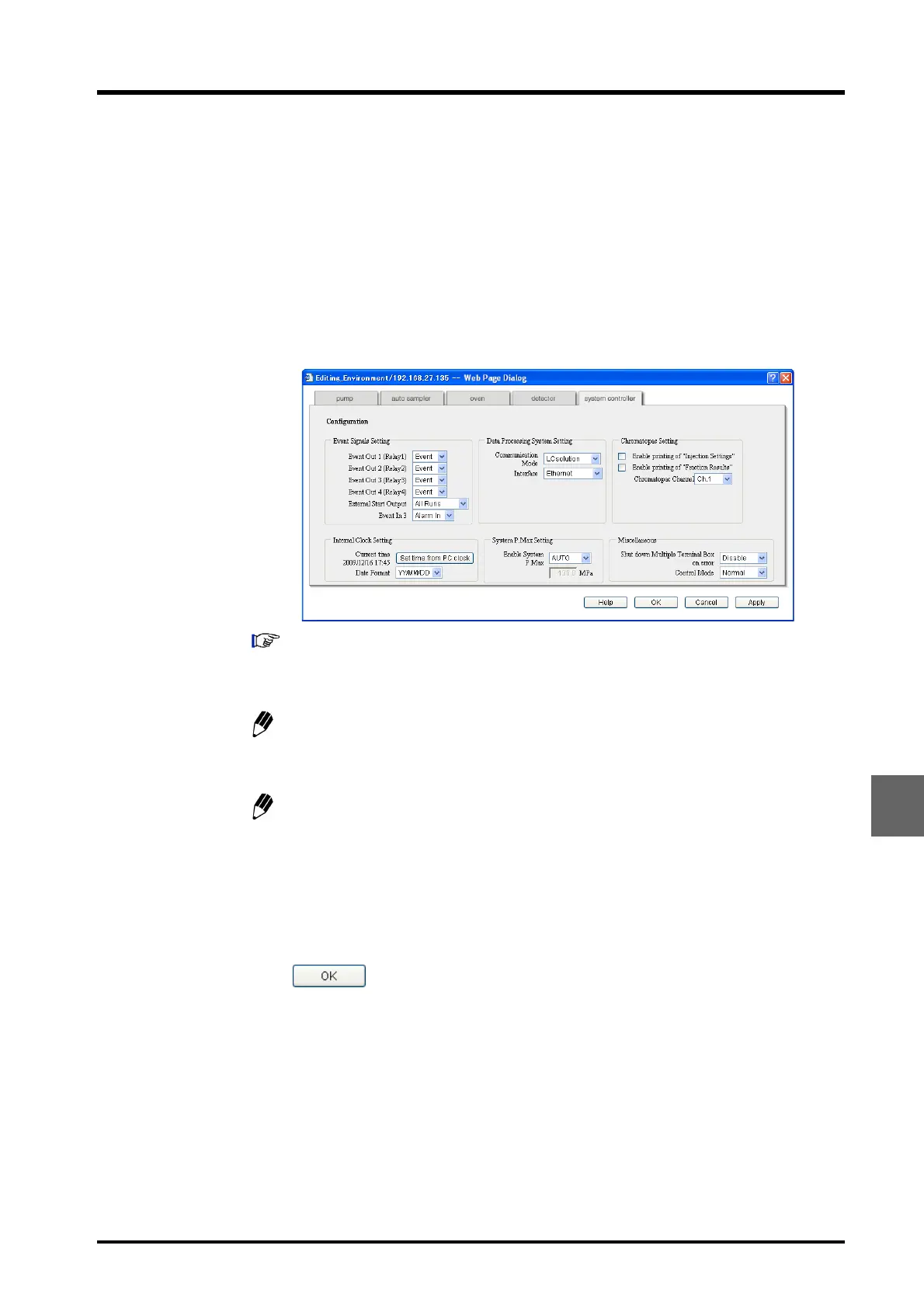

Display the "System Controller" tab page in the "Configuration Parameter" window.
"4.2 Creating Method Files" P. 4-10
4
Select the communication mode from the [Communication Mode] pull-down menu.
Select the connected Chromatopac model as the communication mode.
5
Select the interface from the [Interface] pull-down menu.
Select Opt-Link (PAC) if the Chromatopac is connected via an optical-link
connector (OPT LINK). Select RS-232C if the Chromatopac is connected via the
RS-232C connector.
6
Enter the channel number for the Chromatopac in the [Chromatopac Channel] field
under [Chromatopac Setting].
7
Click to save the settings.
