SICK microScan3 User Manual

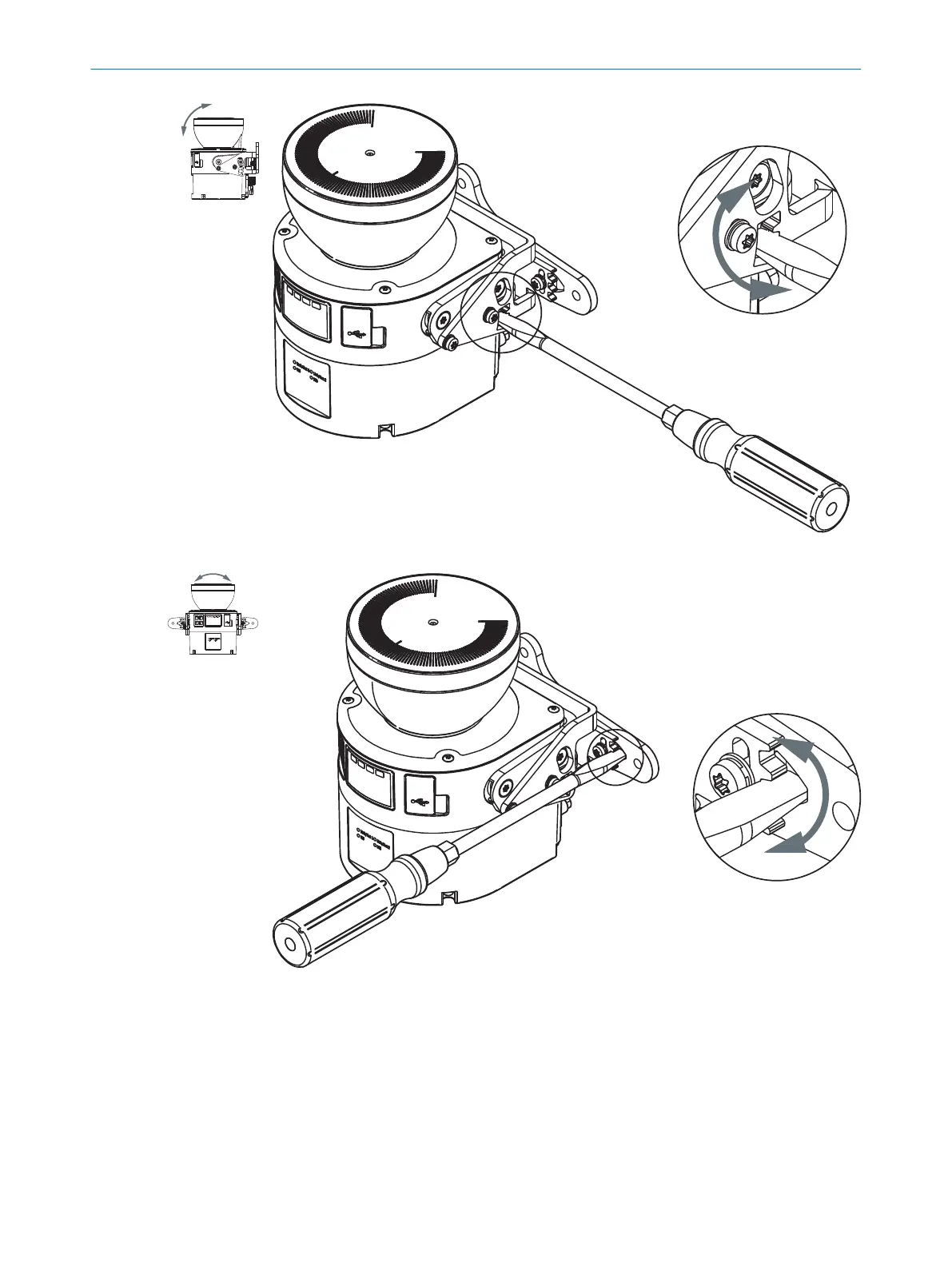

Figure 79: Alignment about the transverse axis
Figure 80: Alignment about the depth axis
b
Af
ter alignment, tighten the screws with the specified tightening torque.
8.3 Switching on
After switching on, the safety laser scanner performs various internal tests. The OFF
LED illuminates continually. The ON LED is off.
When first switching on the safety laser scanner, the start process can last up to
100 seconds. When switching on again, the required start time depends on the scope
of the configuration data. The start process then takes about 10 to 30 seconds.
8 C
OMMISSIONING
134
O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET 8021219/1ELL/2022-01-21 | SICK
Subject to change without notice
