NOTICE
Enc
losure rating IP65 only applies if the safety laser scanner is closed and the system
plug is mounted.
b
Mount the system plug and the cover plate.
b
Close each M12, RJ45 and SCRJ plug connector on the safety laser scanner using
an IP65 rated male cable connector or a protective cap.
°
Tightening torque for M12 plug connector: 0.4 Nm … 0.6 Nm.
°
Tightening torque for M12 protective caps: 0.6 Nm … 0.7 Nm.
b
Mount the optics cover.
NOTICE
If t
he system plug is mounted with excessive force, the contacts can break or bend.
b
Plug in the system plug carefully.
b
Do not force it.
Tool required:
•
T
X20 Torx wrench

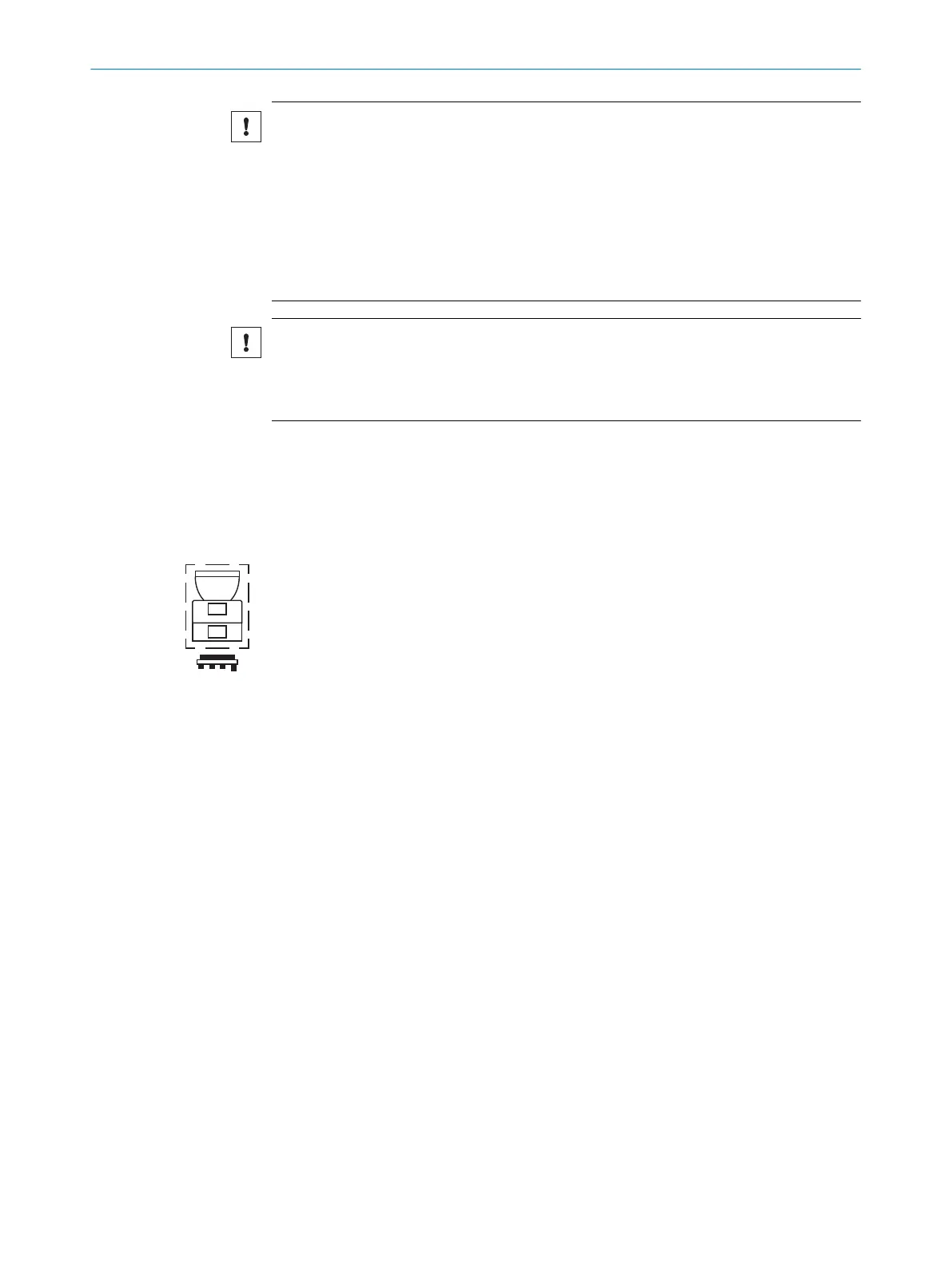

10.4.1 Replacing the safety laser scanner without system plug
Overview
In many cases, you can reuse the existing bracket and the existing system plug. Detach
t
he defective safety laser scanner from the bracket and the system plug. Then, mount
the new safety laser scanner on the bracket and the system plug. When the new safety
laser scanner is switched on for the first time, it reads the configuration from the
system plug and can be used without having to be reconfigured.
Approach
1. Make sure that the environment is clean and clear of fog, moisture, and dust.
2. Unscrew screws in the system plug and remove the system plug from the defective
safety laser scanner.
3. Unscrew the fixing screws and remove the defective safety laser scanner.
4. Mount the system plug on the new safety laser scanner, see "Replacing the system
plug", page 147.
5. Mount the new safety laser scanner, see "Mounting", page 76.
6. Check the effectiveness of the protective device.
°
Generally, the protective device is checked exactly as during commissioning,
see "Check during commissioning and modifications", page 135.
°
If, during project planning, the possible tolerances of the devices have been
considered and it is ensured that neither the configuration nor the wiring or
the alignment of the safety laser scanner have been changed, a function test
is sufficient, see "Thorough check of the principal function of the protective
device", page 72.
Complementary information
In certain cases, you can no longer log into the device with Safety Designer after device
exchange.
20)
If you would like to log into the device, e.g. to change the configuration,
you have to reset the password with help from SICK. The device works with the existing
configuration even without changing the password.
20)
T
his case can only occur if you replace a device with old rights management with a device with new rights management or vice versa.
Devices with newer functional scope use the new rights management.
10 M
AINTENANCE
146
O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET 8021219/1ELL/2022-01-21 | SICK
Subject to change without notice
