11.4.4 PROFINET diagnostics

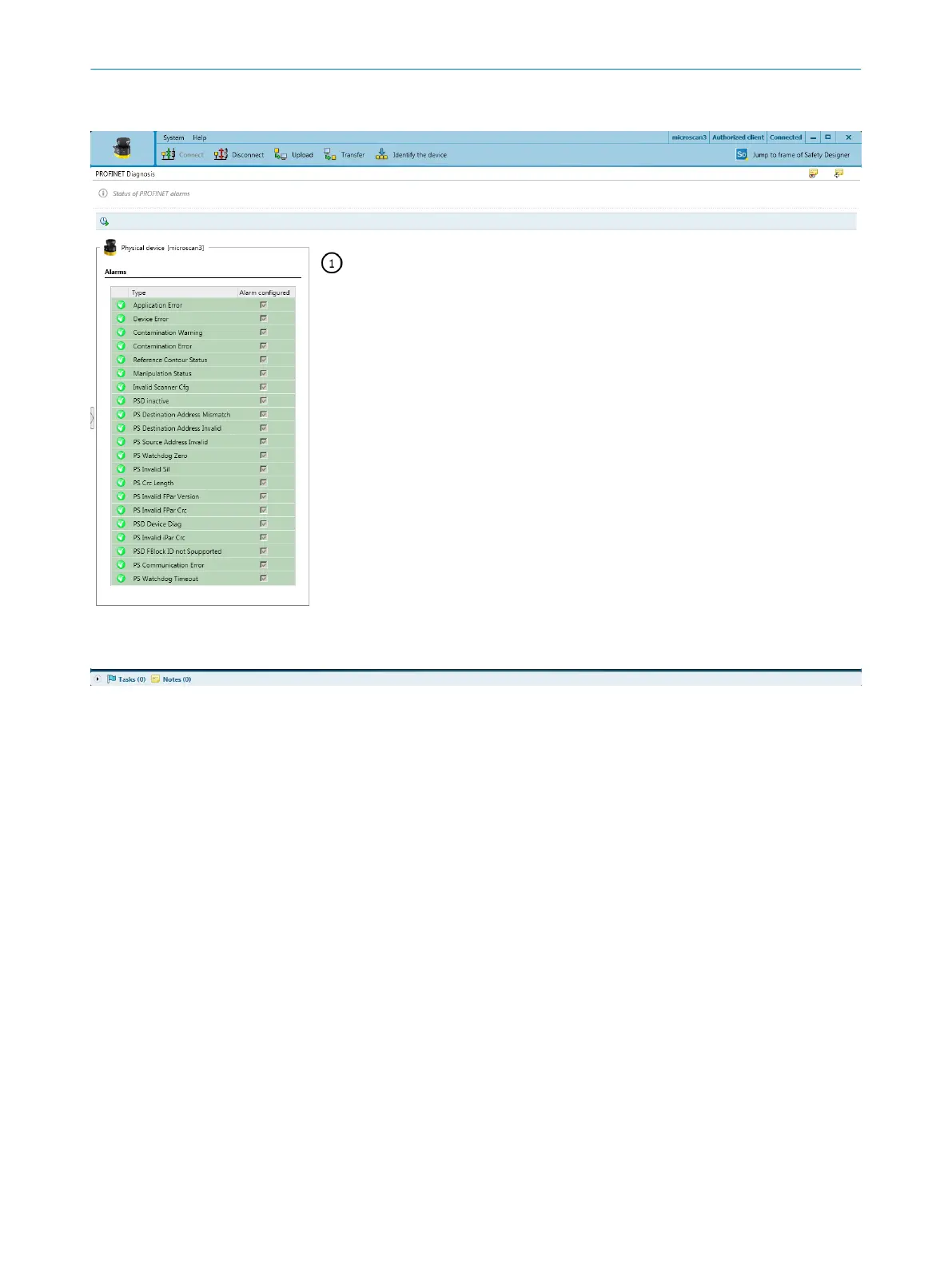

Figure 92: PROFINET diagnostics
1
Table of all available alarms
When you click on the clock icon, the Safety Designer displays the status of all
P
ROFINET alarms from the safety laser scanner. When the alarm is sent to the control‐
ler (see "PROFINET alarms", page 99), a check mark is displayed in the Alarm configured
column.
The alarm colors have the following meanings:
•
Red: Alarm was triggered
•
Green: No alarm
11 T
ROUBLESHOOTING
158
