SICK microScan3 User Manual

Settings
Y
ou have the following options in the Settings area:
•
Set the display brightness and contrast.
Complementary information
T
he display language is set using Safety Designer during configuration. The display
language and the configuration cannot be changed using the pushbuttons on the
display.
11.3 Fault indication on the display
Overview
If t
here is a fault, the display shows a warning symbol, a type of fault and a fault code
on a red flashing background.

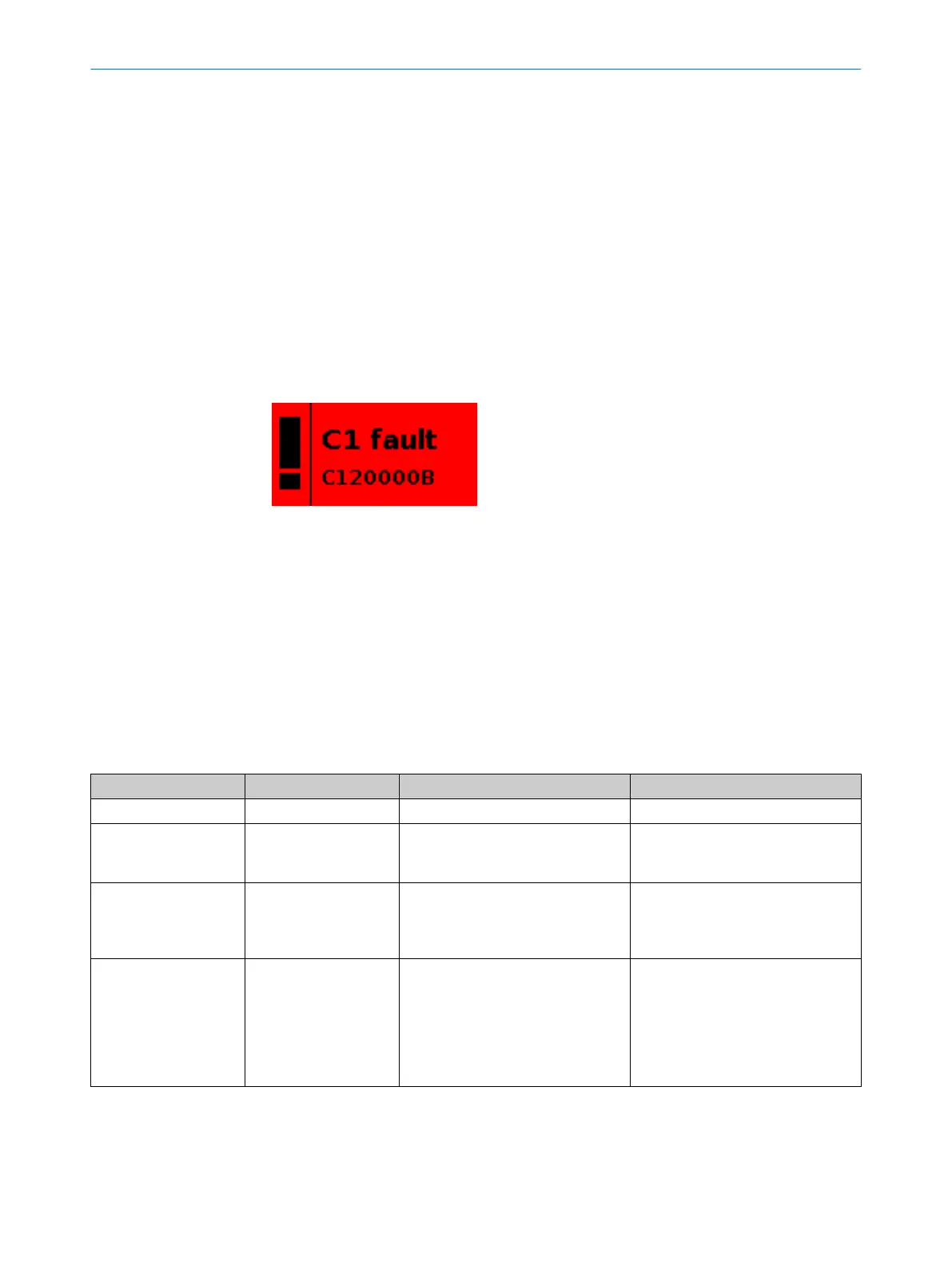

Figure 88: Fault display
•
T
he two-character fault type will help you during troubleshooting.
•
The eight-character fault code in the bottom line helps SICK support during the
detailed fault analysis.
•
By pressing any pushbutton, you will obtain more information about the fault and
for troubleshooting. You can use the arrow buttons to change to further pages with
additional information.
•
You will find detailed information in Safety Designer’s message history about the
individual faults and information about events not shown by the display.
Fault indication on the display
T
able 25: Fault types
Fault type Brief description Cause Troubleshooting
C1 Faulty configuration The configuration is faulty.
b
R
econfigure the device.
C2 Incompatible configura‐
t
ion
The configuration in the system plug
does not match the device’s func‐
tionality.
b
Chec
k device variant.
b
Replace or reconfigure the
device.
C3 Incompatible firmware The configuration in the system plug
doe
s not match the device’s firm‐
ware version.
b
Chec
k the firmware version of
the device.
b
Replace or reconfigure the
device.
E1 Error in the safety laser
sc
anner
The safety laser scanner has an
internal error.
b
P
erform a device restart using
the display or Safety Designer or
interrupt the voltage supply for at
least two seconds.
b
Replace the safety laser scanner
and send it to the manufacturer
for repair.
TROUBLESHOOTING 11
8021219/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET
151
Subject to change without notice
