SICK microScan3 User Manual

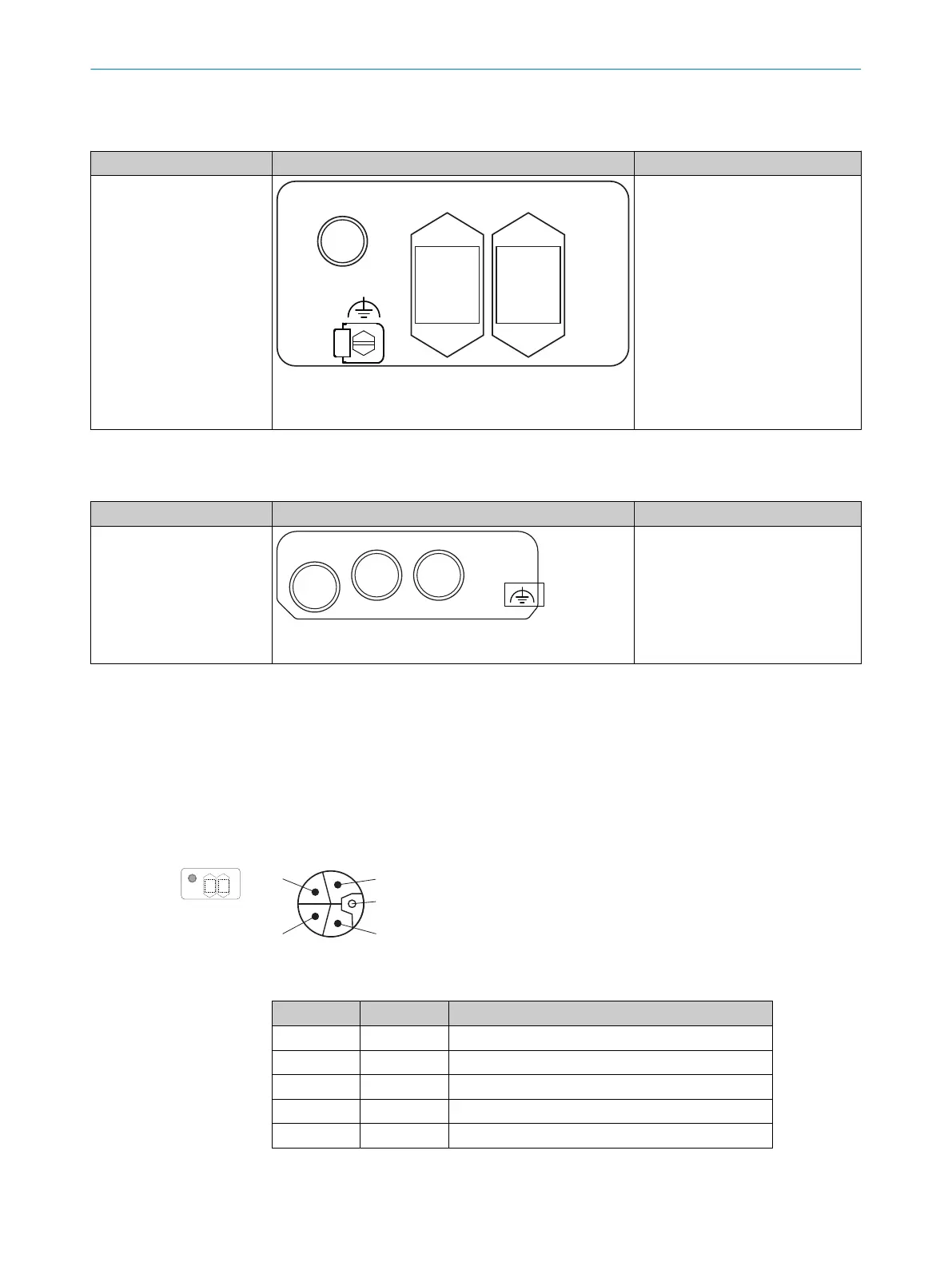

6.2.1 microScan3 – PROFINET (RJ45 / SCRJ)
Table 5: System plug and connections: microScan3 – PROFINET (RJ45 / SCRJ)
Safety laser scanner Suitable system plug Plug connector
microScan3 – PROFINET
(R
J45 / SCRJ)
FE
XD1
XF1 XF2
MICSX-CPNNZZZZ1 (part number: 2087905)
MICSX-CLNNZZZZ1 (part number: 2106404)
•
XD1: v
oltage supply, page 82
•
FE: Alternative FE connection,
page 83
•
XF1, XF2: 2 × Ethernet for
PROFINET PROFIsafe, data out‐
put, configuration, and diagnos‐
tics, page 83
6.2.2 microScan3 – PROFINET (M12)
Table 6: System plug and connections: microScan3 Pro – PROFINET (M12)
Safety laser scanner Suitable system plug Plug connector
microScan3 – PROFINET
(M12)
XF1 XF2
XD1
MICSX-BANNZZZZ1 (part number: 2086102)
•
XD1: v
oltage supply, page 82
•
XF1, XF2: 2 × Ethernet for
PROFINET PROFIsafe, data out‐
put, configuration, and diagnos‐
tics, page 83
•
Alternative FE connection,
page 83
6.3 Pin assignment
You will find the pin assignment for the individual plug connectors in the following.
6.3.1 Voltage supply (XD1)
microScan3 – PROFINET (RJ45 / SCRJ)
T
he voltage supply is supplied via a 5-pin, L-coded M12 male connector on the device
side.
4
2
3
5
1
Figure 51: Pin assignment of the voltage supply (male connector, M12, 5-pin, L-coded)
Table 7: Pin assignment of the voltage supply
Pin Marking Function
1 +24 V DC 24 V DC supply voltage
2 nc Not connected
3 0 V DC 0 V DC supply voltage
4 nc Not connected
5 FE Functional earth/shield
6 ELECTRICAL INSTALLATION
82
O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET 8021219/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Specifications

General

Scanning angle	275°
Power supply	24 V DC
Supply voltage	24 V DC ± 20%
Enclosure rating	IP65
Resolution	70 mm
Protective field range	5.5 m
Number of fields	128
Interface	Ethernet
Safety integrity level	SIL3
Performance level	PL e
Ambient temperature	+50°C
Scanning range	5.5 m
